389575-0001-E1 - Briggs & Stratton Vertical Engine Cylinder Head #1, Cylinder Head #2 Parts Diagram

Vertical Engine

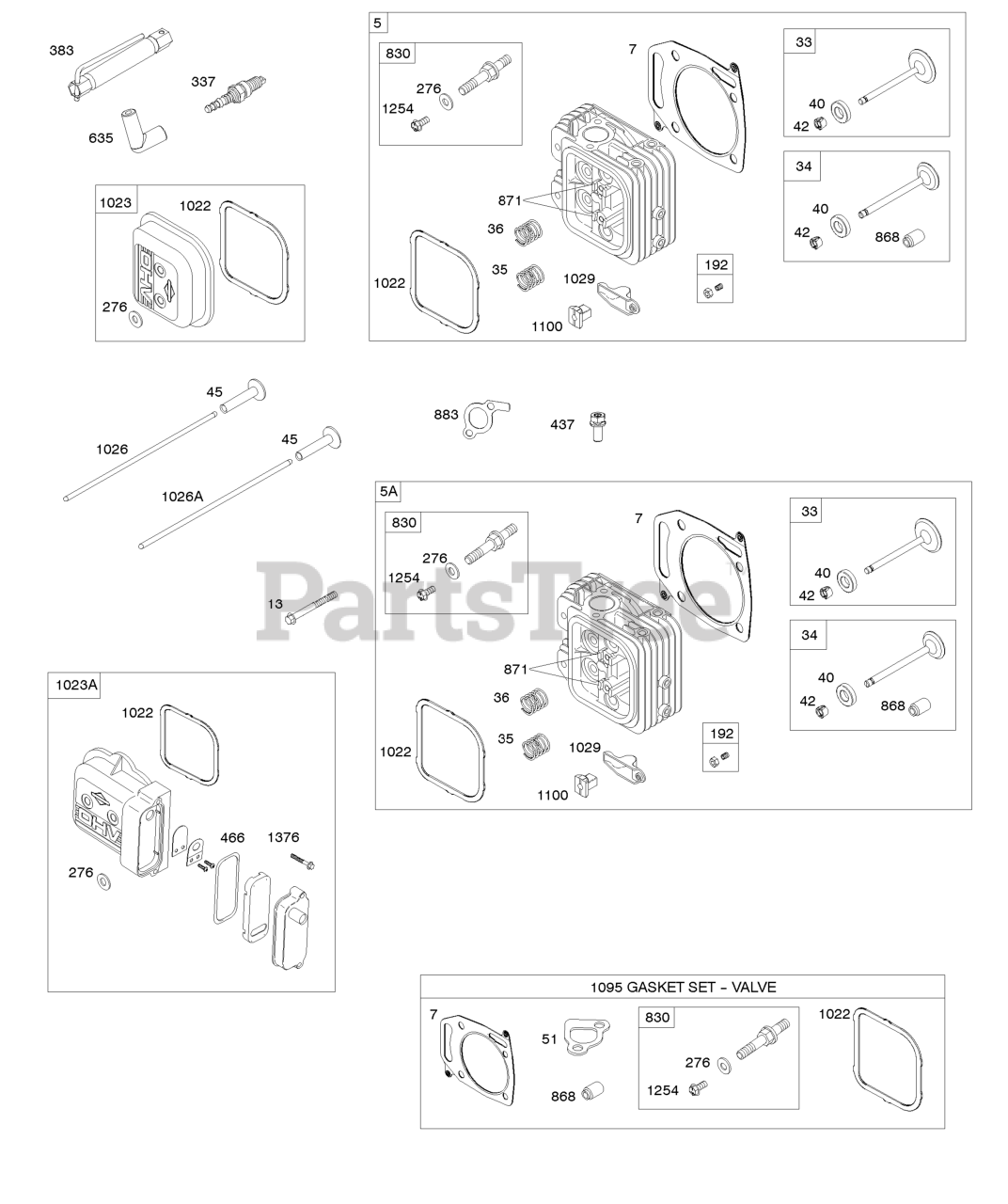

Cylinder Head #1, Cylinder Head #2 Parts Diagram

  • Title

5

Briggs & Stratton 842661

Head-Cylinder

Note: (Cylinder #1)

$272.99

$

Usually ships in 2-12 days

0

5A

Briggs & Stratton 842660

Head-Cylinder

Note: (Cylinder #2)

$272.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 842622

Gasket-Cylinder Head

$31.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 842618

Screw

Note: (Cylinder Head)

$4.49

$

In Stock, Qty 5

0

33

Briggs & Stratton 843752

Valve-Exhaust

$47.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 843751

Valve-Intake

$29.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 692084

Spring-Valve

Note: (Intake)

$6.49

$

In Stock, only 2 left!

0

36

Briggs & Stratton 809374

Spring-Valve

Note: (Exhaust)

$8.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 692058

Retainer-Valve

$5.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 807683

RETAINER, Valve

$6.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 843379

Tappet-Valve

$9.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 806418

Gasket-Intake

$3.99

$

In Stock, Qty 9

0

192

Briggs & Stratton 807623

Adjuster-Rocker Arm

$11.99

$

In Stock, only 1 left!

0

276

Briggs & Stratton 807085

Washer-Sealing

Note: (Rocker Cover)

$3.99

$

In Stock, Qty 10

0

337

Briggs & Stratton 692051

Plug-Spark
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 16

0

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, Qty 5

0

437

Briggs & Stratton 691902

Screw

Note: (Exhaust Manifold) (M8x20mm)

$3.49

$

In Stock, only 4 left!

0

466

Briggs & Stratton 806466

Seal-O Ring

Note: (Breather Assembly)

$10.99

$

In Stock, only 2 left!

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 8

0

830

Briggs & Stratton 809157

Stud-Rocker Arm

$6.99

$

In Stock, Qty 16

0

868

Briggs & Stratton 691963

SEAL, Valve

$10.99

$

In Stock, only 3 left!

0

871

Briggs & Stratton 692057

Bushing-Valve Guide
(Superseded to 84002672)

$12.99

$

In Stock, Qty 9

0

883

Briggs & Stratton 806425

Gasket-Exhaust

$5.49

$

In Stock, only 1 left!

0

1022

Briggs & Stratton 806039S

Gasket-Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 691494

Cover-Rocker

Note: (Cylinder #1)

$17.99

$

In Stock, only 1 left!

0

1023A

Briggs & Stratton 843750

Cover-Rocker

Note: (Cylinder #2)

$81.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 691836

Rod-Push

Note: (Intake)(Steel)

$12.99

$

In Stock, Qty 18

0

1026A

Briggs & Stratton 691758

Rod-Push

Note: (Exhaust)(Aluminum)

$11.99

$

In Stock, only 4 left!

0

1029

Briggs & Stratton 807323

ARM, Rocker

$12.99

$

In Stock, Qty 9

0

1095

Briggs & Stratton 841191

Gasket Set-Valve

$89.99

$

In Stock, only 1 left!

0

1100

Briggs & Stratton 791959

PIVOT, Rocker Arm

$6.99

$

Usually ships in 2-12 days

0

1254

Briggs & Stratton 807084

SCREW

Note: (Rocker Arm Stud)

$3.49

$

In Stock, Qty 13

0

1376

Briggs & Stratton 806421

SCREW

Note: (Breather Reed Cover)

$3.49

$

Usually ships in 2-12 days

0
