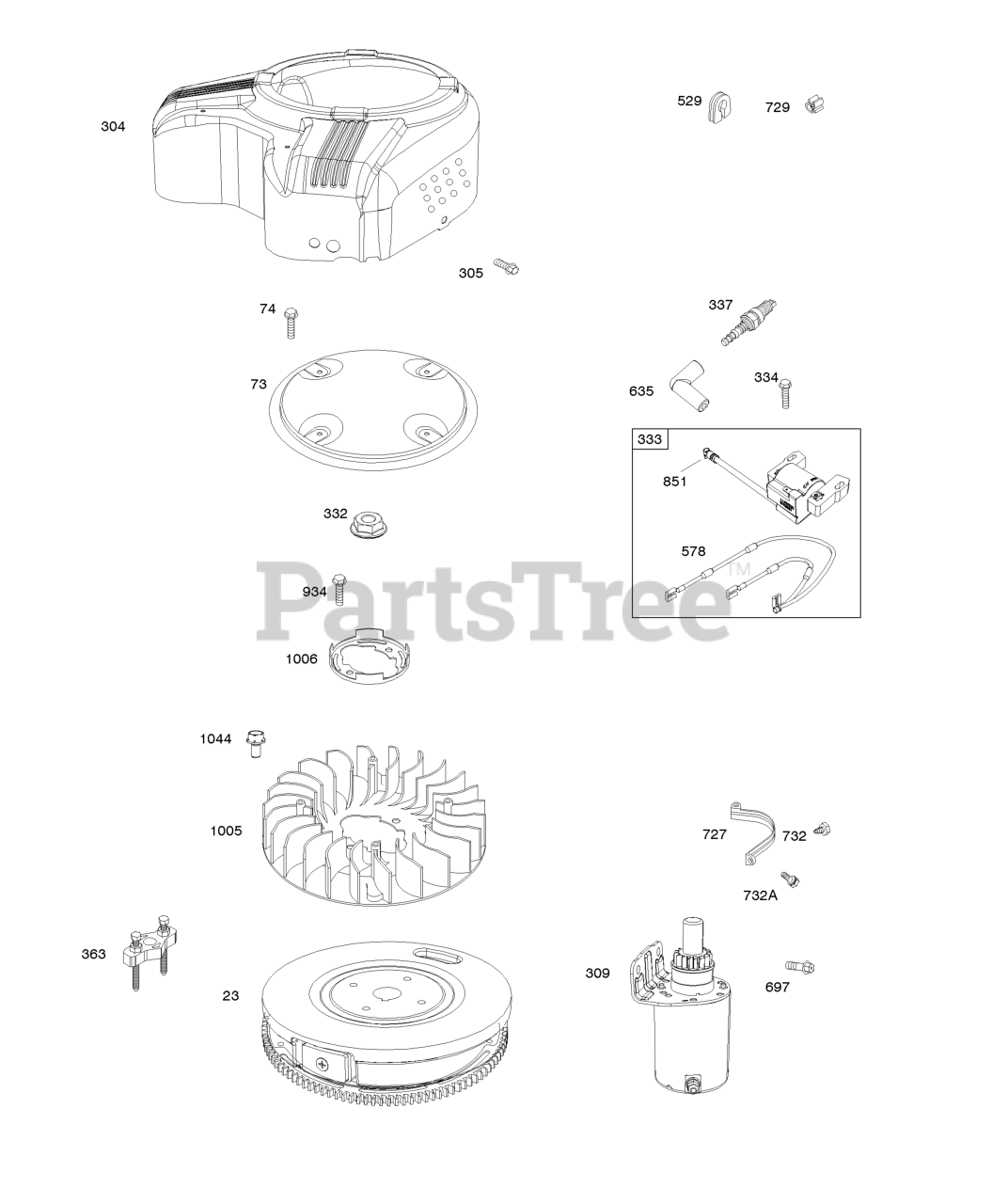

389575-0001-E1 - Briggs & Stratton Vertical Engine Flywheel, Blower Housing, Ignition Armature, Starter Parts Diagram

Vertical Engine

Flywheel, Blower Housing, Ignition Armature, Starter Parts Diagram

  • Title

23

Briggs & Stratton 842259

Flywheel

$273.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 841440

Screen-Rotating

$37.99

$

In Stock, only 1 left!

0

74

Briggs & Stratton 841441

Screw
(Superseded to 84007750)

Note: (Rotating Screen)

$3.99

$

In Stock, only 3 left!

0

304

Briggs & Stratton 842742

Housing-Blower

Note: (Oil Cooler)

$143.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 692056

Screw

Note: (Blower Housing) (M8x14mm)

$5.99

$

In Stock, Qty 5

0

309

Briggs & Stratton 844717

Motor-Starter

$90.99

$

In Stock, only 1 left!

0

332

Briggs & Stratton 690887

Nut

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 845606

Armature-Magneto
(Superseded to 84003819)

$71.99

$

In Stock, Qty 12

0

334

Briggs & Stratton 692066

Screw

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 11

0

337

Briggs & Stratton 692051

Plug-Spark
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 16

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

529

Briggs & Stratton 690744

Grommet

Note: (Magneto Armature Wires)

$7.49

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 844547

Wire Assembly

$17.99

$

In Stock, Qty 9

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 8

0

697

Briggs & Stratton 691902

Screw

Note: (Starter Motor) (Drive Cap)

$3.49

$

In Stock, only 4 left!

0

727

Briggs & Stratton 841313

Cover-Starter Drive

$16.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 690586

Clip-Wire

Note: (Snap In)(Nylon)

$3.99

$

In Stock, only 3 left!

0

732

Briggs & Stratton 690688

Screw

Note: (Starter Drive Cover) (Self Tap)

$3.49

$

Usually ships in 2-12 days

0

732A

Briggs & Stratton 841233

SCREW

Note: (Starter Drive Cover) (M6x10mm)

$3.49

$

In Stock, only 2 left!

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

934

Briggs & Stratton 692062

Screw

Note: (Fan Retainer) (M8x18mm)

$3.49

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 841439

Fan-Flywheel

$34.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 690452

Retainer-Fan

$10.99

$

Usually ships in 2-12 days

0

1044

Briggs & Stratton 692056

Screw

Note: (Flywheel)

$5.99

$

In Stock, Qty 5

0
