389575-0003-E1 - Briggs & Stratton Vertical Engine Carburetor and Fuel Supply Group Parts Diagram

Vertical Engine

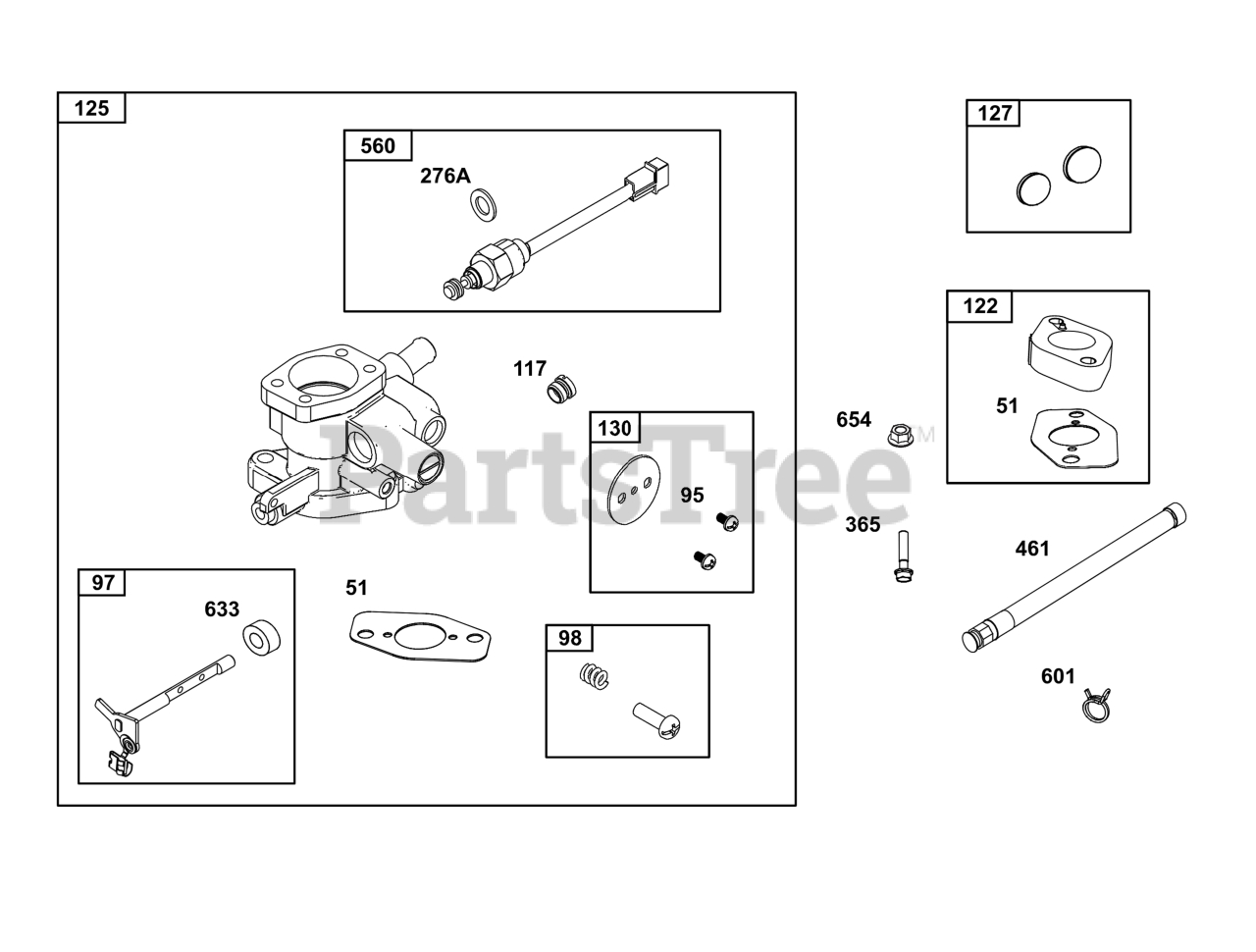

Carburetor and Fuel Supply Group Parts Diagram

  • Title

51

GASKET, Intake

$

$

Not available

95

Briggs & Stratton 690718

SCREW

$5.99

$

In Stock, only 1 left!

0

97

Briggs & Stratton 808397

SHAFT, Throttle

$38.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 808177

KIT, Idle Speed

$13.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 846654

JET, Main

Note: (Standard) (Standard)

$23.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 846663

SPACER, Carburetor

$13.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 846653

CARBURETOR

Note: (Gaseous Mixer)(With Solenoid)

$371.99

$

In Stock, only 1 left!

0

127

Briggs & Stratton 806460

PLUG, Welch

$10.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 806132

VALVE, Throttle
(Superseded to 84003952)

$15.99

$

Usually ships in 2-12 days

0

276A

Briggs & Stratton 693497

WASHER, Sealing

$7.99

$

Usually ships in 2-12 days

0

365

Briggs & Stratton 690711

SCREW

Note: (Carburetor/Throttle Body) (Carburetor/Mixer)

$6.99

$

Usually ships in 2-12 days

0

461

Briggs & Stratton 312079GS

HOSE, Gaseous Fuel

$77.99

$

Usually ships in 2-12 days

0

560

Briggs & Stratton 808693

SWITCH, LP/NG Fuel

$159.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 843438

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

633

Briggs & Stratton 806131

SEAL, Choke/Throttle Shaft

Note: (Throttle Shaft)

$5.99

$

Usually ships in 2-12 days

0

654

Briggs & Stratton 690939

NUT

Note: (Carburetor)

$3.49

$

In Stock, only 2 left!

0
