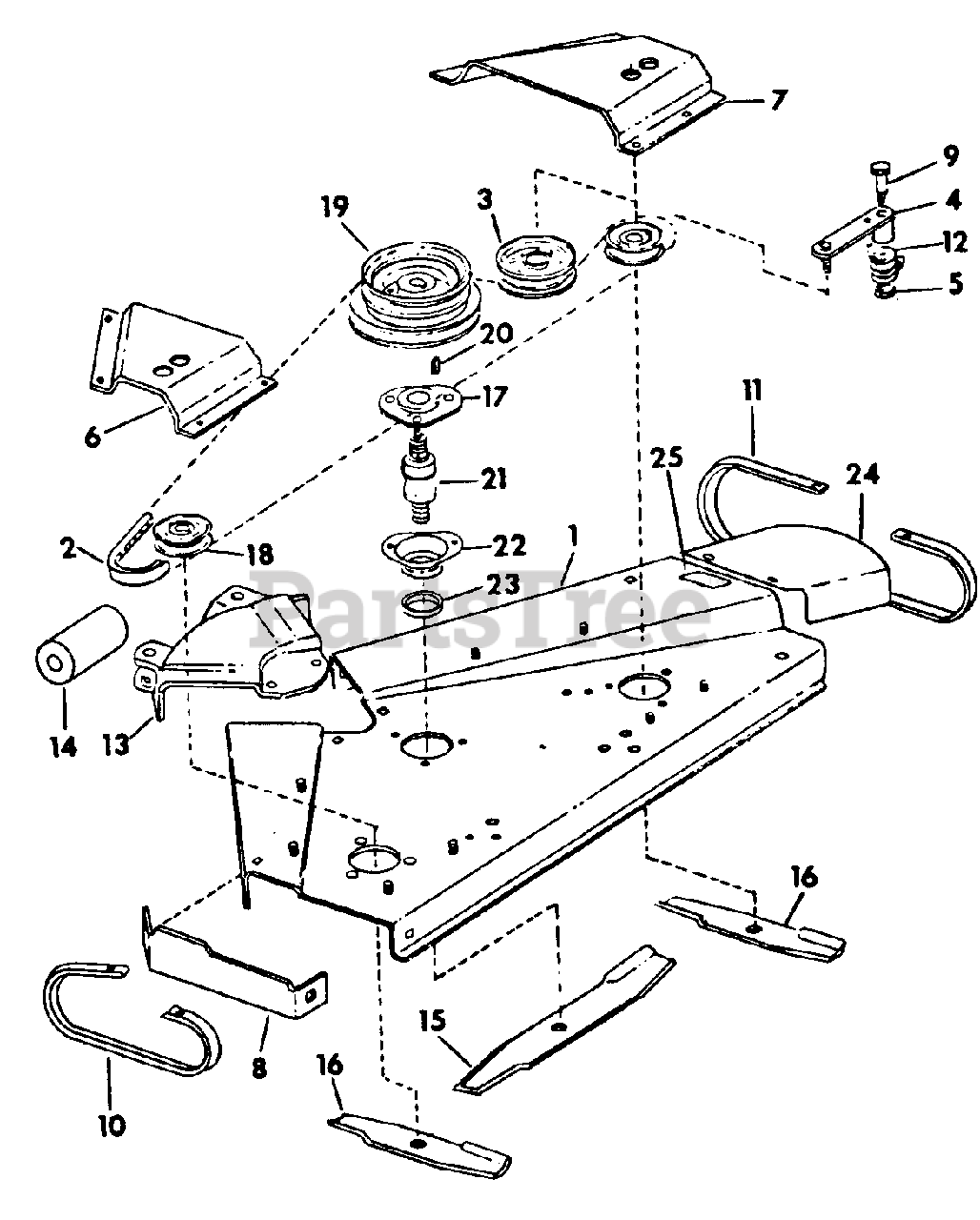

38C - Cub Cadet 38" Mower Deck Mower Housing Parts Diagram

38" Mower Deck

Mower Housing Parts Diagram

  • Title

1

Cub Cadet 489-336-R5

Housing Assy w/Product Graphic, Rotor

$

$

Currently unavailable

Cub Cadet IH-172451

Screw, 5/16 X 5/8 H/Hd Tap
(Superseded to 710-3021)

$

$

Not available

Cub Cadet 18-494-R1

Bolt, 3/8 X 1 Type 1

$

$

Currently unavailable

2

Cub Cadet 473-468-R2

Belt, Spindle Drive -38 In. Blade

$

$

Currently unavailable

3

Cub Cadet 542-520-R91

Pulley, Flat Idler

$

$

Currently unavailable

4

Cub Cadet 548-457-R1

Arm Assy, Idler

$

$

Currently unavailable

5

Cub Cadet 385-525-R1

Nut, Center Lock

$

$

Currently unavailable

6

Cub Cadet 489-342-R2

Shield, Belt LH

$

$

Currently unavailable

Cub Cadet IH-120214

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

Nut, 5/16 Type 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 489-343-R1

Shield, Belt RH

$

$

Currently unavailable

Cub Cadet IH-120214

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

Nut, 5/16 Type 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 489-344-R2

Side, Housing LH

$

$

Currently unavailable

Cub Cadet 18-508-R1

Bolt, 3/8 X 3/4 Crg Type 1

$

$

Currently unavailable

Cub Cadet IH-120382

Washer, 3/8 Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8 Type 5
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 486-360-R1

Bolt, Idler Arm Pivot

$

$

Currently unavailable

10

Cub Cadet 548-273-R1

Runner, Mower LH

$

$

Currently unavailable

Cub Cadet 22-476-R1

Bolt, 3/8 X 1-1/8 Crg Type 1

$

$

Currently unavailable

Cub Cadet IH-120382

Washer, 3/8 Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8 Type 5
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 548-274-R1

Runner, Mower RH

$

$

Currently unavailable

Cub Cadet 22-476-R1

Bolt, 3/8 X 1-1/8 Crg Type 1

$

$

Currently unavailable

Cub Cadet IH-120382

Washer, 3/8 Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8 Type 5
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 548-458-R1

Spring, Torsion

$

$

Currently unavailable

Cub Cadet IH-120383

Washer, 7/16 Lock
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-271501

Nut, 7/16 Type 5
(Superseded to 912-3019)

$6.49

$

In Stock, only 4 left!

0

Cub Cadet 21-904-R1

Washer, .469 X .875 X .105

$

$

Currently unavailable

Cub Cadet 24-764-R1

Nut, 3/8 P/T Lock Type 5

$

$

Currently unavailable

Cub Cadet 150-031-C1

Screw, 3/8 X 3/84 Znp Slt-Truss-Hd

$

$

Currently unavailable

13

Cub Cadet 489-349-R3

Housing, Center

$

$

Currently unavailable

Cub Cadet 17-351-R1

Bolt, 3/8 X 1 Crg Type 1

$

$

Currently unavailable

Cub Cadet 21-741-R1

Washer, .406 X .875 X .105

$

$

Currently unavailable

Cub Cadet IH-120377

Nut, 3/8 Type 5
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 489-470-R1

Roller, Front

$

$

Currently unavailable

Cub Cadet 27-358-R1

Pin, 1/2 X 7 Hd Type 1

$

$

Currently unavailable

Cub Cadet 18-481-R1

Pin, 3/16 X 1 Cot

$

$

Currently unavailable

Cub Cadet HI-120396

Washer, .531 X 1.062 X .074

$

$

Currently unavailable

15

Cub Cadet 490-476-R1

Blade, Center -Hard Surfaced

$

$

Currently unavailable

Cub Cadet 487-761-R1

Blade, Center -Standard

$

$

Currently unavailable

Cub Cadet 477-243-R1

Washer, .781 X 2.000 X .054

$

$

Currently unavailable

16

Cub Cadet 490-470-R1

Blade, Outer -Hard Surfaced

$

$

Currently unavailable

Cub Cadet 473-427-R3

Blade, Outer -Standard

$

$

Currently unavailable

Cub Cadet 575-814-R1

Washer, .781 X 2.000 X .105 Pln

$

$

Currently unavailable

17

Cub Cadet 492-105-R1

Cap, Spindle Housing

$

$

Currently unavailable

18

Cub Cadet 473-432-R91

Pulley, Outer

$

$

Currently unavailable

19

Cub Cadet 144-408-C1

Pulley, Center

$

$

Currently unavailable

20

Cub Cadet IH-218211

Key, 1/4 X 3/4 Woodruff
(Superseded to 914-0135)

$

$

Not available

Cub Cadet 102-609-R1

Nut, 3/4-Nf P/T Lock Type 5

$

$

Currently unavailable

21

Cub Cadet IH-ST745

Bearing, Ball
(Superseded to 759-3479P)

$307.99

$

Usually ships in 3-6 days

0

Cub Cadet 426-639

Nut, 3/4-Nf Type 8

$

$

Currently unavailable

Cub Cadet 575-814-R1

Washer, .781 X 2.000 X .105 Pln

$

$

Currently unavailable

22

Cub Cadet 492-106-R1

Housing, Spindle

$

$

Currently unavailable

Cub Cadet 495-967-R1

Bolt, 3/8 X 1 Crg Type 5

$

$

Currently unavailable

Cub Cadet IH-120377

Nut, 3/8 Type 5
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120382

Washer, 3/8 Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

23

Cub Cadet 492-108-R1

Cup, Spindle

$

$

Currently unavailable

24

Cub Cadet 58-455-C1

Deflector

$

$

Currently unavailable

Cub Cadet IH-180077

Bolt, 5/16 X 3/4 Type 5
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

Washer, .344 X .688 X .051
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-120376

Nut, 5/16 Type 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 57-801-C2

Product Graphic, Caution

$

$

Currently unavailable
