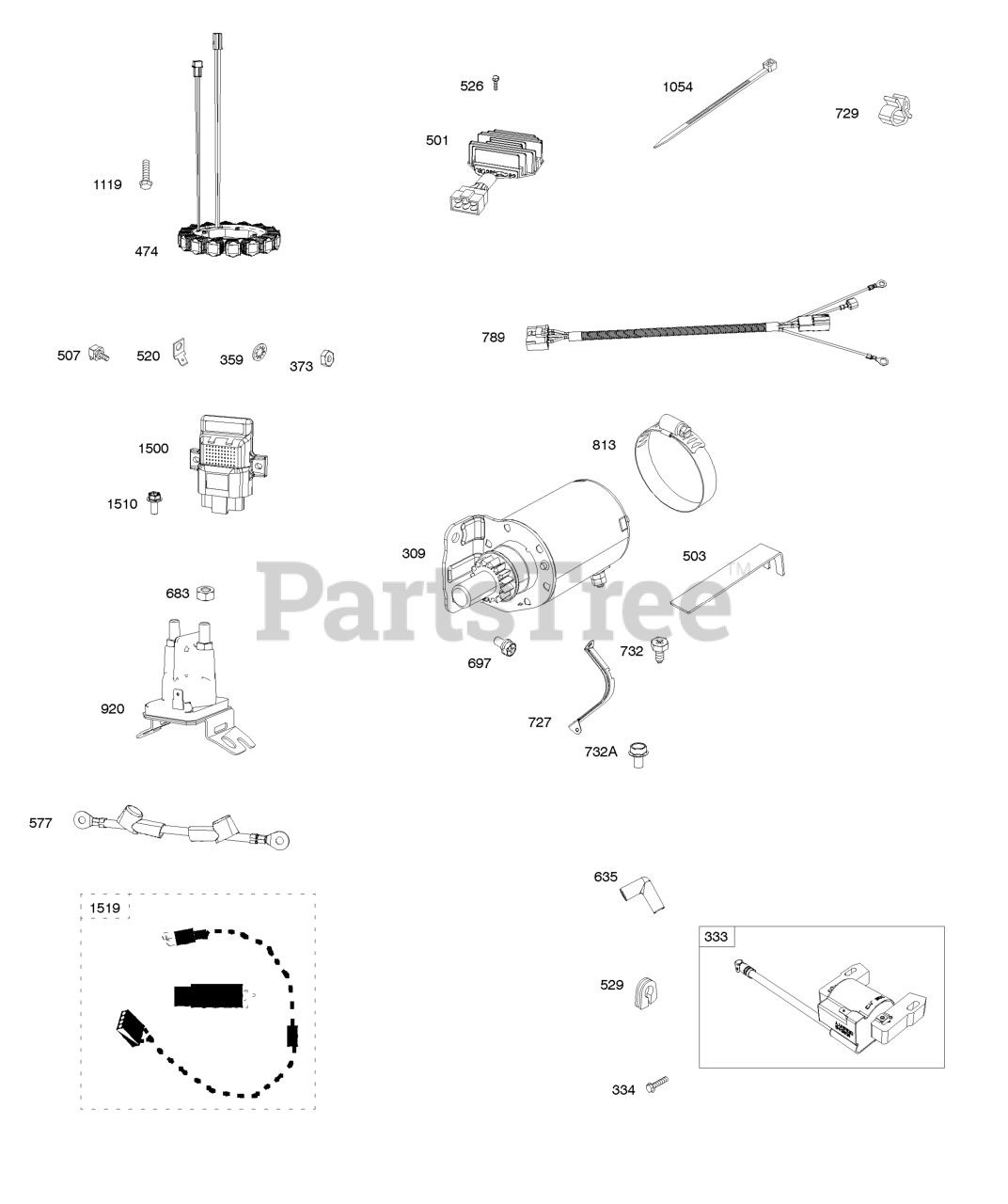

38E347-0001-B1 - Briggs & Stratton Horizontal Engine Alternator, Regulator, Electric Starter, Armature Parts Diagram

Horizontal Engine

Alternator, Regulator, Electric Starter, Armature Parts Diagram

  • Title

309

Briggs & Stratton 844717

Motor-Starter

$90.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 845606

Armature-Magneto
(Superseded to 84003819)

Note: (Cylinders #1 and #2)

$71.99

$

In Stock, Qty 12

0

334

Briggs & Stratton 692066

Screw

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 11

0

359

Briggs & Stratton 691077

Washer

Note: (Ground Terminal)

$3.49

$

Usually ships in 2-12 days

0

373

Briggs & Stratton 845823

Nut

Note: (Ground Terminal)

$4.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 847135

Alternator

Note: (7/16 AMP)

$110.99

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 846929

Regulator

Note: (16 Amp)

$94.99

$

Usually ships in 2-12 days

0

503

Briggs & Stratton 845016

Strap-Starter

$5.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 691972

Insulator

$8.49

$

In Stock, Qty 6

0

520

Briggs & Stratton 691084

Terminal-Ground

$6.49

$

In Stock, only 2 left!

0

526

Briggs & Stratton 691547

Screw

Note: (Regulator)

$5.99

$

In Stock, only 1 left!

0

529

Briggs & Stratton 690744

Grommet

Note: (Magneto Armature Wires)

$7.49

$

Usually ships in 2-12 days

0

577

Briggs & Stratton 690795

CABLE, Starter

$18.99

$

In Stock, only 1 left!

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 8

0

683

Briggs & Stratton 691029

NUT

Note: (Starter Solenoid)

$5.49

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 691902

Screw

Note: (Starter Motor) (Drive Cap)

$3.49

$

In Stock, only 4 left!

0

727

Briggs & Stratton 841313

Cover-Starter Drive

$16.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 690586

Clip-Wire

$3.99

$

In Stock, only 3 left!

0

732

Briggs & Stratton 690688

Screw

Note: (Starter Drive Cover) (Self-Tap) (8mm)

$3.49

$

Usually ships in 2-12 days

0

732A

Briggs & Stratton 841233

SCREW

Note: (Starter Drive Cover) (M6x10mm)

$3.49

$

In Stock, only 2 left!

0

789

Briggs & Stratton 847023

Harness-Wiring

$85.99

$

Usually ships in 2-12 days

0

813

Briggs & Stratton 690635

CLAMP

$24.99

$

Usually ships in 2-12 days

0

920

Briggs & Stratton 846820

SOLENOID, Starter

$30.99

$

In Stock, Qty 5

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691552

SCREW

Note: (Alternator)

$3.99

$

In Stock, only 2 left!

0

1500

Briggs & Stratton 847532

Module-Electronic Control

Note: (Not Programmed) (Not Programmed)

$358.99

$

Usually ships in 2-12 days

0

1510

Briggs & Stratton 807084

SCREW

Note: (Electronic Control Module)

$3.49

$

In Stock, Qty 13

0

1519

Cable/Software-Diagnostic

Note: (Not Available At This Printing)

$

$

Not available
