38E347-0001-B1 - Briggs & Stratton Horizontal Engine Engine/Valve Gasket Sets, Power Source Harness Parts Diagram

Horizontal Engine

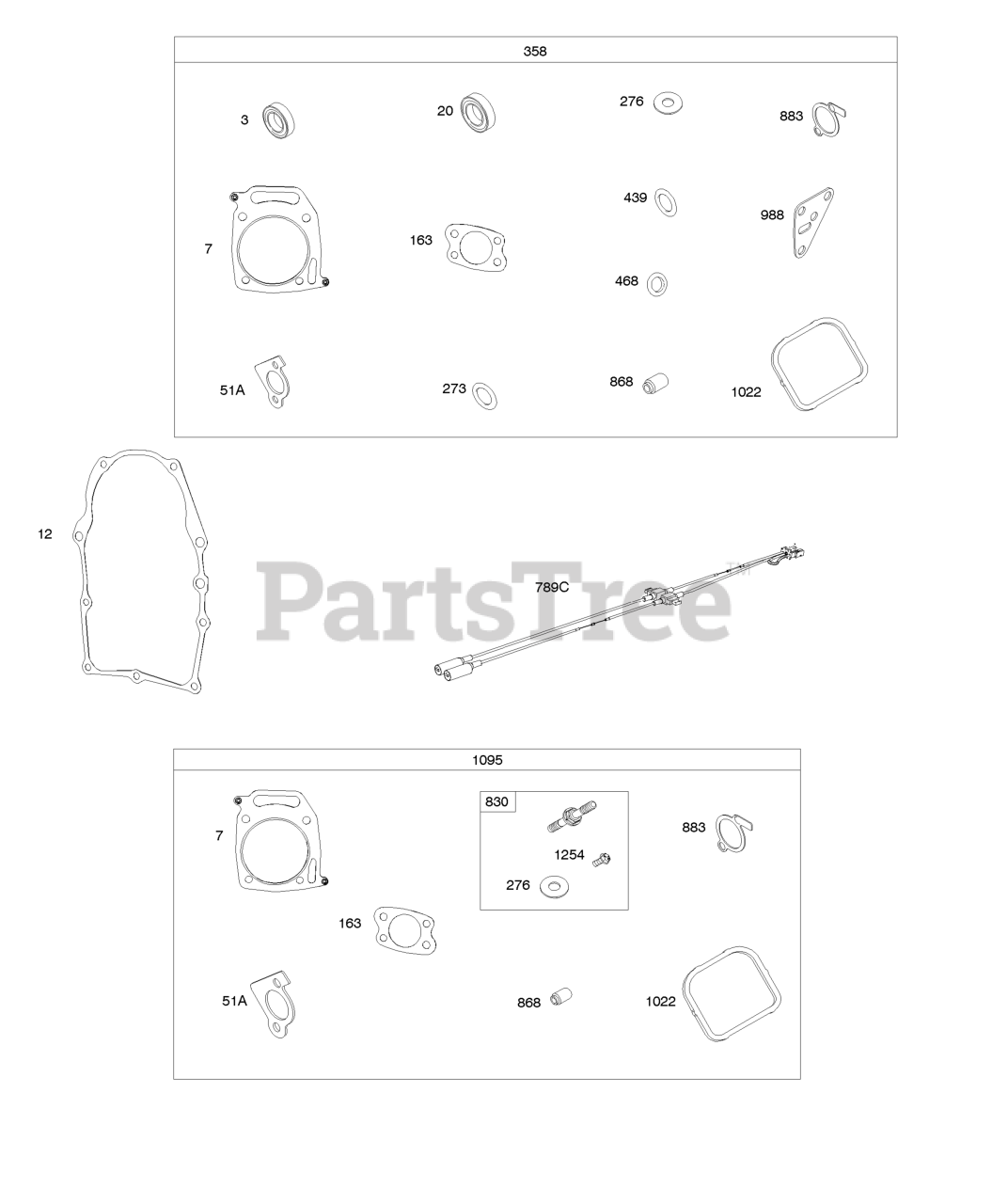

Engine/Valve Gasket Sets, Power Source Harness Parts Diagram

  • Title

3

Briggs & Stratton 805101S

Seal-Oil
(Superseded to 845659)

Note: (Magneto Side)

$13.99

$

In Stock, Qty 10

0

7

Briggs & Stratton 842622

Gasket-Cylinder Head
(Superseded to 84006734)

$34.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 846487

Gasket-Crankcase

$43.99

$

In Stock, Qty 8

0

20

Briggs & Stratton 805049S

Seal-Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 806418

Gasket-Intake

Note: (Intake Manifold to Cylinder Head)

$3.99

$

In Stock, Qty 6

0

163

Briggs & Stratton 692081

Gasket-Air Cleaner

$5.99

$

In Stock, Qty 17

0

273

Briggs & Stratton 690681

Seal-O Ring

Note: (Oil Pump)

$6.49

$

In Stock, only 2 left!

0

276

Briggs & Stratton 807085

Washer-Sealing

Note: (Rocker Cover)

$3.99

$

In Stock, Qty 10

0

358

Briggs & Stratton 842658

Gasket Set-Engine

Note: (Some Components Used Within This Service Kit Are Not Used On ThisEngine)

$146.99

$

In Stock, only 2 left!

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, Qty 18

0

468

Briggs & Stratton 690690

SEAL, O-Ring

Note: (Oil Pump Screen)

$6.49

$

Usually ships in 2-12 days

0

789C

Briggs & Stratton 847252

Harness-Wiring

Note: (Power Source Cord)

$115.99

$

Usually ships in 2-12 days

0

830

Briggs & Stratton 809157

Stud-Rocker Arm

$7.49

$

In Stock, only 2 left!

0

868

Briggs & Stratton 691963

SEAL, Valve

Note: (Intake Valve)

$11.99

$

In Stock, only 4 left!

0

883

Briggs & Stratton 806425

Gasket-Exhaust

$5.49

$

In Stock, Qty 20+

0

988

Briggs & Stratton 692063

Gasket-Oil Adapter

$4.49

$

In Stock, Qty 14

0

1022

Briggs & Stratton 806039S

Gasket-Rocker Cover

$5.49

$

In Stock, Qty 20+

0

1095

Briggs & Stratton 842662

Gasket Set-Valve
(Superseded to 84006736)

Note: (Some Components Used Within This Service Kit Are Not Used On ThisEngine)

$80.99

$

In Stock, Qty 9

0

1254

Briggs & Stratton 807084

SCREW

Note: (Rocker Arm Stud) (M6x14mm)

$3.99

$

In Stock, only 1 left!

0
