38E347-0001-B1 - Briggs & Stratton Horizontal Engine Fuel Pump, Fuel Module, Fuel Hoses, Fuel Filter Parts Diagram

Horizontal Engine

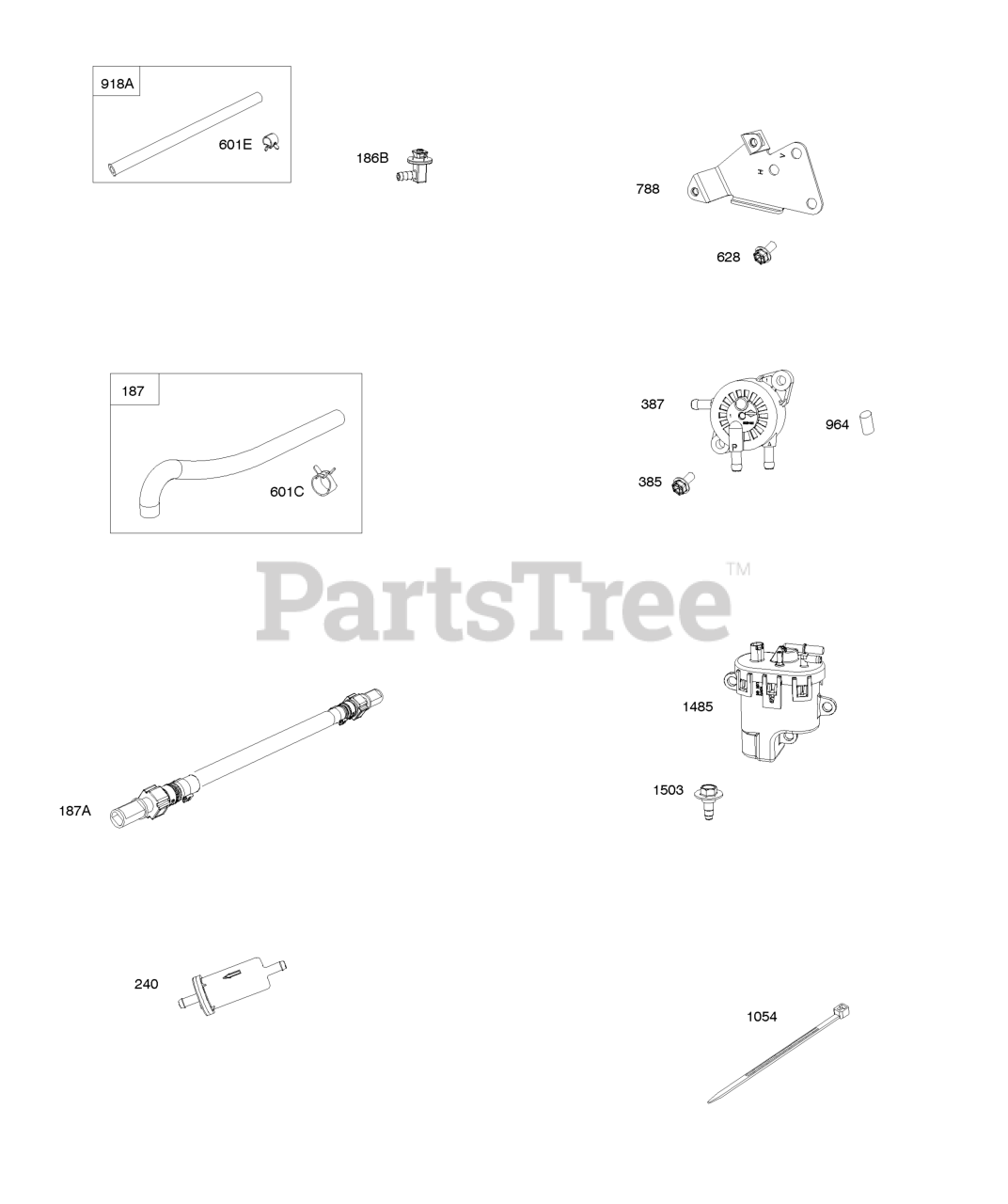

Fuel Pump, Fuel Module, Fuel Hoses, Fuel Filter Parts Diagram

  • Title

186B

Briggs & Stratton 845141

CONNECTOR, Hose

$10.99

$

In Stock, Qty 5

0

187

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed)(Cut To Required Length)

$14.99

$

In Stock, only 1 left!

0

187A

Briggs & Stratton 847136

Line-Fuel

$95.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump)

$3.49

$

In Stock, Qty 13

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

Usually ships in 2-12 days

0

601C

Briggs & Stratton 691038

CLAMP, Hose

Note: (Black)

$3.99

$

In Stock, Qty 10

0

601E

Briggs & Stratton 593879

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

628

Briggs & Stratton 806660

Screw

Note: (Fuel Pump Bracket)

$3.99

$

In Stock, only 1 left!

0

788

Briggs & Stratton 691559

Bracket-Fuel Pump

$24.99

$

In Stock, only 2 left!

0

918A

Briggs & Stratton 847141

Hose-Vacuum

Note: (Vapor Separator Tank)

$10.99

$

Usually ships in 2-12 days

0

964

Briggs & Stratton 590799

CAP, Connector

$9.49

$

In Stock, only 1 left!

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1485

Briggs & Stratton 593890

MODULE, Fuel

$411.99

$

In Stock, only 1 left!

0

1503

Briggs & Stratton 594618

SCREW

Note: (Fuel Module) (1/4-20x.5)

$3.99

$

Usually ships in 2-12 days

0
