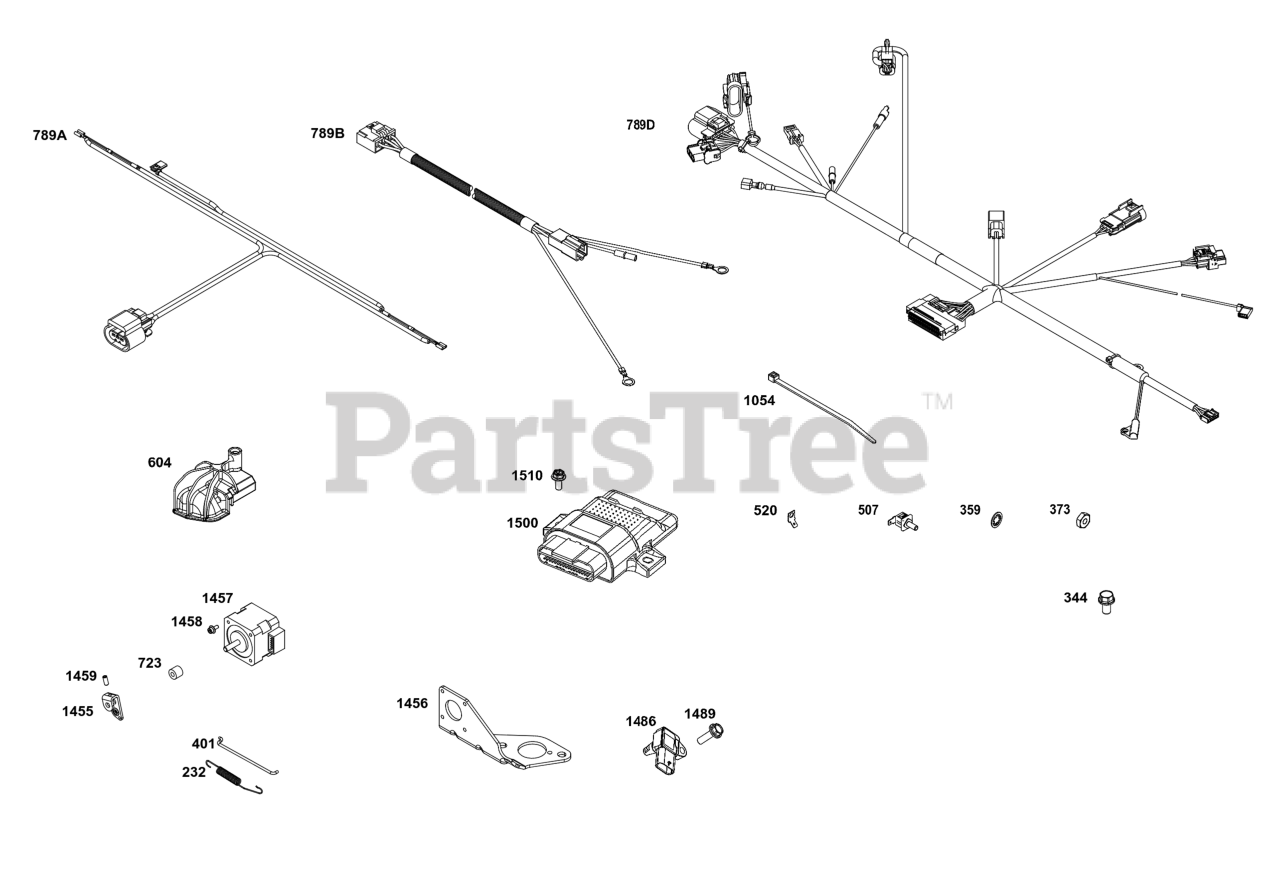

38E347-0014-B5 - Briggs & Stratton Horizontal Engine Controls Group Parts Diagram

Horizontal Engine

Controls Group Parts Diagram

  • Title

232

Briggs & Stratton 847470

SPRING-GOVERNOR

$6.99

$

Usually ships in 2-12 days

0

344

Briggs & Stratton 692056

SCREW

Note: (Cable Clamp) (M8x14mm)

$5.99

$

In Stock, only 4 left!

0

359

Briggs & Stratton 691077

WASHER

Note: (Ground Terminal)

$3.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 845823

NUT
(Superseded to 703460)

Note: (Ground Terminal)

$3.99

$

In Stock, Qty 7

0

401

Briggs & Stratton 845814

LINK, Actuator

$11.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 691972

INSULATOR

$9.49

$

In Stock, only 4 left!

0

520

Briggs & Stratton 691084

TERMINAL, Ground

$6.99

$

Usually ships in 2-12 days

0

604

Briggs & Stratton 84001958

COVER, Control

Note: Stepper Motor

$34.99

$

Usually ships in 2-12 days

0

723

Briggs & Stratton 845818

SEAL, Foam

$18.99

$

Usually ships in 2-12 days

0

789A

Briggs & Stratton 847176

HARNESS, Wiring

$50.99

$

Usually ships in 2-12 days

0

789B

Briggs & Stratton 847023

HARNESS, Wiring

$94.99

$

Usually ships in 2-12 days

0

789D

Briggs & Stratton 847499

HARNESS, Wiring

$368.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

TIE, Cable

$4.49

$

Usually ships in 2-12 days

0

1455

Briggs & Stratton 845813

LEVER, Actuator

$24.99

$

Usually ships in 2-12 days

0

1456

Briggs & Stratton 845815

BRACKET, Mounting

$78.99

$

Usually ships in 2-12 days

0

1457

Briggs & Stratton 847142

MOTOR, Stepper

$

$

Not available

1458

Briggs & Stratton 845812

SCREW

Note: (Stepper Motor) (M3x8mm)

$4.99

$

Usually ships in 2-12 days

0

1459

Briggs & Stratton 845820

SCREW

$4.99

$

Usually ships in 2-12 days

0

1486

Briggs & Stratton 593905

SENSOR, Temperature/Manifold Absolute Pressure (MAP)

$141.99

$

Usually ships in 2-12 days

0

1489

Briggs & Stratton 193626GS

SCREW

Note: (Temperature/Manifold Air Pressure Sensor) (TEMP/MAP Sensor) (Intake Manifold)

$3.99

$

Usually ships in 2-12 days

0

1500

Briggs & Stratton 84001977

MODULE, Electronic Control

Note: (Not Programmed)

$299.99

$

Usually ships in 2-12 days

0

1510

Briggs & Stratton 807084

SCREW

Note: (Electronic Control Module) (M6x14mm)

$3.99

$

In Stock, only 2 left!

0
