38E347-0016-G1 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

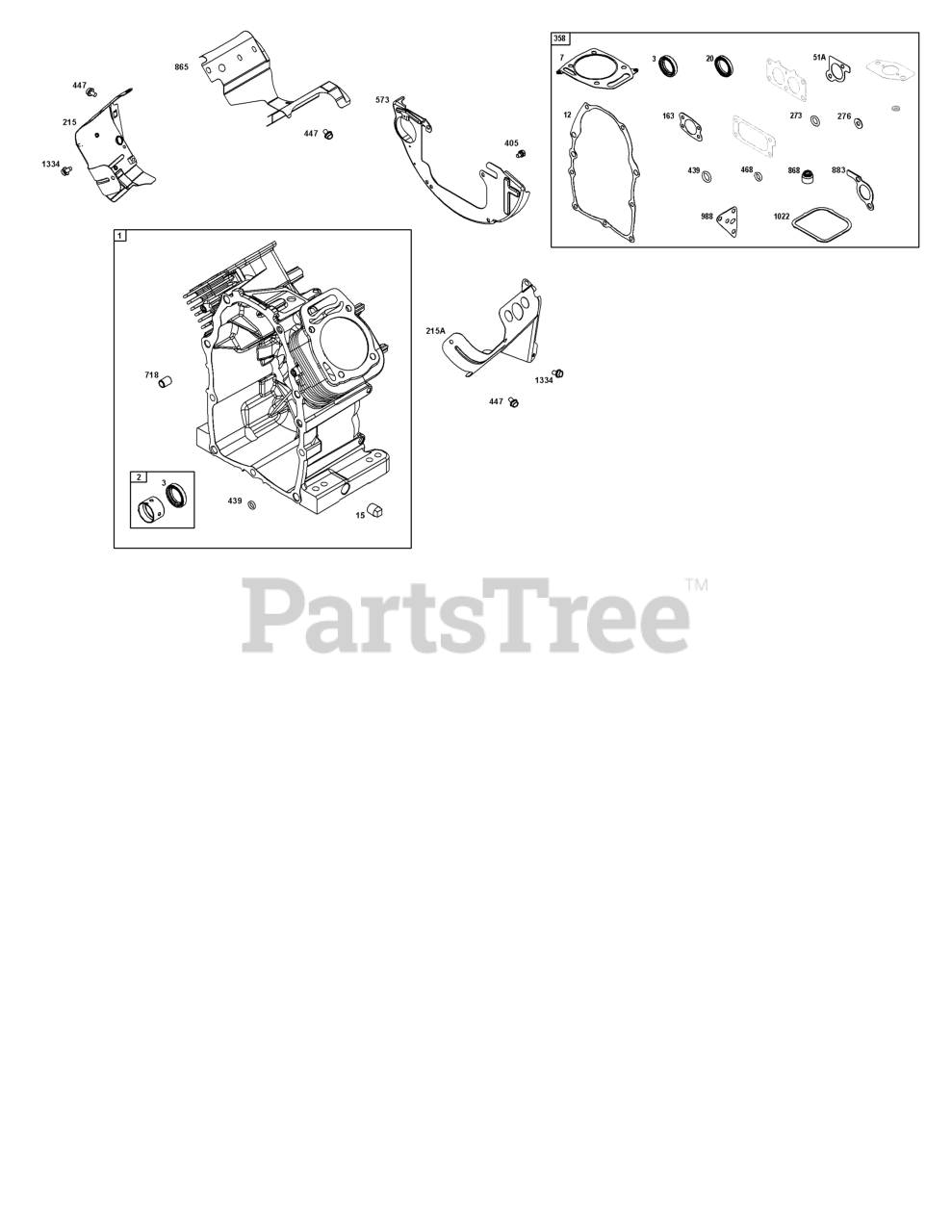

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 842603

CYLINDER ASSEMBLY

$1088.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 808534

KIT, Bushing/Seal
(Superseded to 84013005)

Note: (Magneto Side)

$10.99

$

In Stock, only 3 left!

0

3

Briggs & Stratton 845659

SEAL, Oil

Note: (Magneto Side)

$13.99

$

In Stock, Qty 12

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

15

Briggs & Stratton 690946

PLUG, Oil Drain

$6.49

$

In Stock, Qty 8

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

215

Briggs & Stratton 841183

GUIDE, Air

Note: (Cylinder #1)

$44.99

$

Usually ships in 2-12 days

0

215A

Briggs & Stratton 841182

GUIDE, Air

Note: (Cylinder #2)

$38.99

$

Usually ships in 2-12 days

0

273

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

276

WASHER, Sealing

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

358

Briggs & Stratton 842658

GASKET SET, Engine
(Superseded to 84006735)

$124.99

$

Usually ships in 2-12 days

0

405

Briggs & Stratton 807163

SCREW

Note: (Back Plate)

$4.49

$

Usually ships in 2-12 days

0

439

O-RING, Oil Gallery

Note: (Part information located in Lubrication Group.)

$

$

Not available

447

Briggs & Stratton 841233

SCREW

Note: (Air Guide Cover)

$3.99

$

In Stock, Qty 20+

0

468

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

573

Briggs & Stratton 841314

PLATE, Back

$27.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 806469

PIN, Locating

$6.49

$

Usually ships in 2-12 days

0

865

Briggs & Stratton 843768

COVER, Air Guide

$43.99

$

Usually ships in 2-12 days

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

988

GASKET, Oil Adapter

Note: (Part information located in Lubrication Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1334

Briggs & Stratton 841233

SCREW

Note: (Air Guide)

$3.99

$

In Stock, Qty 20+

0
