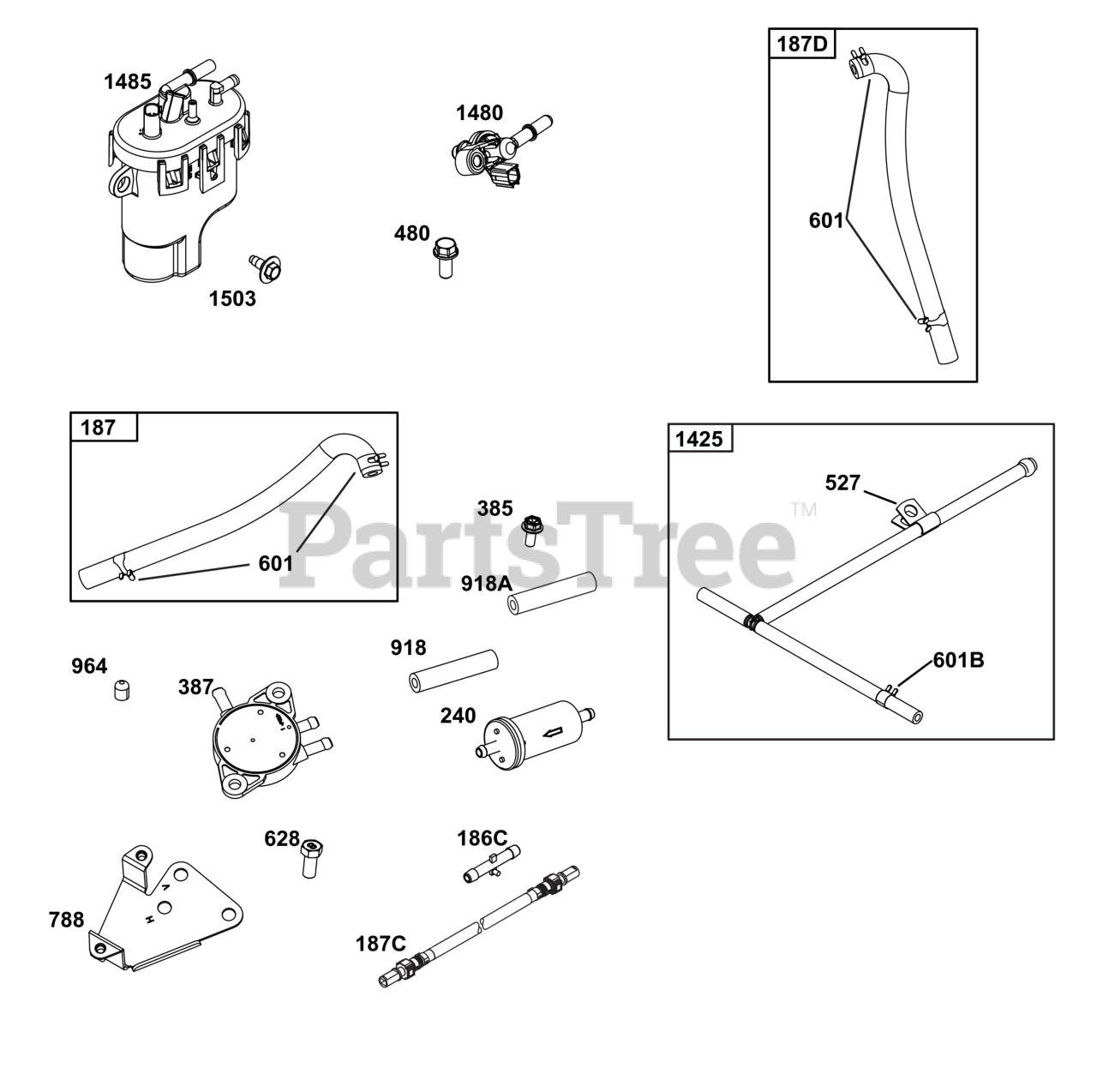

38E347-0020-G1 - Briggs & Stratton Horizontal Engine Fuel Supply Group Parts Diagram

Horizontal Engine

Fuel Supply Group Parts Diagram

  • Title

187

Briggs & Stratton 846584

LINE, Fuel

$

$

Not available

186C

Briggs & Stratton 845121

CONNECTOR, Hose

$6.49

$

Usually ships in 2-12 days

0

187D

Briggs & Stratton 791744

LINE, Fuel

$14.99

$

In Stock, Qty 10

0

187C

Briggs & Stratton 847136

LINE, Fuel

$95.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump)

$3.49

$

In Stock, only 2 left!

0

387

Briggs & Stratton 597338

PUMP, Fuel

$27.99

$

In Stock, Qty 20+

0

480

Briggs & Stratton 692062

SCREW

Note: (Tube Clamp)

$3.49

$

In Stock, Qty 6

0

527

Briggs & Stratton 845268

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

601B

Briggs & Stratton 593879

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

628

Briggs & Stratton 806660

SCREW

Note: (Fuel Pump Bracket)

$3.99

$

In Stock, only 1 left!

0

788

Briggs & Stratton 691559

BRACKET, Fuel Pump

$24.99

$

In Stock, only 1 left!

0

918

Briggs & Stratton 791880

HOSE, Vacuum
(Superseded to 791760)

$9.49

$

Usually ships in 2-12 days

0

918A

Briggs & Stratton 847141

HOSE, Vacuum

$

$

Not available

964

Briggs & Stratton 590799

CAP, Connector

$9.49

$

Usually ships in 2-12 days

0

1425

Briggs & Stratton 847556

HOSE, Purge Line

$31.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 846618

INJECTOR, Fuel

$136.99

$

Usually ships in 2-12 days

0

1485

Briggs & Stratton 84006568

MODULE, Fuel

$371.99

$

Usually ships in 2-12 days

0

1503

Briggs & Stratton 594618

SCREW

Note: (Fuel Module)

$3.99

$

In Stock, Qty 20+

0
