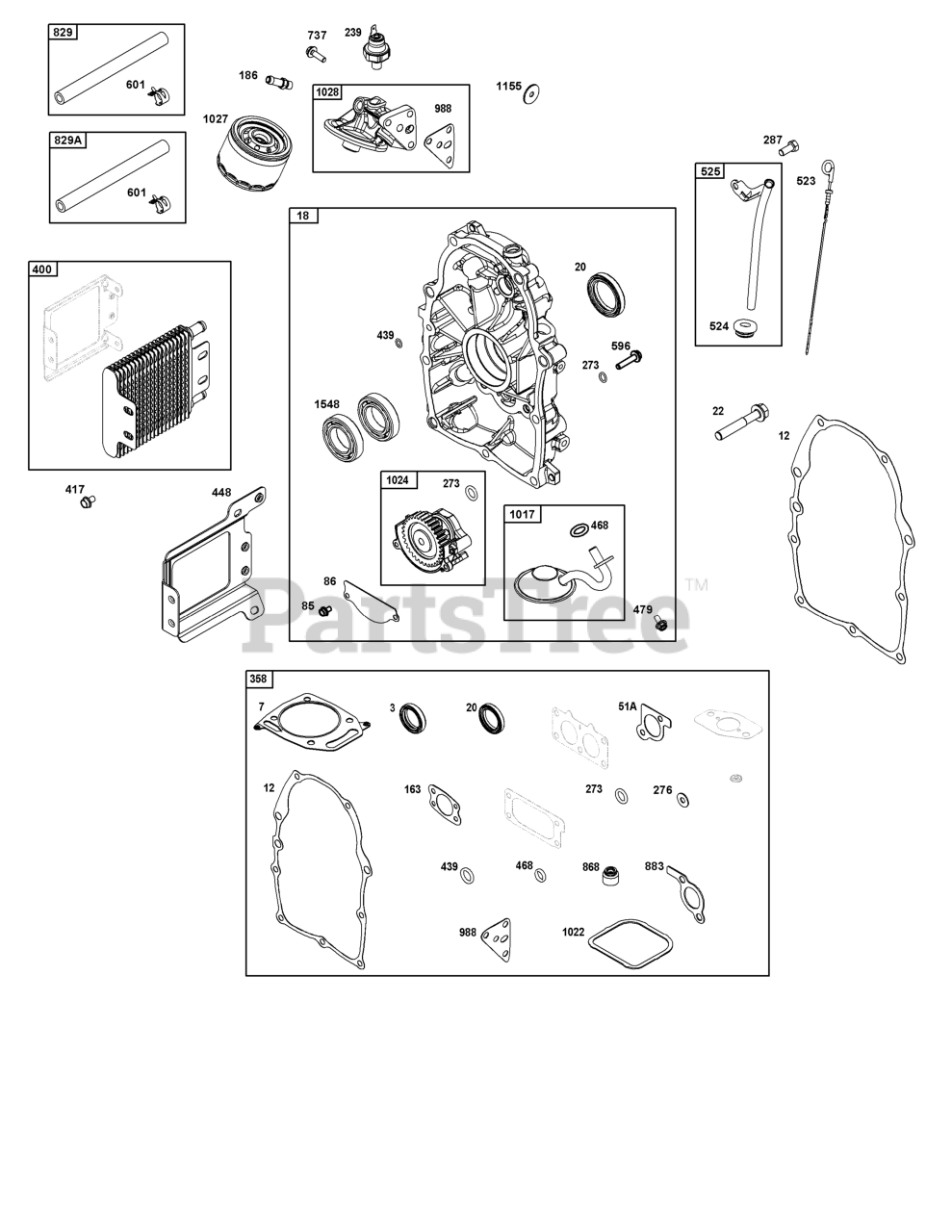

38E347-0021-G1 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump and Lubrication Group Parts Diagram

Horizontal Engine

Crankcase Cover/Sump and Lubrication Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

Briggs & Stratton 846487

GASKET, Crankcase

$41.99

$

In Stock, Qty 6

0

18

Briggs & Stratton 84002117

COVER, Crankcase

$326.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 805049S

SEAL, Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 12

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump) (M8x50mm)

$3.49

$

In Stock, Qty 7

0

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

85

Briggs & Stratton 841233

SCREW

Note: (Gear Cover) (M6x10mm)

$3.49

$

In Stock, only 2 left!

0

86

Briggs & Stratton 690745

COVER, Gear

$6.49

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

186

Briggs & Stratton 693184

CONNECTOR, Hose

$9.49

$

Usually ships in 2-12 days

0

239

Briggs & Stratton 841281

SWITCH, Oil Pressure

$32.99

$

In Stock, only 1 left!

0

273

Briggs & Stratton 690681

SEAL, O-Ring

Note: (Oil Pump)

$5.99

$

In Stock, Qty 7

0

276

WASHER, Sealing

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

287

Briggs & Stratton 806660

SCREW

Note: (Dipstick Tube) (M8x18mm)

$3.99

$

In Stock, only 1 left!

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

400

Briggs & Stratton 846489

COOLER, Oil

$154.99

$

Usually ships in 2-12 days

0

417

Briggs & Stratton 843345

SCREW

Note: (Oil Cooler) (M6x8mm)

$5.99

$

Usually ships in 2-12 days

0

439

O-RING, Oil Gallery

Note: (Part information located in Cylinder Group.)

$

$

Not available

448

Briggs & Stratton 841488

BRACKET, Oil Cooler

$41.99

$

Usually ships in 2-12 days

0

468

Briggs & Stratton 690690

SEAL, O-Ring

Note: (Oil Pump Screen)

$5.99

$

In Stock, only 1 left!

0

479

Briggs & Stratton 807084

SCREW

Note: (Oil Pump Screen) (M6x14mm)

$3.49

$

In Stock, Qty 13

0

523

Briggs & Stratton 693175

DIPSTICK

$26.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 693172

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, only 3 left!

0

525

Briggs & Stratton 693174

TUBE, Dipstick

$21.99

$

In Stock, only 1 left!

0

596

Briggs & Stratton 691492

SCREW

Note: (Oil Pump) (M6x30mm)

$3.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 841597

CLAMP, Hose

$4.49

$

In Stock, only 3 left!

0

737

Briggs & Stratton 690679

SCREW

Note: (Oil Filter Adapter) (M6x21mm)

$3.49

$

Usually ships in 2-12 days

0

829

Briggs & Stratton 841999

HOSE/CLAMP ASSEMBLY

$46.99

$

In Stock, only 1 left!

0

829A

Briggs & Stratton 841999

HOSE/CLAMP ASSEMBLY

$46.99

$

In Stock, only 1 left!

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

988

Briggs & Stratton 692063

GASKET, Oil Adapter

$4.49

$

In Stock, only 3 left!

0

1017

Briggs & Stratton 690900

SCREEN, Oil Pump

$29.99

$

Usually ships in 2-12 days

0

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1024

Briggs & Stratton 843825

PUMP, Oil

$108.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 842921

FILTER, Oil

$14.99

$

In Stock, Qty 20+

0

1028

Briggs & Stratton 843898

ADAPTER, Oil Filter

$97.99

$

Usually ships in 2-12 days

0

1155

Briggs & Stratton 806647

WASHER

Note: (Oil Cooler)

$4.49

$

Usually ships in 2-12 days

0

1548

Briggs & Stratton 843827

BEARING, Ball

Note: (Crankcase Cover/Sump)

$36.99

$

In Stock, only 1 left!

0
