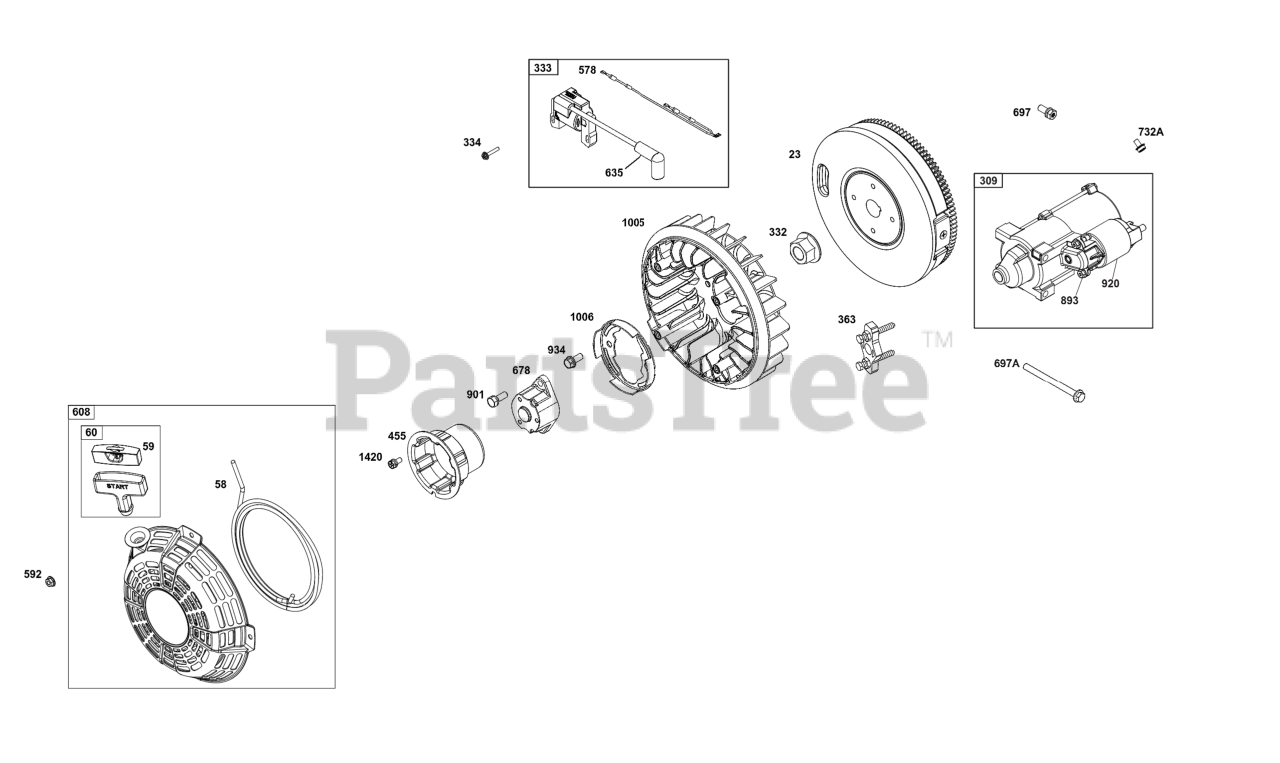

38E347-0026-G1 - Briggs & Stratton Horizontal Engine Flywheel/Ignition/Starter Group Parts Diagram

Horizontal Engine

Flywheel/Ignition/Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 845489

FLYWHEEL

$315.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 66574

ROPE, Starter

$7.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 805957

INSERT, Grip

$8.49

$

In Stock, Qty 5

0

60

Briggs & Stratton 808167

GRIP, Starter Rope

$14.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 847693

MOTOR-STARTER

$249.99

$

In Stock, only 2 left!

0

332

Briggs & Stratton 690887

NUT

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 84003819

ARMATURE-MAGNETO

$71.99

$

In Stock, Qty 12

0

334

Briggs & Stratton 692066

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 11

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 841794

CUP, Flywheel

$33.99

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 844547

WIRE ASSEMBLY

$17.99

$

In Stock, Qty 9

0

592

Briggs & Stratton 690939

NUT

Note: (Rewind Starter)

$3.49

$

In Stock, only 2 left!

0

608

Briggs & Stratton 841729

STARTER, Rewind

$142.99

$

In Stock, only 2 left!

0

635

BOOT, Spark Plug

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

678

Briggs & Stratton 841730

SPACER

$35.99

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 691902

SCREW

Note: (Drive Cap)

$3.49

$

In Stock, only 4 left!

0

697A

Briggs & Stratton 806474

SCREW

Note: (Drive Cap)

$5.49

$

Usually ships in 2-12 days

0

732A

Briggs & Stratton 841233

SCREW

Note: (Starter Drive Cover)

$3.49

$

In Stock, only 2 left!

0

893

Briggs & Stratton 845758

NUT

Note: (Starter Solenoid)

$2.99

$

In Stock, only 1 left!

0

901

Briggs & Stratton 846234

SCREW

Note: (Rewind Spacer)

$4.49

$

Usually ships in 2-12 days

0

920

Briggs & Stratton 847694

SOLENOID, Starter
(Superseded to 84008635)

$61.99

$

Usually ships in 2-12 days

0

934

Briggs & Stratton 692062

SCREW

Note: (Fan Retainer)

$3.49

$

In Stock, only 3 left!

0

1005

Briggs & Stratton 841439

FAN, Flywheel

$34.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 690452

RETAINER, Fan

$10.99

$

Usually ships in 2-12 days

0

1420

Briggs & Stratton 841735

SCREW

Note: (Flywheel Cup To Rewind Spacer)

$3.99

$

Usually ships in 2-12 days

0
