38E347-0108-G1 - Briggs & Stratton Horizontal Engine Throttle Body and Fuel Supply Group Parts Diagram

Horizontal Engine

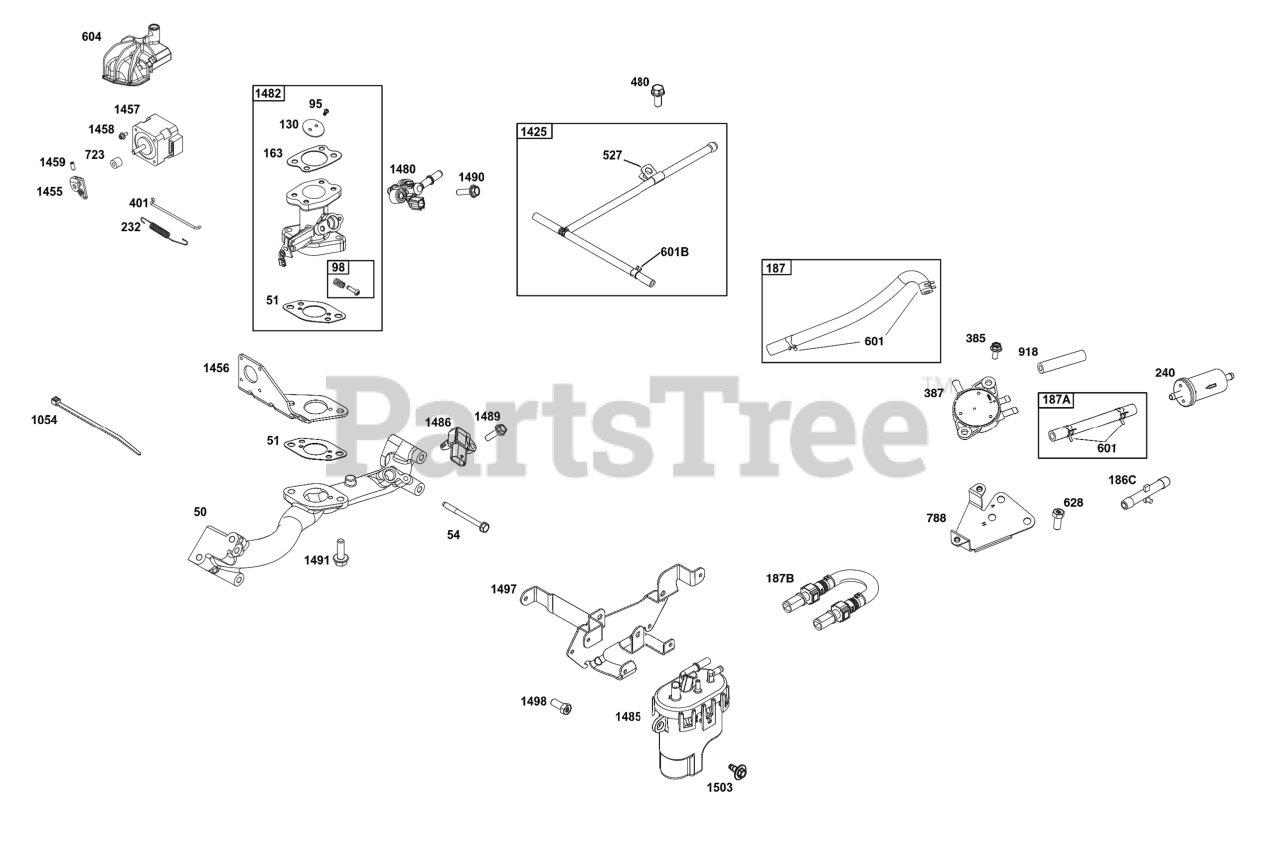

Throttle Body and Fuel Supply Group Parts Diagram

  • Title

50

MANIFOLD, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

54

SCREW

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

95

Briggs & Stratton 846644

SCREW

Note: (Throttle Valve) (M3x5mm)

$3.49

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 847139

KIT, Idle Speed

$5.49

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 847262

VALVE, Throttle

$223.99

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

186C

Briggs & Stratton 845121

CONNECTOR, Hose

$6.49

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 846584

LINE, Fuel

Note: (Formed)(6.88" Lg)(Cut To Required Length)

$20.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

187B

Briggs & Stratton 847473

LINE, Fuel

$67.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 847470

SPRING, Governor

$6.49

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump) (M6x14mm)

$3.49

$

In Stock, Qty 13

0

387

Briggs & Stratton 597338

PUMP, Fuel

$27.99

$

Usually ships in 2-12 days

0

401

Briggs & Stratton 845814

LINK, Actuator

$10.99

$

Usually ships in 2-12 days

0

480

Briggs & Stratton 692062

SCREW

Note: (Tube Clamp) (M8x18mm)

$3.49

$

In Stock, only 3 left!

0

527

Briggs & Stratton 845268

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 10

0

601B

Briggs & Stratton 593879

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

604

Briggs & Stratton 84001958

COVER, Control

Note: Stepper Motor

$31.99

$

Usually ships in 2-12 days

0

628

Briggs & Stratton 806660

SCREW

Note: (Fuel Pump Bracket) (M8x18mm)

$3.99

$

In Stock, only 1 left!

0

723

Briggs & Stratton 845818

SEAL, Foam

$17.99

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 691559

BRACKET, Fuel Pump

$24.99

$

In Stock, only 2 left!

0

918

Briggs & Stratton 791880

LINE, Fuel

$11.99

$

In Stock, only 1 left!

0

1054

Briggs & Stratton 280275

TIE, Cable

Note: (Part information located in Controls Group.)

$4.49

$

Usually ships in 2-12 days

0

1425

Briggs & Stratton 847556

HOSE, Purge Line

$31.99

$

Usually ships in 2-12 days

0

1455

Briggs & Stratton 845813

LEVER, Actuator

$22.99

$

Usually ships in 2-12 days

0

1456

Briggs & Stratton 845815

BRACKET, Mounting

$74.99

$

Usually ships in 2-12 days

0

1457

Briggs & Stratton 847142

MOTOR, Stepper

$238.99

$

Usually ships in 2-12 days

0

1458

Briggs & Stratton 845812

SCREW

Note: (Stepper Motor) (M3x8mm)

$4.99

$

Usually ships in 2-12 days

0

1459

Briggs & Stratton 845820

SCREW

$4.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 846618

INJECTOR, Fuel

$136.99

$

Usually ships in 2-12 days

0

1482

Briggs & Stratton 84006474

BODY, Throttle

$39.99

$

Usually ships in 2-12 days

0

1485

Briggs & Stratton 593890

MODULE, Fuel

$411.99

$

In Stock, only 1 left!

0

1486

Briggs & Stratton 593905

SENSOR, Temperature/Manifold Absolute Pressure (MAP)

$128.99

$

In Stock, only 1 left!

0

1489

Briggs & Stratton 193626GS

SCREW

Note: (Temperature/Manifold Air Pressure Sensor) (TEMP/MAP Sensor) (Intake Manifold)

$3.49

$

Usually ships in 2-12 days

0

1490

Briggs & Stratton 690679

SCREW

Note: (Fuel Injector) (M6x21mm)

$3.49

$

Usually ships in 2-12 days

0

1491

Briggs & Stratton 807382

SCREW

Note: (Throttle Body) (M8x25mm)

$3.49

$

Usually ships in 2-12 days

0

1497

Briggs & Stratton 84001967

BRACKET, Fuel Module

$109.99

$

Usually ships in 2-12 days

0

1498

Briggs & Stratton 84001969

SCREW

Note: (Fuel Module Bracket) (M4x10mm) (Not Available at this Time)

$3.99

$

Usually ships in 2-12 days

0

1503

Briggs & Stratton 594618

SCREW

Note: (Fuel Module) (1/4-20x.5)

$3.99

$

Usually ships in 2-12 days

0
