38L12G50X8A (96012007605) - Murray 38" Lawn Tractor, 12.5hp (2010) Lift Group (38L12G50X8Alift) Parts Diagram

38" Lawn Tractor, 12.5hp

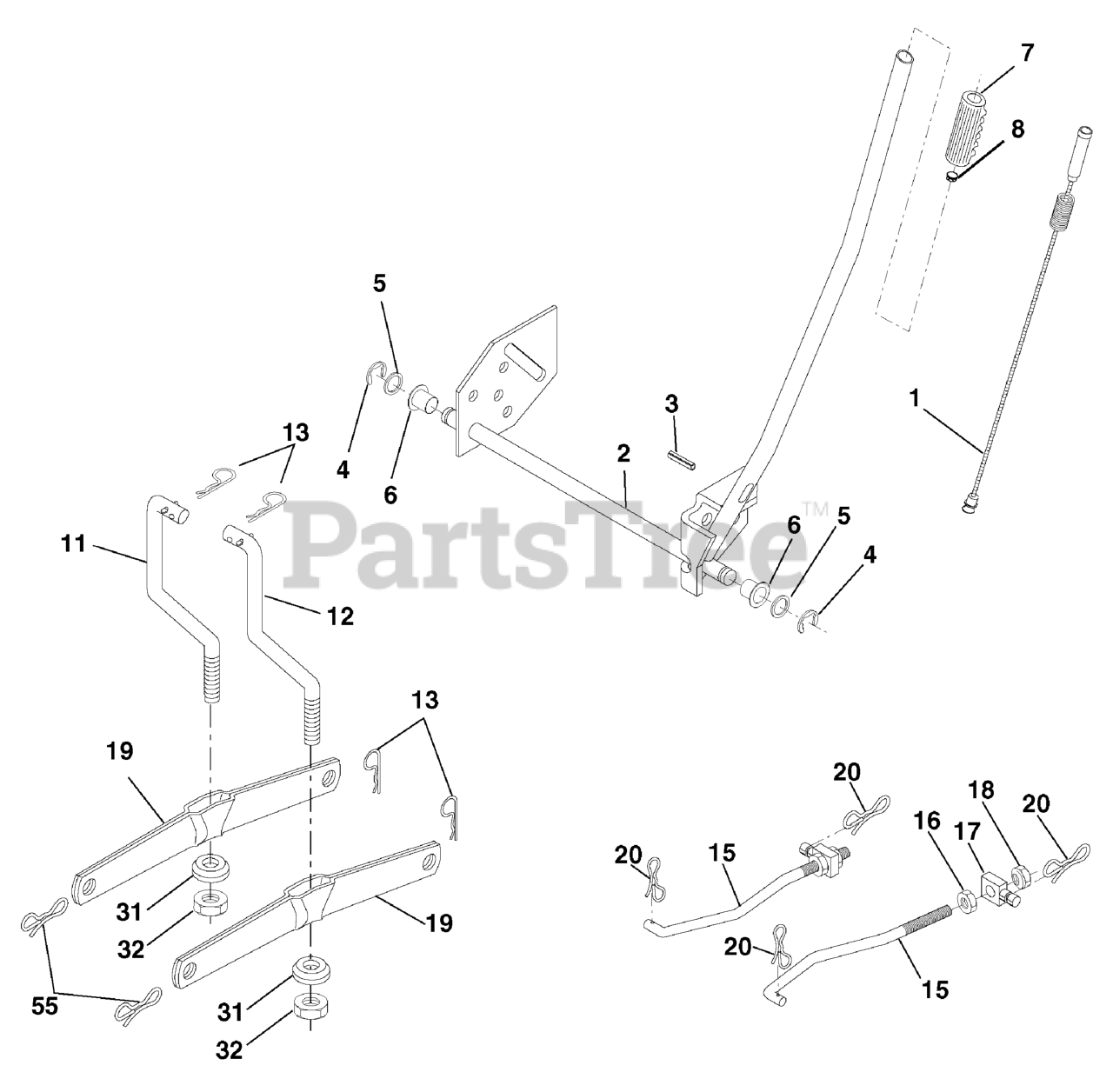

Lift Group (38L12G50X8Alift) Parts Diagram

  • Title

1

Murray 709311

PLUNGER, Assembly Lift LVR

$23.99

$

Usually ships in 2-12 days

0

2

Murray 709110

SHAFT, Assembly, Lift

$103.99

$

Usually ships in 2-12 days

0

3

Murray 709009

PIN, Groove

$4.49

$

Usually ships in 2-12 days

0

4

Murray 709021

E-RING

$5.49

$

Usually ships in 2-12 days

0

5

Murray 709242

WASHER, 21/32 x 1 x 21 Ga.

$4.99

$

Usually ships in 2-12 days

0

6

Murray 709025

BEARING, Nylon
(Superseded to 704994)

$6.49

$

Usually ships in 2-12 days

0

7

Murray 709015

GRIP, Handle

$5.49

$

Usually ships in 2-12 days

0

8

Murray 709032

BUTTON, Plunger, Red

$5.99

$

Usually ships in 2-12 days

0

11

Murray 709072

LINK, Lift, LH

$20.99

$

Usually ships in 2-12 days

0

12

Murray 709073

LINK, Lift, RH

$24.99

$

Usually ships in 2-12 days

0

13

Murray 709386

RETAINER, Spring

$6.49

$

In Stock, only 2 left!

0

15

Murray 709156

LINK, Front

$20.99

$

In Stock, only 1 left!

0

16

Murray 709427

NUT, Hex, Jam 1/2-13 UNC

$5.99

$

Usually ships in 2-12 days

0

17

Murray 709180

TRUNNION

$10.99

$

Usually ships in 2-12 days

0

18

Murray 709434

LOCKNUT, Hex with Washer Insert, 1/2-13 UNC

$5.99

$

Usually ships in 2-12 days

0

19

Murray 709074

ARM, Suspension Rear

$32.99

$

Usually ships in 2-12 days

0

20

Murray 709277

PIN, Cotter Bow Tie Lock, 7/16
(Superseded to 709066)

$94.99

$

Usually ships in 2-12 days

0

31

Murray 709146

BEARING, Pvt Lift

$7.49

$

Usually ships in 2-12 days

0

32

Murray 709429

NUT, Crownlock, 3/8-24

$2.99

$

Usually ships in 2-12 days

0

55

Murray 709276

PIN, Cotter Bow Tie Lock, 5/16

$6.49

$

Usually ships in 2-12 days

0
