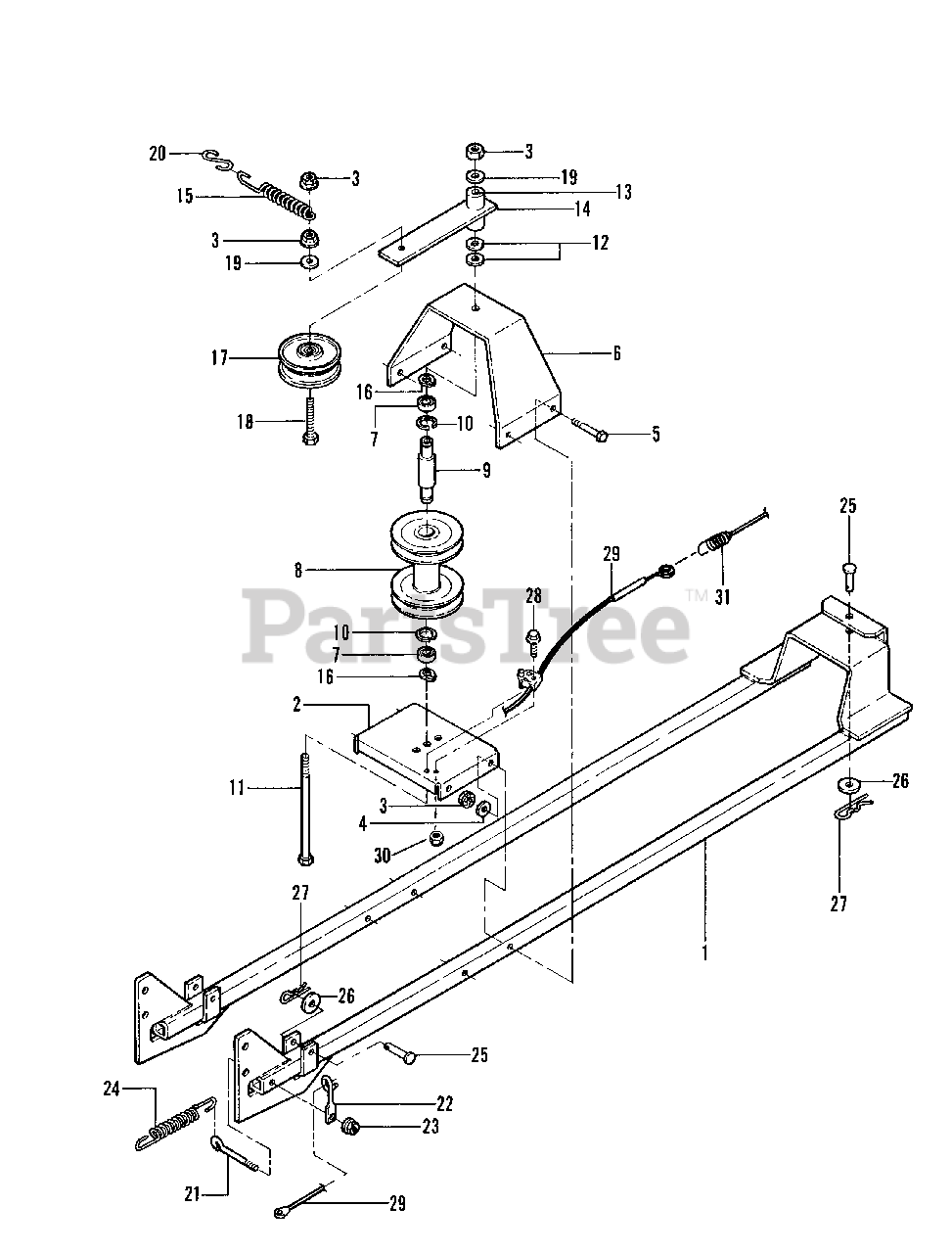

38LTST1 (7080560) - Snapper 38" Snow Thrower Attachment Support Structure Assembly Parts Diagram

38" Snow Thrower Attachment

Support Structure Assembly Parts Diagram

  • Title

1

Snapper 7041632

SUPPORT, Tube Structure

$

$

Currently unavailable

2

Snapper 7028237

SUPPORT, Lower Idler
(Superseded to 7028237YP)

$109.99

$

Usually ships in 2-12 days

0

3

Snapper 7091585

NUT, 3/8-16 Hex Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 4 left!

0

4

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Snapper 7091305

SCREW, 3/8-16 x 2" Hex Head Cap
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7028236

SUPPORT, Upper Idler
(Superseded to 7028236YP)

$126.99

$

Usually ships in 2-12 days

0

Snapper 7053354

ASSEMBLY, Stacked Idler

Note: (Includes items 7, 8, 9, 10, & 16)

$

$

Currently unavailable

7

Snapper 7013313

BEARING, Spindel
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

8

Snapper 7027927

IDLER, Stacked
(Superseded to 7027927YP)

$125.99

$

Usually ships in 2-12 days

0

9

Snapper 7027928

SHAFT, Stacked
(Superseded to 7028496YP)

$91.99

$

Usually ships in 2-12 days

0

10

Snapper 7012491

RING, Internal Jack Shaft
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 17

0

11

Snapper 7079845

BOLT, 3/8-16 x 6" Hex Head Cap, Grade 5
(Superseded to 7091617YP)

$6.99

$

Usually ships in 2-12 days

0

12

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

13

Snapper 7044752

SPACER
(Superseded to 7044752YP)

Note: Was 22062

$24.99

$

Usually ships in 2-12 days

0

14

Snapper 7040565

ARM, Idler
(Superseded to 7040565YP)

$61.99

$

Usually ships in 2-12 days

0

15

Snapper 7024383

SPRING, Idler
(Superseded to 7024383YP)

$10.99

$

Usually ships in 2-12 days

0

16

Snapper 7012899

RING, Bearing Retaining

$2.99

$

In Stock, only 1 left!

0

17

Snapper 7024452

PULLEY, Idler
(Superseded to 1723579SM)

$56.99

$

Usually ships in 2-12 days

0

18

Snapper 7091560

SCREW, 3/8-16 x 2 1/4" Hex Head Cap, Y.Z.C., Grade 5
(Superseded to 703872)

$4.99

$

In Stock, Qty 8

0

19

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 5

0

20

Snapper 7015271

S-HOOK
(Superseded to 7015271YP)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 7014954

BOLT, Eye

$

$

Currently unavailable

22

Snapper 7022779

GUIDE, Pull Rope
(Superseded to 7022779YP)

$7.99

$

Usually ships in 2-12 days

0

23

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

24

Snapper 7014513

SPRING
(Superseded to 7014513YP)

$14.99

$

Usually ships in 2-12 days

0

25

Snapper 7011768

PIN, Clevis
(Superseded to 7011768YP)

$5.49

$

Usually ships in 2-12 days

0

26

Snapper 7090250

WASHER, Flat, 17/32" I.D. x 1 1/16" O.D.
(Superseded to 704123)

$4.49

$

In Stock, Qty 18

0

27

Snapper 7011773

PIN, Hair

$

$

Currently unavailable

28

Snapper 7091240

SCREW, #10-32 x 5/8" Hex Washer Head, Grade 5
(Superseded to 7091240YP)

$4.99

$

In Stock, only 1 left!

0

29

Snapper 7027932

ASSEMBLY, Cable
(Superseded to 7027932YP)

$22.99

$

Usually ships in 2-12 days

0

30

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

$3.49

$

In Stock, only 4 left!

0

31

Snapper 7029674

CABLE, PTO
(Superseded to 7029674YP)

$15.99

$

Usually ships in 2-12 days

0
