39-1360 - Toro 2-Cycle Retrofit Kit for 21" Heavy-Duty Mower RETRO FIT KIT FOR 21" HEVI DUTY 2-CYCLE Parts Diagram

2-Cycle Retrofit Kit for 21" Heavy-Duty Mower

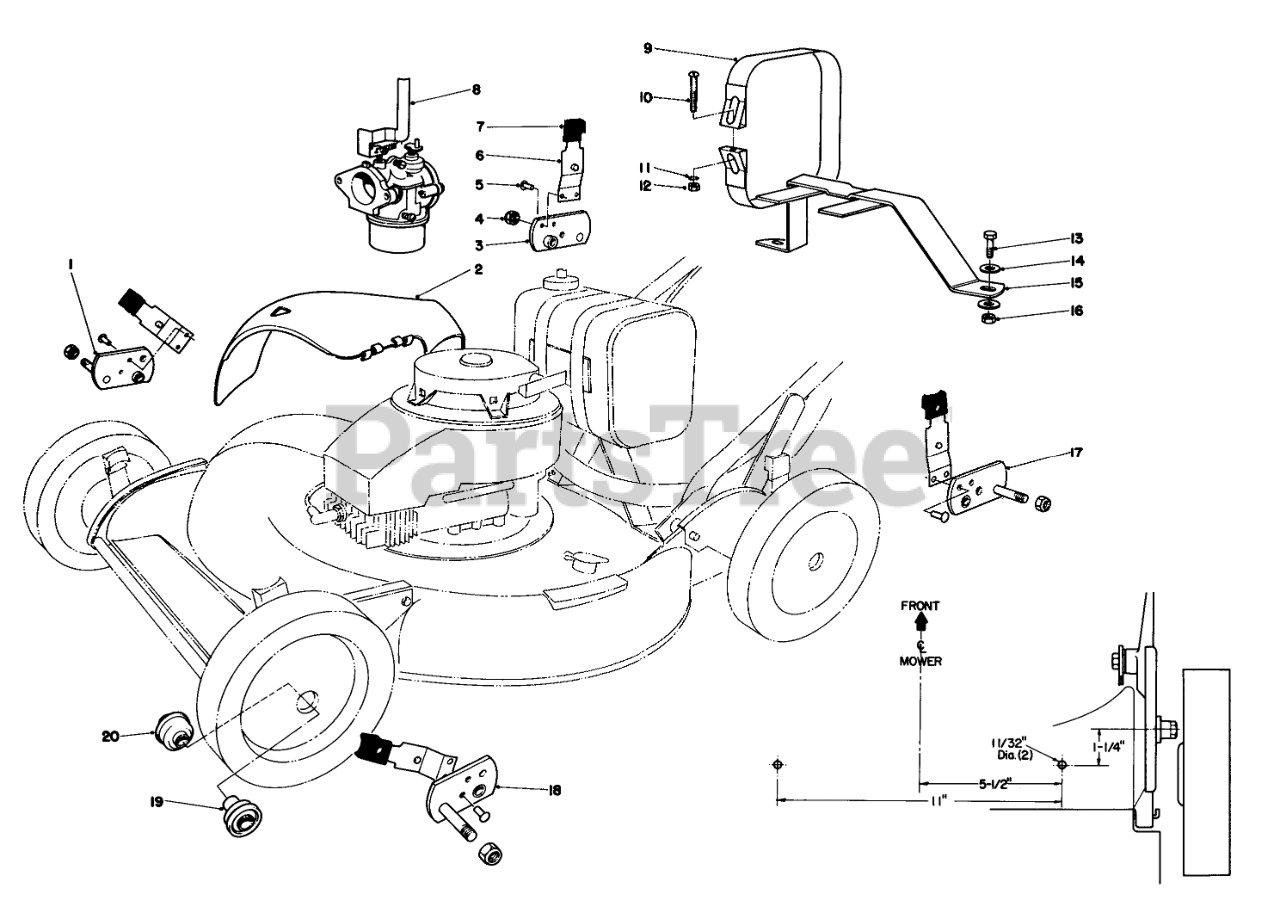

RETRO FIT KIT FOR 21" HEVI DUTY 2-CYCLE Parts Diagram

  • Title

1

Toro 39-1500

PIVOT ARM WA A

$

$

Not available

2

Toro 36-2970

Deflector

$

$

Not available

3

Toro 39-2560

PIVOT ARM WA D

$

$

Not available

4

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

5

Toro 3271-1

Rivet

$

$

Currently unavailable

6

Toro 39-0450

Spring Arm

$

$

Currently unavailable

7

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 20+

0

8

Carburetor (Furnished by Tecumseh)

$

$

Not available

9

Toro 39-0570

TANK STRAP WA

$130.99

$

Usually ships in 3-6 days

0

10

Toro 3258-20

1/4-20 X 2 FIL HD MS

$

$

Currently unavailable

11

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 13

0

13

Toro 3224

Screw

$

$

Currently unavailable

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 39-0550

Tank Bracket

$

$

Not available

16

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

17

Toro 39-1510

Pivot Arm "B"

$

$

Not available

18

Toro 39-2550

Pivot Arm "C"

$

$

Not available

19

Toro 251-282

BEARING

$69.99

$

Usually ships in 3-6 days

0

20

Toro 251-283

BEARING

$

$

Not available
