39 M (21A-39M8897) - Columbia Tiller (2014) General Assembly 21A-39M8897 Parts Diagram

Tiller

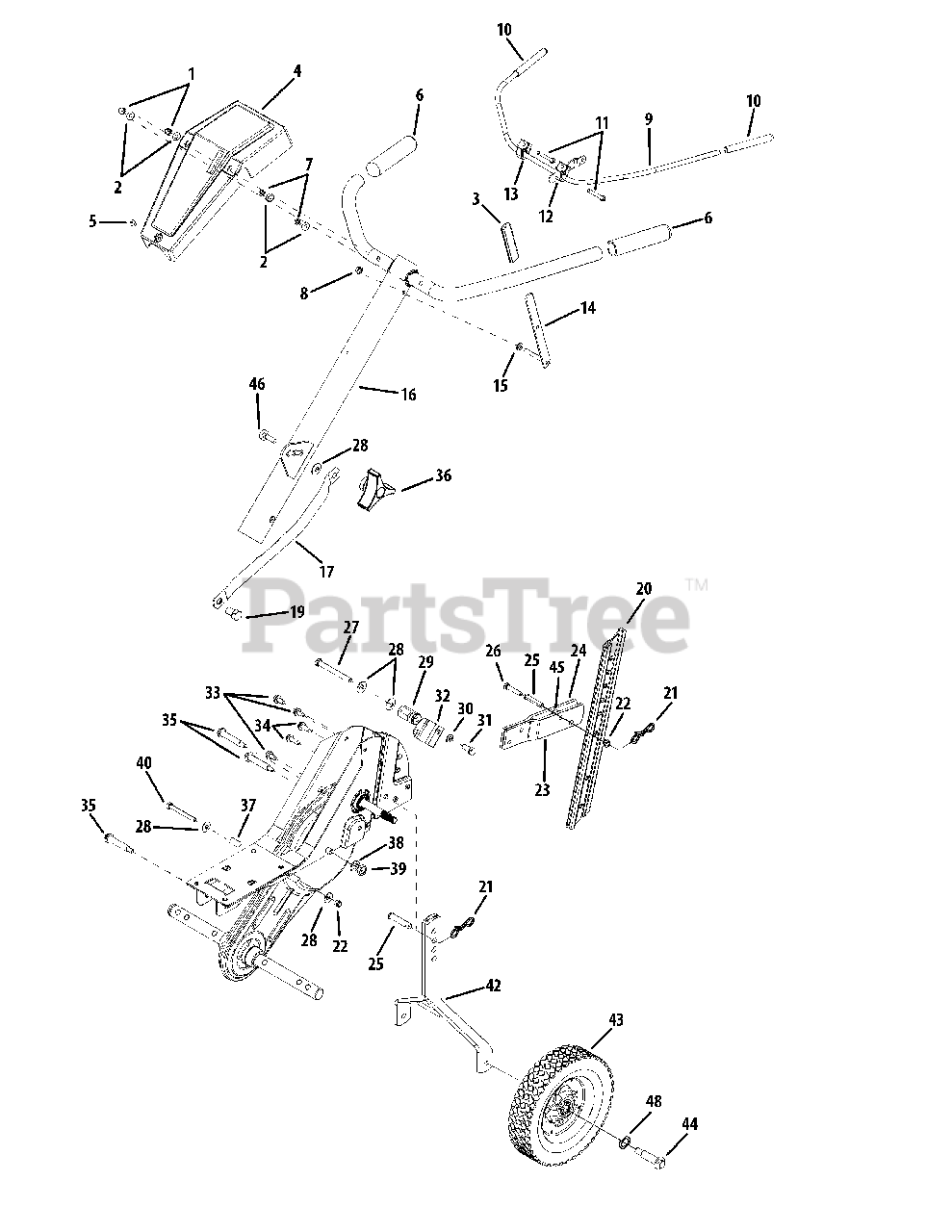

General Assembly 21A-39M8897 Parts Diagram

  • Title

1

MTD 912-0442

Acorn Lock Nut 1/4-20
(Superseded to 712-0442)

$

$

Not available

2

MTD 936-3020

Flat Washer .266 ID x .625 OD
(Superseded to 736-3020)

$

$

Not available

3

MTD 720-0270A

Reverse Handle Grip

$7.99

$

Usually ships in 3-6 days

0

4

MTD 731-1600

Handle cover (w/o throttle)

$51.99

$

Usually ships in 3-6 days

0

5

MTD 710-0779A

Truss Mach Tapp Scr #10 X .50

$4.49

$

In Stock, Qty 12

0

6

MTD 720-0274

Grip

$10.99

$

In Stock, Qty 6

0

7

MTD 712-3006

Hex Nut 1/4-20 Gr. 5

$4.49

$

In Stock, Qty 20+

0

8

MTD 726-0135

Cap Speed Nut 5/16" Rod

$6.49

$

In Stock, Qty 5

0

9

MTD 686-0083-0637

Clutch Handle Assembly

$46.99

$

Usually ships in 3-6 days

0

10

MTD 720-0269

Grip-Clutch

$4.49

$

In Stock, only 4 left!

0

11

MTD 710-0641

Screw - .250-20 X 2.25 Hex Wash

$3.99

$

In Stock, only 4 left!

0

12

MTD 931-1645B

Clutch Handle Holder

$15.99

$

In Stock, Qty 5

0

13

MTD 936-0300

Flat Washer .406 ID x .875 OD x .059
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

14

MTD 686-0014C-0637

Reverse Handle Ass’y

$19.99

$

Usually ships in 3-6 days

0

15

MTD 936-0264

Flat Washer .344 ID x .625 OD x .063

$6.49

$

In Stock, Qty 11

0

16

MTD 649-04040-0606

Handle Ass’y Complete

$105.99

$

Usually ships in 3-6 days

0

17

MTD 749-1401A-0606

Handle Brace

$44.99

$

Usually ships in 3-6 days

0

19

MTD 710-06053

Hex Bolt 1/2-20

$5.99

$

Usually ships in 3-6 days

0

20

MTD 786-0005-0637

Depth Bar

$37.99

$

In Stock, only 4 left!

0

21

MTD 714-04043

Bow Tie Cotter Pin

$4.49

$

In Stock, Qty 20+

0

22

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

23

MTD 786-0003-0637

Tail Piece Brkt. (LH)

$21.99

$

In Stock, only 2 left!

0

24

MTD 786-0004-0637

Tail Piece Brkt. (RH)

$32.99

$

In Stock, only 1 left!

0

25

MTD 911-0415

Clevis Pin 3/8 Dia
(Superseded to 711-0415)

$4.49

$

In Stock, Qty 20+

0

26

MTD 710-0805

Hex Bolt 5/16-18 x 1,50" Lg. Gr. 5
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

27

MTD 710-0189

Hex Screw 5/16-18 X 3.00

$5.99

$

In Stock, Qty 5

0

28

MTD 736-0242

Cupped Washer .345 ID x .88 OD x .060

$3.99

$

In Stock, Qty 20+

0

29

MTD 711-1036A

Hex Nut Special

$16.99

$

Usually ships in 3-6 days

0

30

MTD 936-0119

L-Wash 5/16 ID

$4.49

$

In Stock, Qty 20+

0

31

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$3.99

$

In Stock, Qty 20+

0

32

MTD 786-0129-0637

Cable Guide Bracket

$25.99

$

Usually ships in 3-6 days

0

33

MTD 710-04484

Hex TT Screw 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

34

MTD 710-0602

Hex Wash Hd Tapp Scr 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

35

MTD 738-0934A

Shoulder Bolt 5/16-18

$7.49

$

Usually ships in 3-6 days

0

36

MTD 720-0195

Handle Knob

$14.99

$

Usually ships in 3-6 days

0

37

MTD 750-0470

Spacer

$6.49

$

Usually ships in 3-6 days

0

38

MTD 936-0171

Lockwasher 7/16 ID
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 20+

0

39

MTD 912-0240

Hex Jam Nut 7/16-20

$3.99

$

In Stock, Qty 20+

0

40

MTD 710-0189

Hex Scr 5/16-18 x 3.0

$5.99

$

In Stock, Qty 5

0

42

MTD 686-0081A-0637

Wheel Hanger Brkt. Ass’y

$82.99

$

In Stock, only 4 left!

0

43

MTD 734-1268

Wheel Assembly 8 x 1.75

$66.99

$

Usually ships in 3-6 days

0

44

MTD 738-0929

Shoulder Screw .496 ID x 1.445 OD

$7.49

$

In Stock, only 2 left!

0

45

MTD 750-0890

Spacer .32" ID x .75" OD

$6.49

$

In Stock, Qty 8

0

46

MTD 710-1236

Carriage Bolt 5/16-18 x 1.00

$6.49

$

In Stock, only 4 left!

0

47

MTD 736-0242

Cupped Washer

$3.99

$

In Stock, Qty 20+

0

48

MTD 936-0232

Wave Washer .531 x .781 x .013
(Superseded to 736-0232)

$4.49

$

In Stock, Qty 18

0
