39 M (21A-39M8897) - Columbia Tiller (2014) Tine & Drive 21A-39M8897 Parts Diagram

Tiller

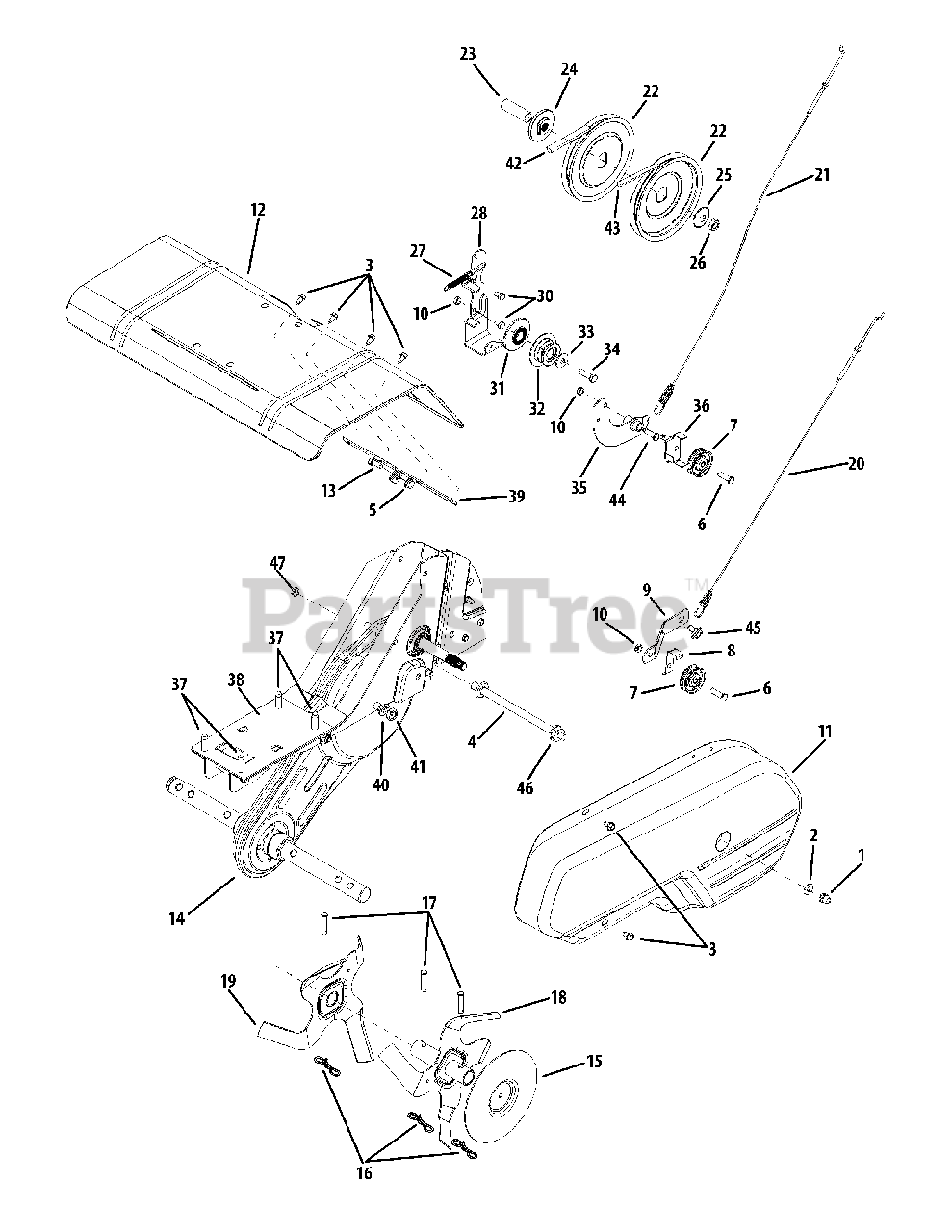

Tine & Drive 21A-39M8897 Parts Diagram

  • Title

1

MTD 912-0442

Cap Lock Nut 1/4-20
(Superseded to 712-0442)

$

$

Not available

2

MTD 936-3020

Flat Washer .266 ID x .625 OD
(Superseded to 736-3020)

$

$

Not available

3

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

4

MTD 711-0920

Belt Cover Bolt

$16.99

$

Usually ships in 3-6 days

0

5

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-3005

Hex Screw 3/8-16 X 1.25

$3.99

$

In Stock, Qty 20+

0

7

MTD 756-0313

Flat Idler 2.0 X 1.0 w/flange

$24.99

$

In Stock, Qty 7

0

8

MTD 786-0149

Belt Idler keeper

$9.49

$

Usually ships in 3-6 days

0

9

MTD 786-0144-0637

Idler Bracket

$12.99

$

Usually ships in 3-6 days

0

10

MTD 712-0266A

Hex Cent L-Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

11

MTD 786-0057-0606

Belt Cover

$74.99

$

Usually ships in 3-6 days

0

12

MTD 786-0043A-0606

Tine Shield

$126.99

$

Usually ships in 3-6 days

0

13

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$3.99

$

In Stock, Qty 20+

0

14

MTD 986-0091A

Chain Case Assembly Complete
(Superseded to 986-0091C)

$481.99

$

Usually ships in 3-6 days

0

15

MTD 686-0106-0637

Tine Disc Ends

$48.99

$

Usually ships in 3-6 days

0

16

MTD 714-04043

Bow Tie Cotter Pin

$4.49

$

In Stock, Qty 20+

0

17

MTD 911-0415

Clevis Pin 3/8 Dia
(Superseded to 711-0415)

$4.49

$

In Stock, Qty 20+

0

18

MTD 642-0023-0637

Outer Tine Ass’y LH

$60.99

$

In Stock, Qty 5

0

18

MTD 642-0024-0637

Outer Tine Ass’y RH

$60.99

$

In Stock, Qty 5

0

19

MTD 642-0003-0637

Inner Tine Ass’y - LH

$60.99

$

In Stock, Qty 15

0

19

MTD 642-0002-0637

Inner Tine Ass’y - RH

$60.99

$

In Stock, Qty 6

0

20

MTD 946-0918

Forward Clutch Cable

$28.99

$

Usually ships in 3-6 days

0

21

MTD 946-0953

Reverse Clutch Cable

$28.99

$

In Stock, only 3 left!

0

22

MTD 756-0585

Flat Pulley 6" Dia.

$38.99

$

Usually ships in 3-6 days

0

23

MTD 950-0892

Spacer .64" Dia. x 2.4" Lg.

$10.99

$

Usually ships in 3-6 days

0

24

MTD 948-0350

Pulley Mounting Adapter

$19.99

$

Usually ships in 3-6 days

0

25

MTD 736-0112

Bell. Washer .56 ID x 1.5"

$8.99

$

Usually ships in 3-6 days

0

26

MTD 712-3029

Hex Jam Nut 1/2-20 Gr. 5

$6.49

$

In Stock, Qty 8

0

27

MTD 732-0697

Return Spring 2.7" Lg.

$10.99

$

In Stock, only 1 left!

0

28

MTD 786-0040B-0637

Reverse Mounting Bracket

$27.99

$

Usually ships in 3-6 days

0

30

MTD 710-0170

Hex Hd. Cap Screw 5/16-24 X .625

$6.49

$

In Stock, only 1 left!

0

31

MTD 756-0971

Outer Engine Pulley Half

$13.99

$

In Stock, only 2 left!

0

32

MTD 756-0600

Outer Engine Pulley Half

$39.99

$

Usually ships in 3-6 days

0

33

MTD 936-0452

Cupped Washer .396 ID x 1/14"
(Superseded to 736-0452)

$4.49

$

In Stock, Qty 16

0

34

MTD 710-1039

Hex Bolt 3/8-24 x 1.0

$4.49

$

In Stock, Qty 11

0

35

MTD 686-0013

Reverse Arm Ass’y

$40.99

$

Usually ships in 3-6 days

0

36

MTD 786-0041-0637

Keeper Plate

$7.99

$

Usually ships in 3-6 days

0

37

MTD 710-0502A

Hex Washer Scr 3/8-16 x 1.25

$6.49

$

In Stock, Qty 7

0

38

MTD 786-0145A-0606

Engine Plate

$16.99

$

Usually ships in 3-6 days

0

39

MTD 786-0053-0637

Tine Shield Support

$9.99

$

Usually ships in 3-6 days

0

40

MTD 936-0171

Lockwasher 7/16 ID
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 20+

0

41

MTD 912-0240

Hex Jam Nut 7/16-20

$3.99

$

In Stock, Qty 20+

0

42

MTD 954-0428

Engine Pulley 5.56 Dia x 3.56 Dia

$34.99

$

Usually ships in 3-6 days

0

43

MTD 954-0429

"V" Belt (Reverse)

$28.99

$

In Stock, only 4 left!

0

44

MTD 938-0102

Axle Bolt
(Superseded to 738-0102)

$

$

Not available

45

MTD 738-0930

Shoulder Bolt

$6.49

$

In Stock, only 1 left!

0

46

MTD 712-3004A

Hex Flange L-Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

47

MTD 712-3004A

Flg. L-Nut 5/16-18 Gr. 5

$3.49

$

In Stock, Qty 20+
