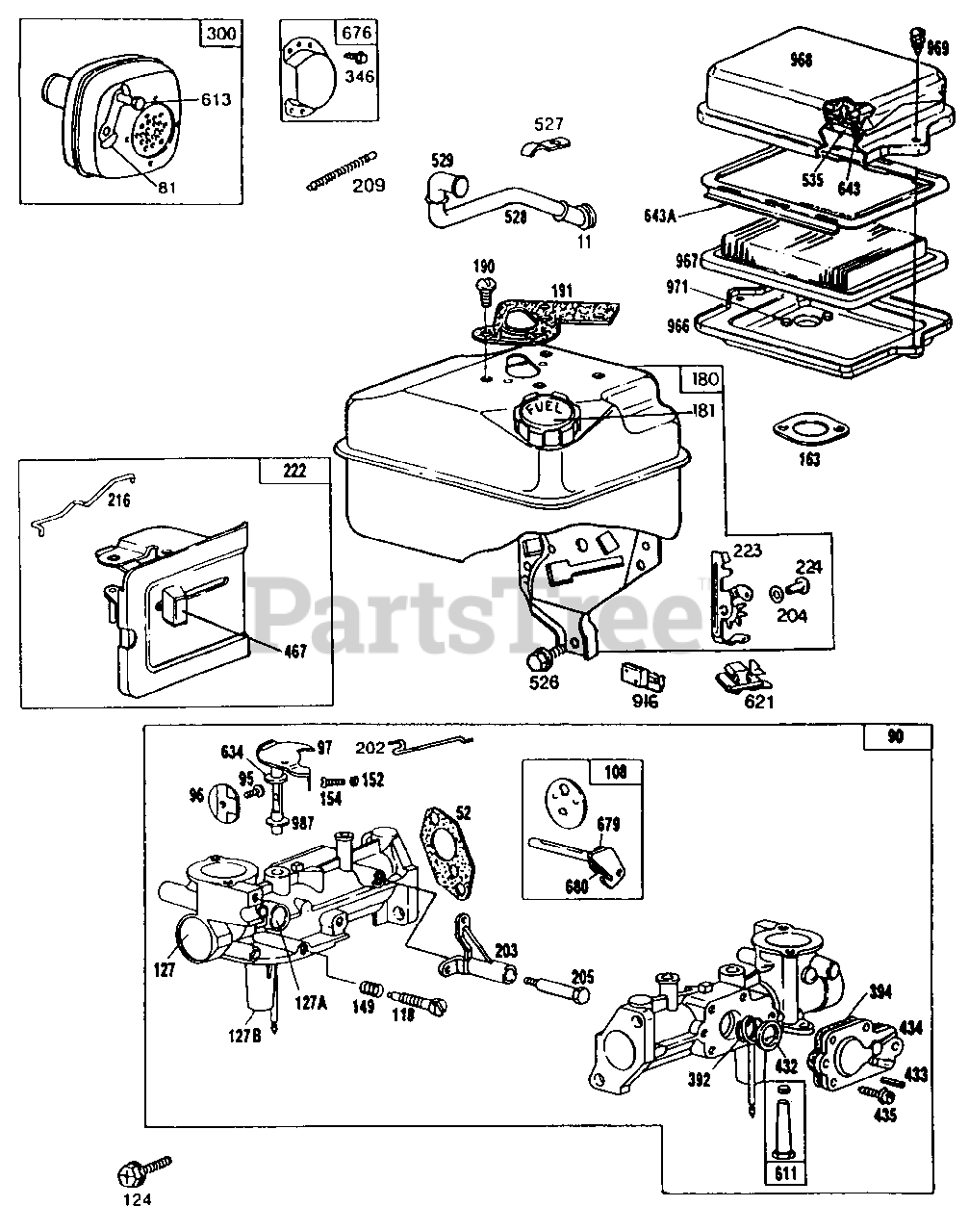

390 (212-390-100) - Cub Cadet Front-Tine Tiller Engine (1992) B&S 5 HP Carburetor, Fuel Tank, Muffler Exhaust & Air Cleaner Ass'y Parts Diagram

Front-Tine Tiller Engine

B&S 5 HP Carburetor, Fuel Tank, Muffler Exhaust & Air Cleaner Ass'y Parts Diagram

  • Title

11

Cub Cadet BS-66578

Grommet-Breather Tube
(Superseded to BS-692187)

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet BS-271937

Gasket--Carburetor Mounting (2)

$

$

Currently unavailable

81

Cub Cadet BS-222263

Lock--Screw (318" Dia. Bolt Holes)

$

$

Not available

90

Cub Cadet BS-490533

Carburetor Assembly
(Superseded to BS-498298)

$149.99

$

In Stock, only 3 left!

0

95

Cub Cadet BS-93499

Screw--Throttle Valve to Shaft Sem
(Superseded to BS-691437)

$3.99

$

In Stock, only 2 left!

0

96

Cub Cadet BS-223793

Throttle--Carburetor

$

$

Currently unavailable

97

Cub Cadet BS-490048

Shaft and Lever--Throttle

$

$

Not available

108

Cub Cadet BS-491177

Valve Group--Choke

$

$

Not available

118

Cub Cadet BS-231533

Valve--Needle

$

$

Not available

124

Cub Cadet BS-93357

Screw--Hex. Head

$

$

Not available

127

Cub Cadet BS-220352

Plug--Welch
(Superseded to BS-691718)

$13.99

$

In Stock, only 4 left!

0

127A

Cub Cadet BS-223789

Plug--Welch (Mixing Chamber)

$

$

Not available

127B

Cub Cadet BS-223472

Plug--Welch (Well)
(Superseded to BS-691739)

$4.49

$

In Stock, only 3 left!

0

149

Cub Cadet BS-26336

Spring--Needle Valve

$

$

Not available

152

Cub Cadet BS-260575

Spring--Throttle Adjustment

$

$

Currently unavailable

154

Cub Cadet BS-93527

Screw--Machine, Rd. Hd.--5-40 x 5/8"

$

$

Not available

163

Cub Cadet BS-271935

Gasket--Air Cleaner Mounting
(Superseded to BS-271935S)

$6.49

$

In Stock, Qty 17

0

180

Cub Cadet BS-490554

Tank Assembly--Fuel
(Superseded to BS-694315)

$

$

Not available

181

Cub Cadet BS-490075

Cap--Fuel Tank
(Superseded to BS-494559)

$15.99

$

In Stock, Qty 8

0

190

Cub Cadet BS-94094

Screw-Fuel Tank Mounting Sem

$

$

Not available

191

Cub Cadet BS-271928

Gasket-Fuel Tank Mounting
(Superseded to BS-692241)

$4.49

$

In Stock, Qty 19

0

202

Cub Cadet BS-262270

Link--Throttle
(Superseded to BS-691812)

$8.99

$

In Stock, only 1 left!

0

203

Cub Cadet BS-280720

Crank--Bell

$

$

Not available

204

Cub Cadet BS-222962

Bushing--Governor Lever (Flat)

$

$

Currently unavailable

205

Cub Cadet BS-231520

Screw--Shoulder

$

$

Not available

209

Cub Cadet BS-262283

Spring--Governor
(Superseded to BS-691816)

$10.99

$

In Stock, only 1 left!

0

216

Cub Cadet BS-262359

Link--Choke
(Superseded to BS-691824)

$9.99

$

In Stock, Qty 5

0

222

Cub Cadet BS-490649

Bracket--Control

$67.99

$

Usually ships in 2-12 days

0

223

Cub Cadet BS-223455

Lever--Governor Control

$

$

Currently unavailable

224

Cub Cadet BS-93491

Rivet--Governor Control Lever Mounting

$1.49

$

Usually ships in 2-12 days

0

300

Cub Cadet BS-393615

Muffler--Exhaust
(Superseded to BS-494585)

$23.99

$

In Stock, Qty 10

0

346

Cub Cadet BS-93705

Screw--Sem
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 20+

0

392

Cub Cadet BS-262328

Spring--Fuel Pump Diaphragm
(Superseded to BS-691823)

$4.99

$

In Stock, Qty 19

0

394

Cub Cadet BS-270026

Diaphragm

$3.99

$

In Stock, Qty 20+

0

432

Cub Cadet BS-221377

Cap--Spring
(Superseded to BS-690766)

$4.99

$

In Stock, Qty 20+

0

433

Cub Cadet BS-93265

Pin--Diaphragm Cover

$

$

Currently unavailable

434

Cub Cadet BS-210959

Cover--Diaphragm
(Superseded to BS-691713)

$10.99

$

In Stock, Qty 6

0

435

Cub Cadet BS-93141

Screw--Diaphragm Cover

$

$

Not available

467

Cub Cadet BS-280715

Knob-Control
(Superseded to BS-692295)

$9.49

$

In Stock, only 3 left!

0

526

Cub Cadet BS-93343

Screw--Tank Bracket Mounting Sem
(Superseded to BS-692198)

$5.99

$

In Stock, only 3 left!

0

527

Cub Cadet BS-223786

Clamp--Breather Tube
(Superseded to BS-691741)

$4.99

$

Usually ships in 2-12 days

0

528

Cub Cadet BS-231526

Tube--Breather

$

$

Not available

529

Cub Cadet BS-67838

Grommet--Breather Tube
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 20+

0

535

Cub Cadet BS-271933

Element--Air Cleaner
(Superseded to BS-491435S)

$4.99

$

In Stock, Qty 20+

0

611

UNKNOWN

$

$

Not available

613

Cub Cadet BS-93935

Screw--Hex. Hd. Shoulder
(Superseded to BS-691413)

$5.99

$

In Stock, only 2 left!

0

621

Cub Cadet BS-396847

Switch--Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

634

Cub Cadet BS-271853

Washer--Throttle Shaft (Foam)
(Superseded to BS-692279)

$3.99

$

In Stock, only 1 left!

0

643

Cub Cadet BS-280737

Retainer--Foam Element

$7.49

$

Usually ships in 2-12 days

0

643A

Cub Cadet BS-280726

Retainer--Air Filter

$

$

Not available

676

Cub Cadet BS-393757

Deflector--Exhaust
(Superseded to BS-796956)

$10.99

$

In Stock, only 1 left!

0

679

Cub Cadet BS-270382

Washer Choke Shaft (Foam)
(Superseded to BS-691869)

$3.99

$

In Stock, only 4 left!

0

680

Cub Cadet BS-221839

Washer Choke Shaft (Brass)

$

$

Not available

916

Cub Cadet BS-280321

Gear Rack--Governor

$

$

Not available

966

Cub Cadet BS-490074

Base--Air Cleaner
(Superseded to BS-494279)

$

$

Not available

967

Cub Cadet BS-491588

Filter--Air
(Superseded to BS-491588S)

$6.49

$

In Stock, Qty 20+

0

968

Cub Cadet BS-223765

Cover--Air Cleaner
(Superseded to BS-791082)

$20.99

$

In Stock, Qty 5

0

969

Cub Cadet BS-490073

Screw--Cover Mtg.
(Superseded to BS-694515)

$5.99

$

In Stock, Qty 12

0

971

Cub Cadet BS-94018

Screw--Air Cleaner
(Superseded to BS-690859)

$3.99

$

In Stock, Qty 9

0

987

Cub Cadet BS-398970

Seal--Throttle Shaft
(Superseded to BS-692279)

$3.99

$

In Stock, only 1 left!

0
