390 - Husqvarna Chainsaw (2013-09) CRANKCASE Parts Diagram

Chainsaw

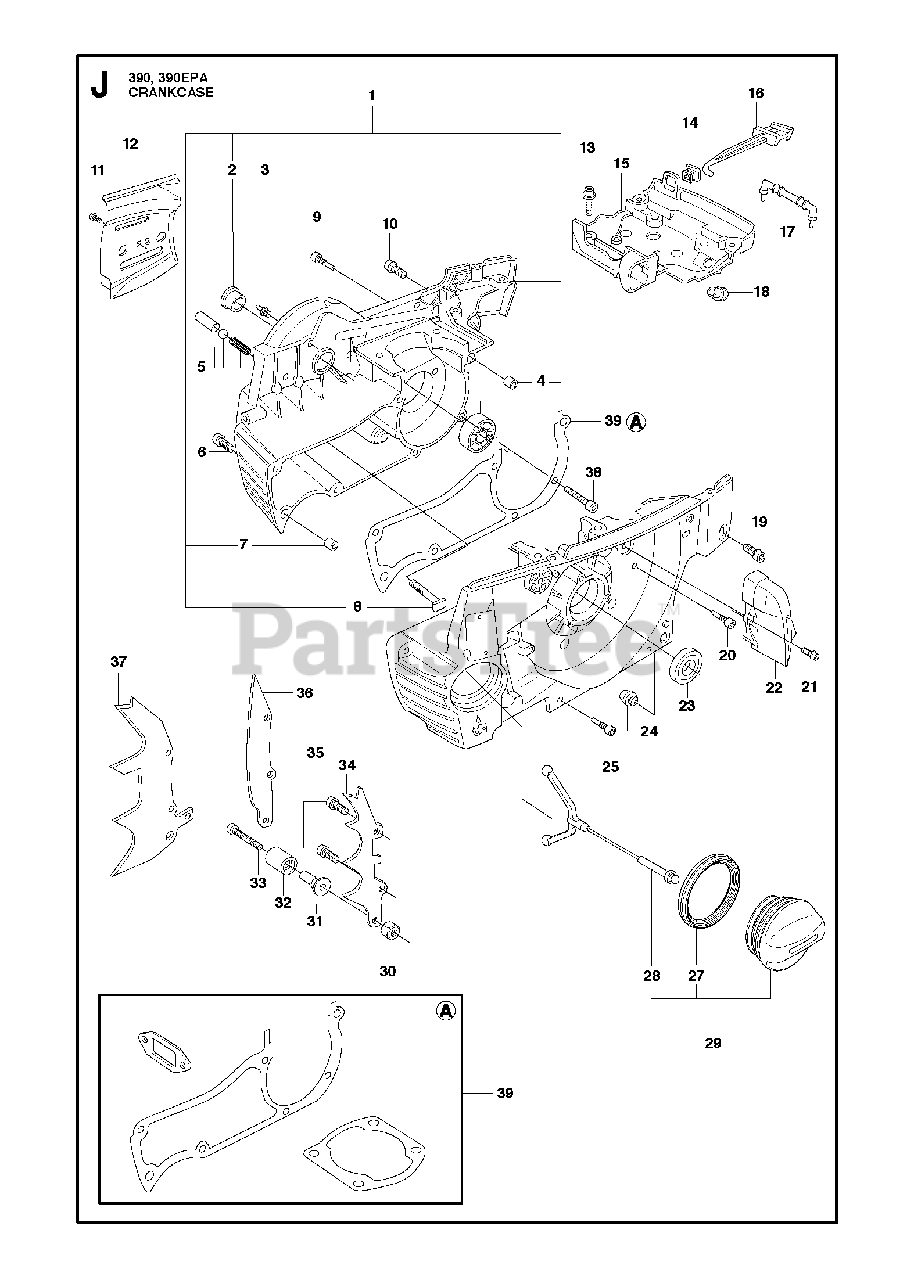

CRANKCASE Parts Diagram

  • Title

1

Husqvarna 503991105

CRANKCASE

$340.99

$

Usually ships in 3-10 days

0

2

Husqvarna 503967001

BUSHING

Note: . 1

$10.99

$

In Stock, Qty 9

0

3

Husqvarna 503751801

PIN

Note: . 1

$7.99

$

In Stock, Qty 8

0

4

Husqvarna 501270801

SLEEVE

Note: . 1

$8.49

$

Usually ships in 3-10 days

0

5

Husqvarna 537040301

VALVE

Note: . 1

$6.99

$

In Stock, Qty 11

0

6

Husqvarna 503218874

SCREW

$10.99

$

In Stock, Qty 13

0

7

Husqvarna 501270801

SLEEVE

Note: . 1

$8.49

$

Usually ships in 3-10 days

0

8

Husqvarna 537051301

BOLT

Note: . 1

$10.99

$

In Stock, Qty 6

0

9

Husqvarna 503749301

SCREW

$5.99

$

In Stock, Qty 10

0

10

Husqvarna 503218874

SCREW

$10.99

$

In Stock, Qty 13

0

11

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 537046601

PLATE

$15.99

$

In Stock, Qty 5

0

13

Husqvarna 503200212

SCREW
(Superseded to 503200712)

$7.49

$

In Stock, Qty 20+

0

14

Husqvarna 503734401

GROMMET

$6.99

$

In Stock, Qty 8

0

15

Husqvarna 537001402

BASE

$9.49

$

Usually ships in 3-10 days

0

16

Husqvarna 537001201

CHOKE CONTROL

$10.99

$

In Stock, only 2 left!

0

17

Husqvarna 503678601

SPACER
(Superseded to 579468901)

$6.99

$

In Stock, Qty 10

0

18

Husqvarna 537095401

GROMMET

$7.99

$

In Stock, only 3 left!

0

19

Husqvarna 503218874

SCREW

$10.99

$

In Stock, Qty 13

0

20

Husqvarna 503749301

SCREW

$5.99

$

In Stock, Qty 10

0

21

Husqvarna 503200212

SCREW
(Superseded to 503200712)

$7.49

$

In Stock, Qty 20+

0

22

Husqvarna 537007901

JET

$7.99

$

In Stock, Qty 5

0

23

Husqvarna 503260205

SEALING RING

$18.99

$

In Stock, Qty 11

0

24

Husqvarna 503846101

BUFFER

$8.99

$

In Stock, Qty 11

0

25

Husqvarna 503749301

SCREW

$5.99

$

In Stock, Qty 10

0

27

Husqvarna 537215001

SEALING

Note: . 29

$8.99

$

In Stock, Qty 17

0

28

Husqvarna 503578901

TANK LOCK

Note: . 29

$9.99

$

In Stock, Qty 15

0

29

Husqvarna 537215202

TANK CAP
(Superseded to 537215207)

$10.99

$

In Stock, Qty 20+

0

30

Husqvarna 503222401

NUT

$2.49

$

In Stock, Qty 20+

0

31

Husqvarna 537089201

CHAIN CATCHER

$10.99

$

In Stock, Qty 12

0

32

Husqvarna 537024401

SPACER

$9.99

$

In Stock, Qty 7

0

33

Husqvarna 503200230

SCREW

$6.49

$

In Stock, Qty 9

0

34

Husqvarna 537017101

FELLING DOG

$24.99

$

In Stock, only 1 left!

0

35

Husqvarna 503212616

SCREW

$6.49

$

In Stock, Qty 9

0

36

Husqvarna 537042901

BUMPER

$14.99

$

Usually ships in 3-10 days

0

37

Husqvarna 537017201

FELLING DOG

Note: WA

$35.99

$

Usually ships in 3-10 days

0

38

Husqvarna 503201635

SCREW

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 537033901

GASKET SET

Note: A Set of gaskets

$22.99

$

In Stock, Qty 6

0
