390 - Husqvarna Chainsaw (2013-09) IGNITION SYSTEM Parts Diagram

Chainsaw

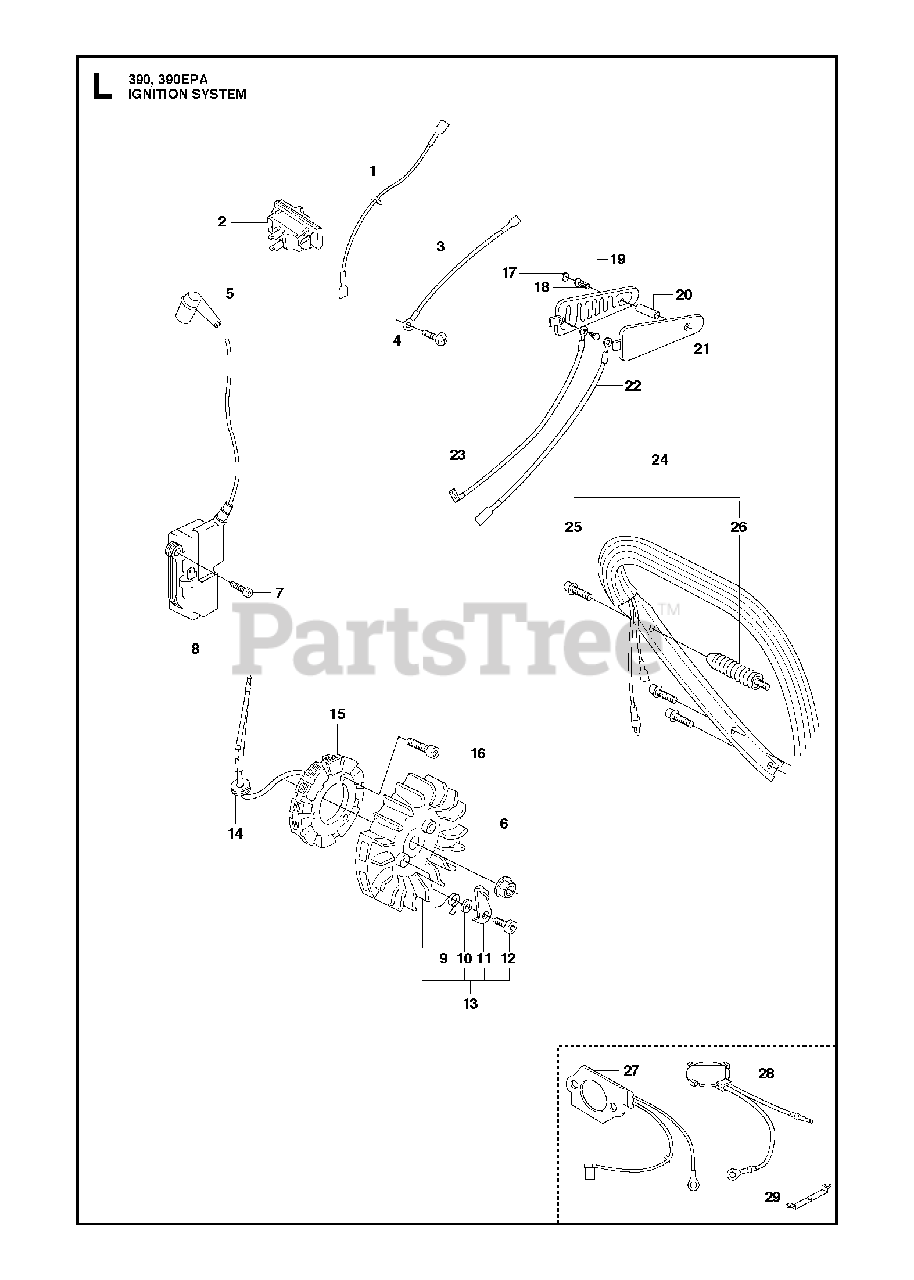

IGNITION SYSTEM Parts Diagram

  • Title

1

Husqvarna 503626102

CABLE

$6.99

$

In Stock, only 2 left!

0

2

Husqvarna 503718201

START/STOP SWITCH

$14.99

$

In Stock, Qty 9

0

2

Husqvarna 503718202

SWITCH (G)

Note: G

$13.99

$

In Stock, only 1 left!

0

3

Husqvarna 503897601

CABLE

$5.99

$

In Stock, only 1 left!

0

4

Husqvarna 503212810

SCREW

$3.49

$

In Stock, Qty 11

0

5

Husqvarna 501485402

SPARK PLUG CONN. KIT

$15.99

$

In Stock, Qty 11

0

6

Husqvarna 503220401

NUT W/ WASHER

$5.49

$

In Stock, Qty 6

0

7

Husqvarna 503200220

SCREW

$5.49

$

In Stock, Qty 12

0

8

Husqvarna 510114901

IGNITION MODULE
(Superseded to 510114902)

Note: Speed limited

$125.99

$

In Stock, only 2 left!

0

9

Husqvarna 501673501

SPRING

Note: . 13

$3.49

$

In Stock, only 3 left!

0

10

Husqvarna 503230042

WASHER

Note: . 13

$3.49

$

In Stock, only 2 left!

0

11

Husqvarna 537015501

PAWL

Note: . 13

$6.99

$

In Stock, only 2 left!

0

12

Husqvarna 501819901

SCREW M5X14

Note: . 13

$5.49

$

In Stock, Qty 6

0

13

Husqvarna 537051605

FLYWHEEL

$51.99

$

In Stock, only 2 left!

0

13

Husqvarna 537051606

FLYWHEEL

Note: G

$170.99

$

Usually ships in 3-10 days

0

14

Husqvarna 501271302

GROMMET

Note: G

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 537071802

GENERATOR

Note: G

$136.99

$

Usually ships in 3-10 days

0

16

Husqvarna 725529156

SCREW MC6S 4X12
(Superseded to 725529155)

Note: G

$7.99

$

Usually ships in 3-10 days

0

17

Husqvarna 501795102

WASHER

Note: G

$3.49

$

In Stock, only 1 left!

0

18

Husqvarna 724322405

SCREW 3X10

Note: G

$7.99

$

In Stock, only 1 left!

0

19

Husqvarna 503212906

SCREW

Note: G

$2.49

$

In Stock, only 4 left!

0

20

Husqvarna 537052601

SPACER

Note: G

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 501629308

HANDLE

Note: G

$9.49

$

Usually ships in 3-10 days

0

22

Husqvarna 537040601

CABLE

Note: G

$22.99

$

Usually ships in 3-10 days

0

23

Husqvarna 537040501

CABLE

Note: G

$10.99

$

Usually ships in 3-10 days

0

24

Husqvarna 503986672

FRONT HANDLE HEATED

Note: G

$96.99

$

Usually ships in 3-10 days

0

25

Husqvarna 503218874

SCREW

Note: . 24

$4.99

$

In Stock, only 4 left!

0

26

Husqvarna 503684503

VIBRATION ABSORBER

Note: . 24

$20.99

$

Usually ships in 3-10 days

0

27

Husqvarna 537065302

FOIL ELEMENT

$102.99

$

Usually ships in 3-10 days

0

28

Husqvarna 537189801

THERMOSTAT

$102.99

$

Usually ships in 3-10 days

0

29

Husqvarna 537063201

HOLDER

$5.99

$

Usually ships in 3-10 days

0
