3900 (5900598) - Massey Ferguson 72" Zero-Turn Mower, 36hp Briggs & Stratton 72" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

72" Zero-Turn Mower, 36hp Briggs & Stratton

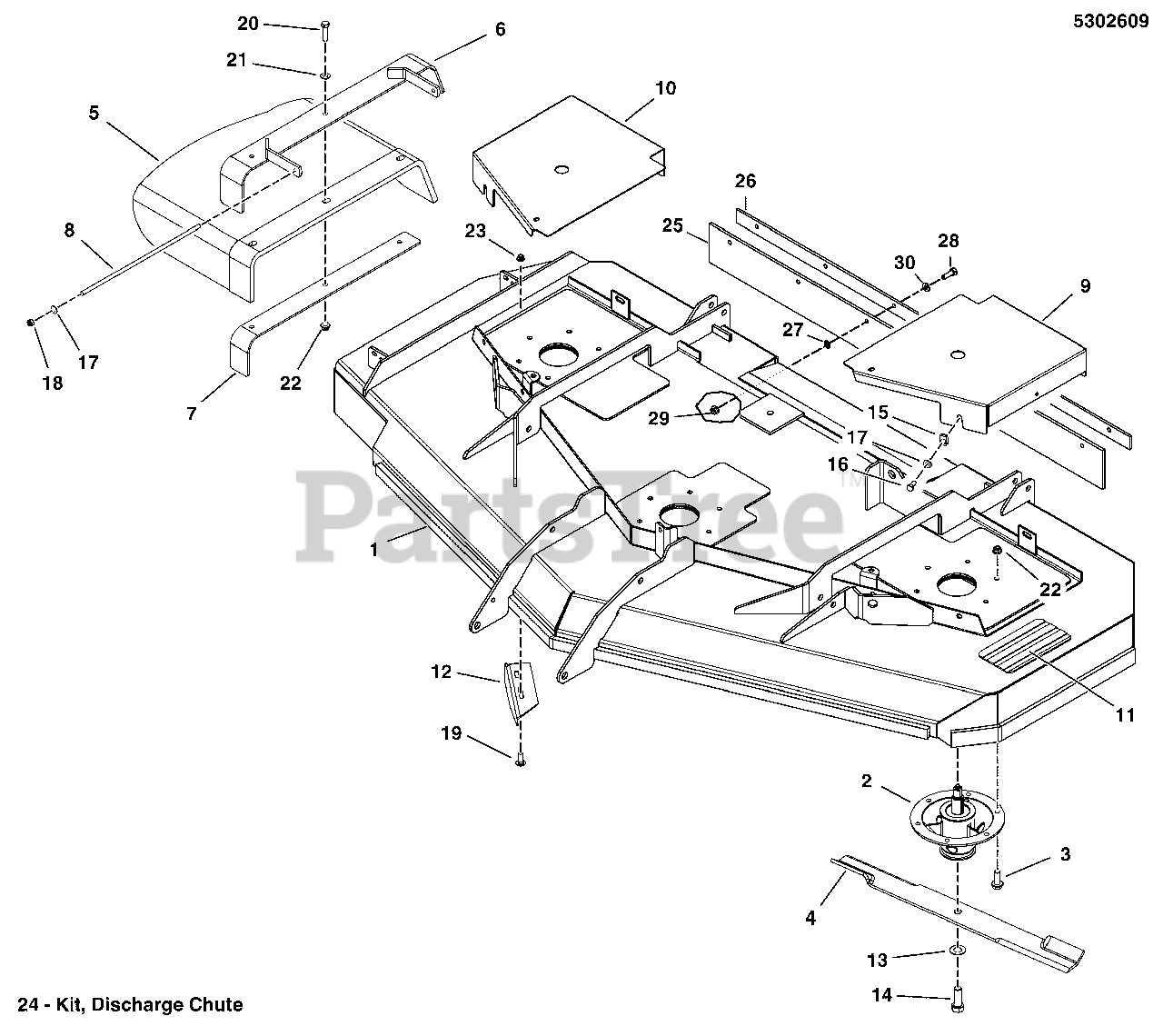

72" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Simplicity 5600529

DECK SHELL W/ DECALS, 72, S200XT

Note: (S/N: 2016950122 & Below)

$2252.99

$

Usually ships in 2-12 days

0

1

Simplicity 5600833

DECK SHELL W/DECALS, 72, 200XT-DOM

Note: (S/N: 2016950123 & Above)

$2172.99

$

Usually ships in 2-12 days

0

2

Simplicity 5100993

SPINDLE ASSM, CAST IRON 8.0-6 BOLT
(Superseded to 5100993SM)

Note: (S/N: 2016950122 & Below)

$219.99

$

In Stock, only 2 left!

0

2

Simplicity 5413009

ASSM, SPINDLE, LARGE CAST
(Superseded to 84003242)

Note: (S/N: 2016950123 & Above)

$351.99

$

In Stock, only 2 left!

0

3

Simplicity 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

4

Simplicity 5102227S

BLADE, 25 X 25 X 2.50, HIGH LIFT (SET OF 3)

$110.99

$

In Stock, only 4 left!

0

4

Simplicity 5102227YP

BLADE, 25 X 25 X 2.50, HIGH LIFT

$35.99

$

Usually ships in 2-12 days

0

5

Simplicity 5404834YP

CHUTE, DISCHARGE, BEND RUBBER (SV)

$158.99

$

Usually ships in 2-12 days

0

6

Simplicity 5408016A

WELD, FRAME, CHUTE, 72 - BLK

$76.99

$

Usually ships in 2-12 days

0

7

Simplicity 5408018A

SUPPORT, DICHARGE CHUTE, 61/72 - BLK
(Superseded to 5408018AFS)

$22.99

$

Usually ships in 2-12 days

0

8

Simplicity 5103045

ROD, MOUNT, CHUTE, 72, CZ

$15.99

$

Usually ships in 2-12 days

0

9

Simplicity 5407152D

GUARD, DECK, LH, S200XT-72 - RED
(Superseded to 5407152DFS)

$68.99

$

Usually ships in 2-12 days

0

10

Simplicity 5407153D

GUARD, DECK, RH, S200XT-72 - RED
(Superseded to 5407153DFS)

$68.99

$

Usually ships in 2-12 days

0

11

Simplicity 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

In Stock, only 1 left!

0

12

Simplicity 5407876A

PLATE, DEFLECTOR, 72 - BLK
(Superseded to 5407876AA)

$22.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, only 4 left!

0

14

Simplicity 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 9

0

16

Simplicity 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

17

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

18

Simplicity 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 7

0

19

Simplicity 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, only 3 left!

0

20

Simplicity 5025013X12

BOLT, 3/8-16 X 1-1/2 GD5 YZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

22

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

24

Simplicity 5600530

KIT, DISCHARGE CHUTE, 72, S200XT

Note: (INCLUDES # 5-7 & 20-22)

$

$

Not available

25

Simplicity 5102621

FLAP, STRIPER, 72 DECK
(Superseded to 5102621YP)

$106.99

$

Usually ships in 2-12 days

0

26

Simplicity 5406164A

PLATE, SUPPORT, 72 - BLK

$34.99

$

Usually ships in 2-12 days

0

27

Simplicity 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

28

Simplicity 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

29

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

30

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable
