3900 (5900598) - Massey Ferguson 72" Zero-Turn Mower, 36hp Briggs & Stratton 72" Mower Deck - Pulleys, Belt & Idler Arm S/N: 2016950123 & Above Parts Diagram

72" Zero-Turn Mower, 36hp Briggs & Stratton

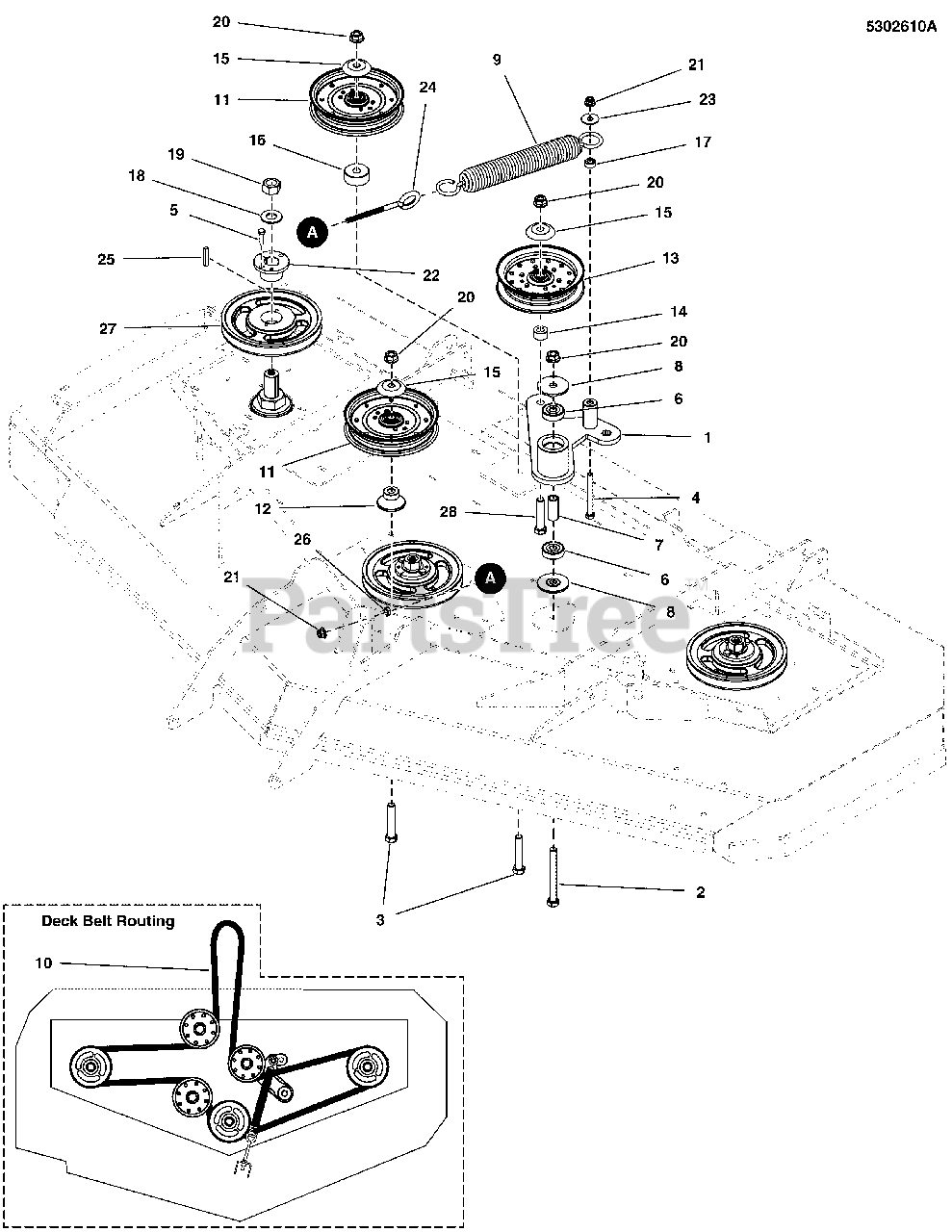

72" Mower Deck - Pulleys, Belt & Idler Arm S/N: 2016950123 & Above Parts Diagram

  • Title

1

Simplicity 5413128A

WELD, IDLER ARM, CUTTER DECKS - BLK

$142.99

$

Usually ships in 2-12 days

0

2

Simplicity 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5 CZ
(Superseded to 5025017X36SM)

$6.49

$

Usually ships in 2-12 days

0

3

Simplicity 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025013X28

BOLT, 3/8-16 X 3-1/2 GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, only 4 left!

0

5

Simplicity 5025010X18

BOLT, 1/4-20 X 2-1/4 GD5 CZ
(Superseded to 5025010X18SM)

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 5104383

BEARING, 6203-1/2", SEALED
(Superseded to 5104383YP)

$9.99

$

In Stock, only 4 left!

0

7

Simplicity 5104381

SPACER, .510 X .750 X 1.749, CZ
(Superseded to 5104381YP)

$11.99

$

Usually ships in 2-12 days

0

8

Simplicity 5104379

SPACER, IDLER ARM, 1/2 X 2.25
(Superseded to 5104379YP)

$8.99

$

Usually ships in 2-12 days

0

9

Simplicity 5104166

SPRING, EXT, 1.5ODX12.25X.234WIRE BLK
(Superseded to 5104166YP)

$74.99

$

In Stock, only 1 left!

0

10

Simplicity 5104059

BELT, 5V, 193.90"EL, LRG ARAMID, WRP, RC
(Superseded to 5104059YP)

$154.99

$

Usually ships in 2-12 days

0

11

Simplicity 5103800

PULLEY, FLAT IDLER, 6-3/4"
(Superseded to 5102831)

$

$

Not available

12

Simplicity 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, only 2 left!

0

13

USE 5104716 PULLEY + 5105145 SHIELD

$

$

Not available

14

Simplicity 5101162

SPACER, .52 X 1.00 X .56, PM, CZ
(Superseded to 5101162YP)

$7.49

$

In Stock, only 2 left!

0

15

Simplicity 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

$10.99

$

In Stock, only 1 left!

0

16

Simplicity 5046916

SPACER, .51 X 1.75 X .75
(Superseded to 5046916FS)

$27.99

$

Usually ships in 2-12 days

0

17

Simplicity 5044933

SPACER, .39 X .75 X .38, PM, CZ
(Superseded to 5044933SM)

$4.99

$

In Stock, only 1 left!

0

18

Simplicity 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, only 2 left!

0

20

Simplicity 5025396

NUT, 1/2-13 HEX NYLOCK FLANGE
(Superseded to 770225)

$3.49

$

In Stock, only 1 left!

0

21

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 5020819

BUSHING, TAPERED HUB
(Superseded to 5020819SM)

$26.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 3 left!

0

24

Simplicity 5021812

EYE BOLT, 3/8-16 X 6, 3THRD, 1EYE, CZ
(Superseded to 5021812SM)

$5.99

$

Usually ships in 2-12 days

0

25

Simplicity 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$4.99

$

In Stock, only 2 left!

0

26

Simplicity 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

Usually ships in 2-12 days

0

27

Simplicity 5022794

PULLEY, SPINDLE, BH72
(Superseded to 5022794FS)

$97.99

$

Usually ships in 2-12 days

0

28

Simplicity 5025017X20

BOLT, 1/2-13 X 2-1/2 GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, only 2 left!

0
