3900 (5900598) - Massey Ferguson 72" Zero-Turn Mower, 36hp Briggs & Stratton Fuel Tank & Mount Group - 72" Models Parts Diagram

72" Zero-Turn Mower, 36hp Briggs & Stratton

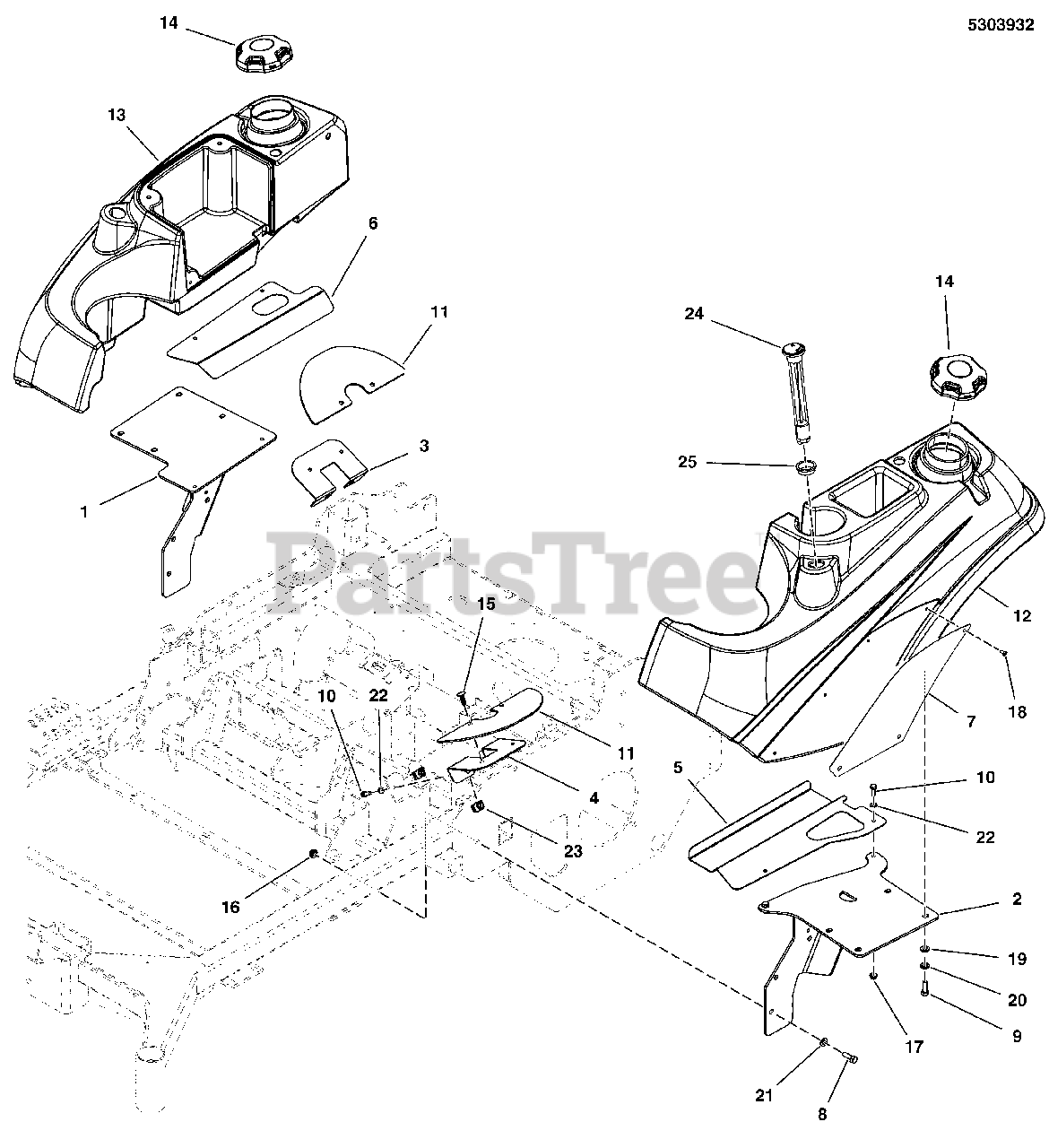

Fuel Tank & Mount Group - 72" Models Parts Diagram

  • Title

1

Simplicity 5413317A

WELD, FUEL MOUNT, RH, MASSEY 3900 - BLK

$

$

Not available

2

Simplicity 5413316A

WELD, FUEL MOUNT, LH, MASSEY 3900 - BLK

$

$

Not available

3

Simplicity 5413015A

GUARD,MOTION CONTROLS,RH,MASSEY 3900-BLK

$

$

Not available

4

Simplicity 5413014A

GUARD,MOTION CONTROLS,LH,MASSEY 3900-BLK

$

$

Not available

5

Simplicity 5416058A

GUARD, SEAT, LH - BLK
(Superseded to 5416058AFS)

$37.99

$

Usually ships in 2-12 days

0

6

Simplicity 5415046A

GUARD, SEAT, RH - BLK
(Superseded to 5415046AFS)

$16.99

$

Usually ships in 2-12 days

0

7

Simplicity 5401095D

PLATE, TANK BADGE - IS2000/COBALT - RED

$

$

Not available

8

Simplicity 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

9

Simplicity 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

10

Simplicity 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 5401248

GUARD, RUBBER MOTION CONTROL
(Superseded to 5401248SM)

$8.99

$

Usually ships in 2-12 days

0

12

Simplicity 5103178

TANK, FUEL, 5.75 GAL,MED, Z-LH, LOW PERM
(Superseded to 5103178YP)

$691.99

$

Usually ships in 2-12 days

0

13

Simplicity 5103177

TANK, FUEL, 5.25 GAL,MED, Z-RH, LOW PERM
(Superseded to 5103177YP)

$640.99

$

Usually ships in 2-12 days

0

14

Simplicity 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$41.99

$

In Stock, only 1 left!

0

15

Simplicity 5025431

PUSH RIVET (TREE TYPE), BLACK
(Superseded to 5025431SM)

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

Note: (5025391)

$4.49

$

In Stock, only 3 left!

0

18

Simplicity 5025386

SCREW, #10-24 X 3/8 ALLEN BHBZ
(Superseded to 5025386SM)

$3.99

$

In Stock, only 2 left!

0

19

Simplicity 5025292

WASHER, 5/16 F436 FLAT
(Superseded to 5025292SM)

$4.49

$

In Stock, Qty 11

0

20

Simplicity 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

21

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

22

Simplicity 703332

WASHER, 1/4 SAE

Note: (5025154)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

24

Simplicity 5022197

FUEL GAUGE, 12" (SV)

$

$

Not available

25

Simplicity 5022197X1

GROMMET, FUEL GAUGE (SV)

$

$

Not available
