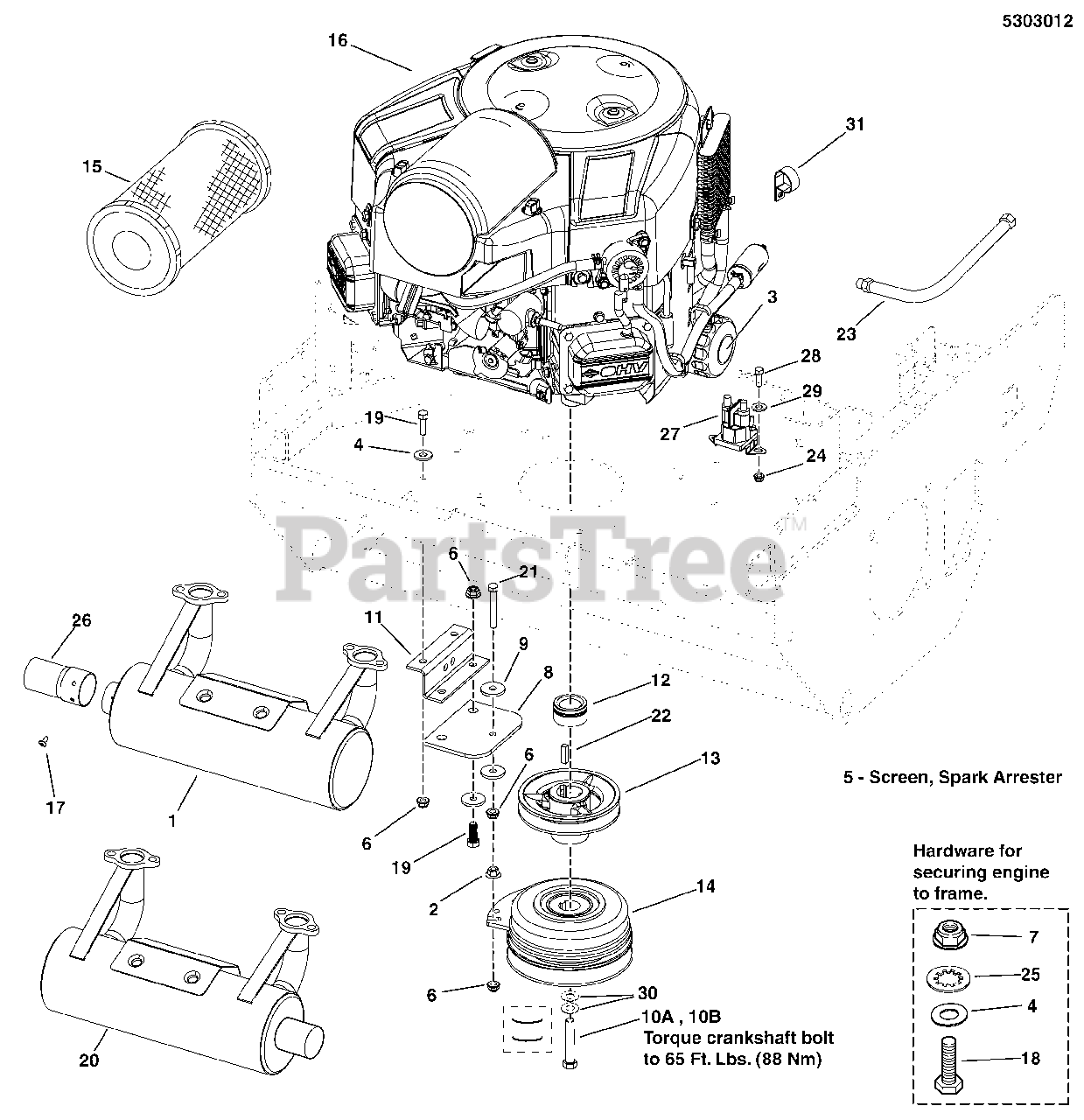

3900 (5901281) - Massey Ferguson 61" Zero-Turn Mower, 27hp Briggs & Stratton Engine & PTO Group - Commercial Turf Parts Diagram

61" Zero-Turn Mower, 27hp Briggs & Stratton

Engine & PTO Group - Commercial Turf Parts Diagram

  • Title

1

Simplicity 5100907

MUFFLER, B&S
(Superseded to 5100907SM)

Note: (S/N: 2016409321 & Below)(Was 696116)

$

$

Not available

2

Simplicity 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0

3

Simplicity 842921

OIL FILTER, BRIGGS & STRATTON

$14.99

$

In Stock, Qty 20+

0

4

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Simplicity 842859

SCREEN, SPARK ARRESTER
(Superseded to 843204)

Note: (Not Shown)

$136.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 5025616

NUT, 5/16-24, NYLOCK FLANGE, GD8, CZ
(Superseded to 5025616YP)

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

9

Simplicity 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

10a

Simplicity 5102865

BOLT, CRANKSHAFT, 7/16X2-3/4
(Superseded to 5102865YP)

Note: (S/N: 2015745414 & Above)

$5.49

$

Usually ships in 2-12 days

0

10b

Simplicity 5102864

BOLT, CRANKSHAFT, 7/16X2-1/2
(Superseded to 5102864YP)

Note: (S/N: 2015745413 & Below)

$5.49

$

In Stock, only 1 left!

0

11

Simplicity 5414825AYP

ANCHOR, CLUTCH - BLK

$13.99

$

Usually ships in 2-12 days

0

12

Simplicity 5100926

SPACER, 1.13 X 1.75 X 1.35, YZ
(Superseded to 5100926YP)

$27.99

$

In Stock, only 1 left!

0

13

Simplicity 5021682

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48
(Superseded to 5021682YP)

$48.99

$

Usually ships in 2-12 days

0

14

Simplicity 5105090

* CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$456.99

$

Usually ships in 2-12 days

0

15

Simplicity 798897

FILTER-AIR CLEANER

$31.99

$

In Stock, only 3 left!

0

16

ENGINE, B&S, COMM TURF

$

$

Not available

17

Simplicity 5025470

SCREW,SELF-TAP,#8-32 X 3/8,WASH HEX, CZ
(Superseded to 5025470YP)

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8
(Superseded to 5025025X14YP)

$4.49

$

Usually ships in 2-12 days

0

19

Simplicity 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 593249

MUFFLER, RIGHT OUTLET ASSY
(Superseded to 706900)

Note: (S/N: 2016409322 & Above)

$222.99

$

In Stock, only 2 left!

0

21

Simplicity 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

22

Simplicity 5050407X10

KEY, 1/4 SQ. X 1.25
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 2 left!

0

23

Simplicity 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

24

Simplicity 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

25

Simplicity 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

Usually ships in 2-12 days

0

26

Simplicity 5104348YP

EXTENSION, TAILPIPE, 3" - BLK

$14.99

$

Usually ships in 2-12 days

0

27

Simplicity 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

$29.99

$

Usually ships in 2-12 days

0

28

Simplicity 703338

BOLT,1/4-20X5/8

$3.99

$

Usually ships in 2-12 days

0

29

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 18

0

30

Simplicity 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

Note: (S/N: 2015745414 & Above)

$4.49

$

Usually ships in 2-12 days

0

31

Simplicity 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

Note: (Model # 5901240)

$4.49

$

Usually ships in 2-12 days

0
