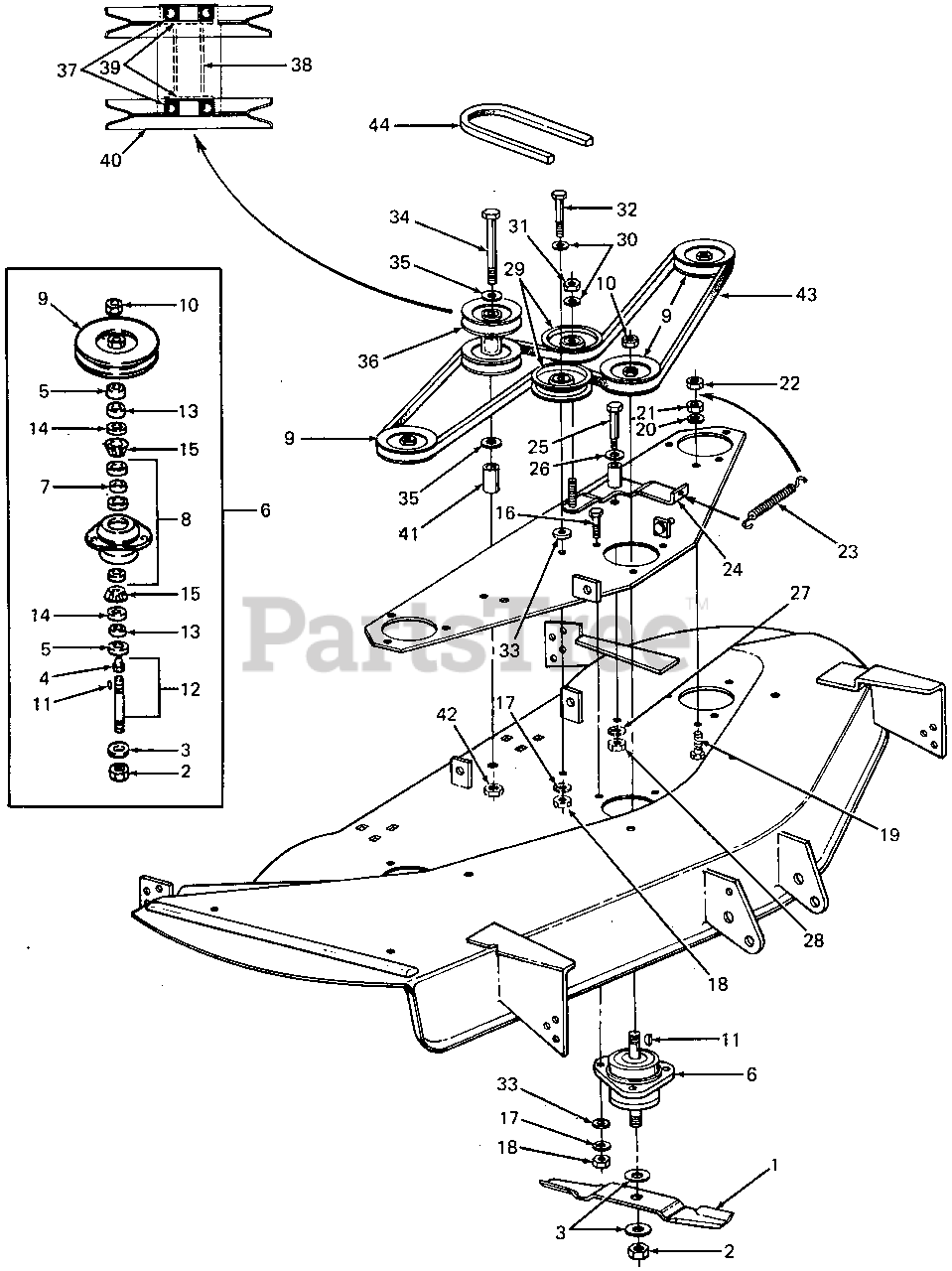

392 (190-392-100) - Cub Cadet 44" Mower Deck att Spindles, Pulleys & Blades Parts Diagram

44" Mower Deck

Spindles, Pulleys & Blades Parts Diagram

  • Title

1

Cub Cadet 742-3002

Blade, Mower, 15.12 Lg
(Superseded to 759-3812)

Variations

Cub Cadet 742-3002-0637

Mower Blade, 15.12" Lg - POWDER BLACK (0637)

$26.99

$

In Stock, Qty 8

0

$26.99

$

In Stock, Qty 8

0

Cub Cadet 759-3402

Blade Mower, Hard Coated
(Superseded to 759-3838)

$71.99

$

In Stock, Qty 11

0

2

Cub Cadet 712-3018

Nut, Hex, 3/4-16 GR8

$8.49

$

In Stock, Qty 10

0

3

Cub Cadet 736-3014

Washer, Flat, .781 X 2.0 X .105 Thk HDN

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 737-3000

Fitting, Lube, 3/16
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 703-1387

Cup, Spindle HDN
(Superseded to 903-1387)

$23.99

$

In Stock, Qty 16

0

6

Cub Cadet 759-3293

Spindle Service Kit
(Superseded to 959-3293)

Note: (Includes Mounting Hardware)

$

$

Not available

7

Cub Cadet 741-3030

Spacer, Bearing
(Superseded to 941-3030)

$11.99

$

In Stock, Qty 6

0

8

Cub Cadet 759-3226

Housing, Spindle w/Cups
(Superseded to 959-3226)

$124.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 756-3008

4L V-Pulley, 4.62 OD X .75 ID

$50.99

$

In Stock, Qty 16

0

10

Cub Cadet 712-3026

Nut, Hex Jam, 3/4-16

$4.99

$

In Stock, Qty 10

0

11

Cub Cadet 714-0135

Key, #91 Woodruff, 1/4 X 3/4 HDN

$4.49

$

In Stock, Qty 9

0

12

Cub Cadet 759-3369

Kit, Shaft w/Seal
(Superseded to 959-3369)

$78.99

$

In Stock, Qty 5

0

13

Cub Cadet 711-3171

Spacer, .755 X 1.25 X .44 Lg
(Superseded to 911-3171)

$10.99

$

In Stock, Qty 8

0

14

Cub Cadet 721-3018

Seal, Oil, 1.25 X 1.874 X .25
(Superseded to 921-3018A)

$7.99

$

In Stock, Qty 20+

0

15

Cub Cadet 741-3028

Cone, Bearing
(Superseded to 941-04298)

$15.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3017

Nut, Hex, 3/8-16

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0805

Screw, Hex Cap, 5/16-18 X 1.5 Lg GR5
(Superseded to 710-0805A)

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3010

Nut, Hex, 5/16-18

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18 GR5

$6.49

$

In Stock, Qty 20+

0

23

Cub Cadet 732-0480

Spring, Extension, .81 OD X 4.75 Lg

$

$

Not available

24

Cub Cadet 703-1291

Arm, Idler

$

$

Not available

25

Cub Cadet 738-3005

Bolt, Shoulder, .68 Dia X 1.56 Lg X 7/16-14 Trd
(Superseded to 638-04012A)

$20.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0287

Washer, Flat, .793 X 1.24 X .060 Thk

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 712-3019

Nut, Hex, 7/16-14 GR5

$6.49

$

In Stock, only 4 left!

0

29

Cub Cadet 756-3005

Pulley, Flat Idler, 3.88 OD X .38 ID

$42.99

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.49

$

In Stock, Qty 17

0

31

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 710-3144

Screw, Hex Cap, 3/8-16 X 2.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0258

Washer, Flat, .385 X 1.0 X .127 Thk

$4.49

$

In Stock, only 2 left!

0

34

Cub Cadet 710-3152

Bolt, Hex, 5/8-18 X 5.0 Lg GR5

$

$

Not available

35

Cub Cadet 736-0290

Washer, Flat, .630 X 1.0 X .063 Thk HDN

$6.49

$

In Stock, Qty 20+

0

36

Cub Cadet 703-1298

Pulley Assy, Double
(Superseded to 759-3651)

Note: [Order 759-3651 which includes Ref No. 37 (Qty 2), 38, 39 (Qty 2) & 40]

$241.99

$

In Stock, Qty 6

0

37

Cub Cadet 741-0155

Bearing, Ball, .62 ID X 1.38 OD X .44 Thk
(Superseded to 941-0155)

Note: (Used in 703-1298 Pulley Assy)

$22.99

$

In Stock, Qty 20+

0

Cub Cadet 741-0524

Bearing, Ball, .62 ID X 1.57 OD X .44 Thk
(Superseded to 941-0524A)

Note: (Used in 759-3651 Pulley Assy)

$21.99

$

In Stock, Qty 20+

0

38

Cub Cadet 750-3043

Spacer, Pulley, .64 ID X .81 OD X 2.25 Lg

Note: (Used in 703-1298 Pulley Assy)

$

$

Not available

Cub Cadet 750-3070

Spacer, Pulley, .64 ID X .88 OD X 2.15 Lg

Note: (Used in 759-3651 Pulley Assy)

$14.99

$

In Stock, only 2 left!

0

39

Cub Cadet 716-3020

Snap Ring, Internal
(Superseded to 916-3020)

Note: (Used in 759-3651 Pulley Assy)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 756-3051

Pulley, Double
(Superseded to 956-3051)

Note: (Used in 759-3651 Pulley Assy)

$140.99

$

In Stock, Qty 7

0

41

Cub Cadet 750-0270

Spacer, .64 X 1.25 X 1.00 Lg

$

$

Not available

42

Cub Cadet 712-0923

Nut, Hex Center Lock, 5/8-18

$6.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 754-3027

V-Belt, 1/2- X 86" Lg - A Full
(Superseded to 954-3027)

$51.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 754-3029

V-Belt, 4L X 59" Lg
(Superseded to 954-3029)

$32.99

$

In Stock, Qty 20+

0
