394 (190-394-100) - Cub Cadet 50" Mower Deck Deck Assembly 50" Parts Diagram

50" Mower Deck

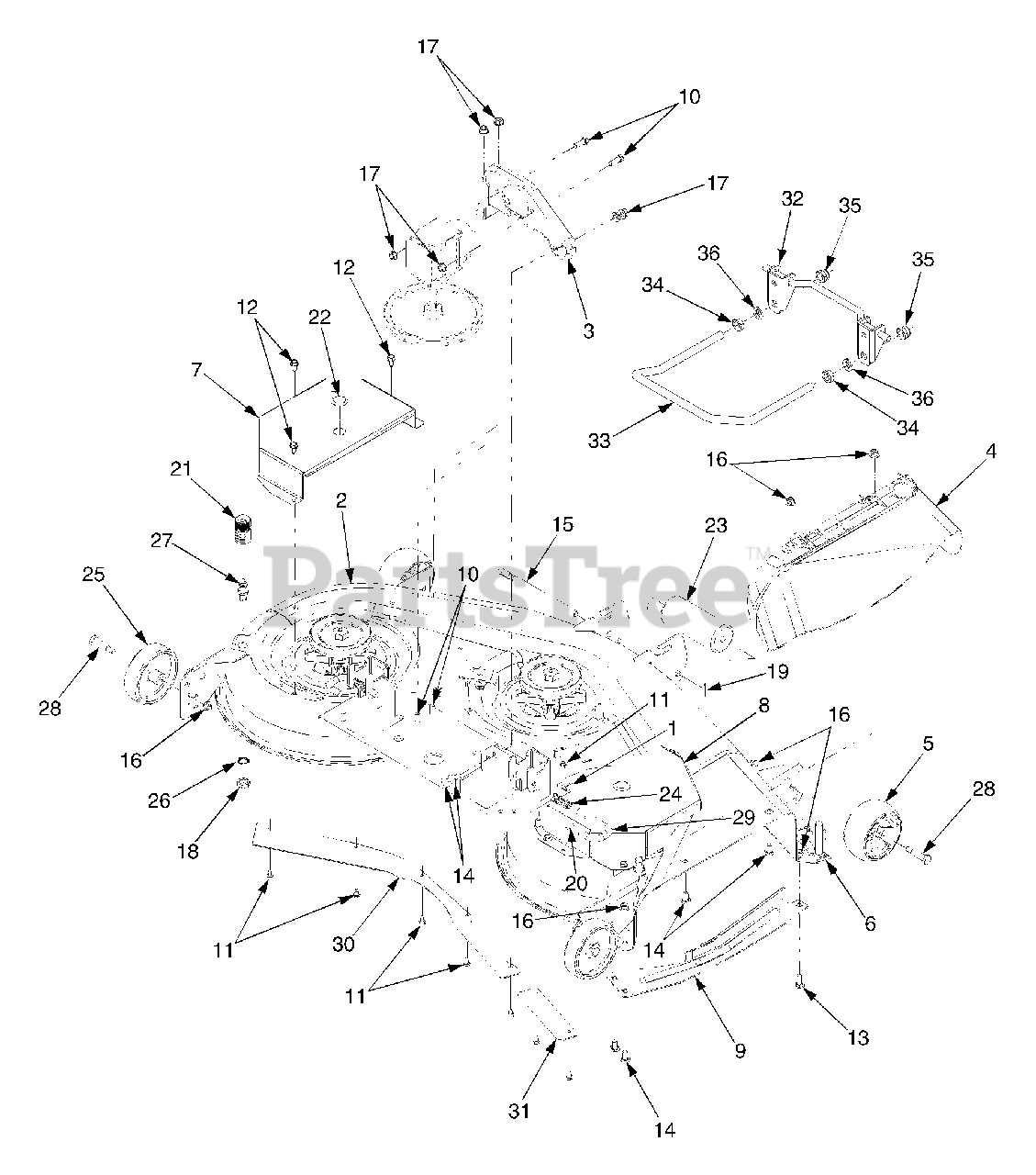

Deck Assembly 50" Parts Diagram

  • Title

1

Cub Cadet 16606

Bracket, Hook Retainer
(Superseded to 96606)

$7.99

$

In Stock, only 2 left!

0

2

Cub Cadet 603-04225

Deck Assembly

Variations

Cub Cadet 603-04225-0637

50" DECK SHELL - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 603-04225-0716

USE 903-04225A-0716 SHELL-50" - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 603-04225-4021

USE 903-04225A-4021 SHELL-50" - CUB YELLOW 2 (4021)

$

$

Not available

$

$

Cub Cadet 777S30015

Graphic, Rider Danger

$9.99

$

Usually ships in 3-6 days

0

Cub Cadet 777S30503

Graphic, Danger

$12.99

$

In Stock, only 2 left!

0

Cub Cadet 777D08336

Graphic, Deck Wash

$

$

Not available

3

Cub Cadet 603-0746-0716

Bracket, Drive Mounting

$

$

Not available

4

Cub Cadet 631-04070

Chute Assembly
(Superseded to 631-04070C)

$130.99

$

In Stock, Qty 8

0

Cub Cadet 711-1762

Pin, Hinge, .375 Dia x 14.06

$19.99

$

In Stock, only 4 left!

0

Cub Cadet 732-3070

Spring, Torsion
(Superseded to 732-3070A)

$12.99

$

In Stock, only 2 left!

0

Cub Cadet 783-04470

Bracket, Mounting

$35.99

$

In Stock, only 2 left!

0

Cub Cadet 777S30145

Graphic, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

5

Cub Cadet 634-04188

Wheel Assembly
(Superseded to 753-04856A)

$22.99

$

In Stock, Qty 20+

0

Cub Cadet 748-0108

Bearing, Flange
(Superseded to 948-0108)

$9.49

$

In Stock, Qty 18

0

Cub Cadet 737-0280

Fitting, Lube

$8.49

$

In Stock, only 4 left!

0

6

Cub Cadet 683-0617-0716

Bracket, Chute Stop
(Superseded to 683-0617A-0637)

$68.99

$

In Stock, only 2 left!

0

7

Cub Cadet 703-05546-0716

Shield, Spindle LH
(Superseded to 703-05546-4021)

$154.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-05556-0716

Shield, Spindle RH
(Superseded to 703-05556-4021)

$151.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-3511-0716

Guard, Finger

$

$

Currently unavailable

10

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0599

Screw, Hex Wash. Hd Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0726

Screw, Hex Wash. Hd Tapp 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 711-3314

Pin, Roller
(Superseded to 711-3314A)

$27.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04065

Nut, Hex Insert Lock, 3/8-16 GRF

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16 GRF
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0641

Nut, Hex, M16-1.5

$6.49

$

In Stock, Qty 9

0

19

Cub Cadet 714-3004

Pin Cotter, 3/32 x 1.25

$5.49

$

In Stock, Qty 5

0

20

Cub Cadet 715-3003

Pin, Spirol, 3/16 x 3/4

$7.49

$

In Stock, Qty 5

0

21

Cub Cadet 721-04041

Adapter, Water Nozzle
(Superseded to 921-04041)

$24.99

$

In Stock, Qty 20+

0

22

Cub Cadet 726-3045

Plug, Button
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 15

0

23

Cub Cadet 731-3005

Roller, Front

$30.99

$

In Stock, Qty 20+

0

24

Cub Cadet 732-3127

Spring, Compression
(Superseded to 932-3127)

$4.99

$

In Stock, Qty 15

0

25

Cub Cadet 734-0973

Wheel, Deck
(Superseded to 734-06265)

$13.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 736-0760

Washer, Lock

$4.49

$

In Stock, Qty 7

0

27

Cub Cadet 737-4003B

Nozzle, Deck Water

$

$

Currently unavailable

28

Cub Cadet 738-0373

Screw, Shoulder, .498 x 1.53:3/8-16
(Superseded to 938-0373)

$9.99

$

In Stock, Qty 20+

0

29

Cub Cadet 747-3188

Pin, Mower Support

$36.99

$

In Stock, Qty 6

0

30

Cub Cadet 783-04414A-0637

Skirt, Center
(Superseded to 783-04414A)

$34.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 783-04415-0637

Skirt RH

$32.99

$

In Stock, only 2 left!

0

32

Cub Cadet 603-0452A-0716

Bracket, Front Lift
(Superseded to 603-0452A-4021)

$

$

Not available

33

Cub Cadet 747-3386

Rod, Front Lift

$114.99

$

In Stock, only 4 left!

0

34

Cub Cadet 712-3015

Nut, Hex Jam 5/8-11

$4.99

$

In Stock, Qty 19

0

35

Cub Cadet 712-3016

Nut, Hex Lock 5/8-11

$7.49

$

In Stock, Qty 14

0

36

Cub Cadet 736-0158

Washer, Lock 5/8" I.D.

$4.99

$

In Stock, Qty 6

0
