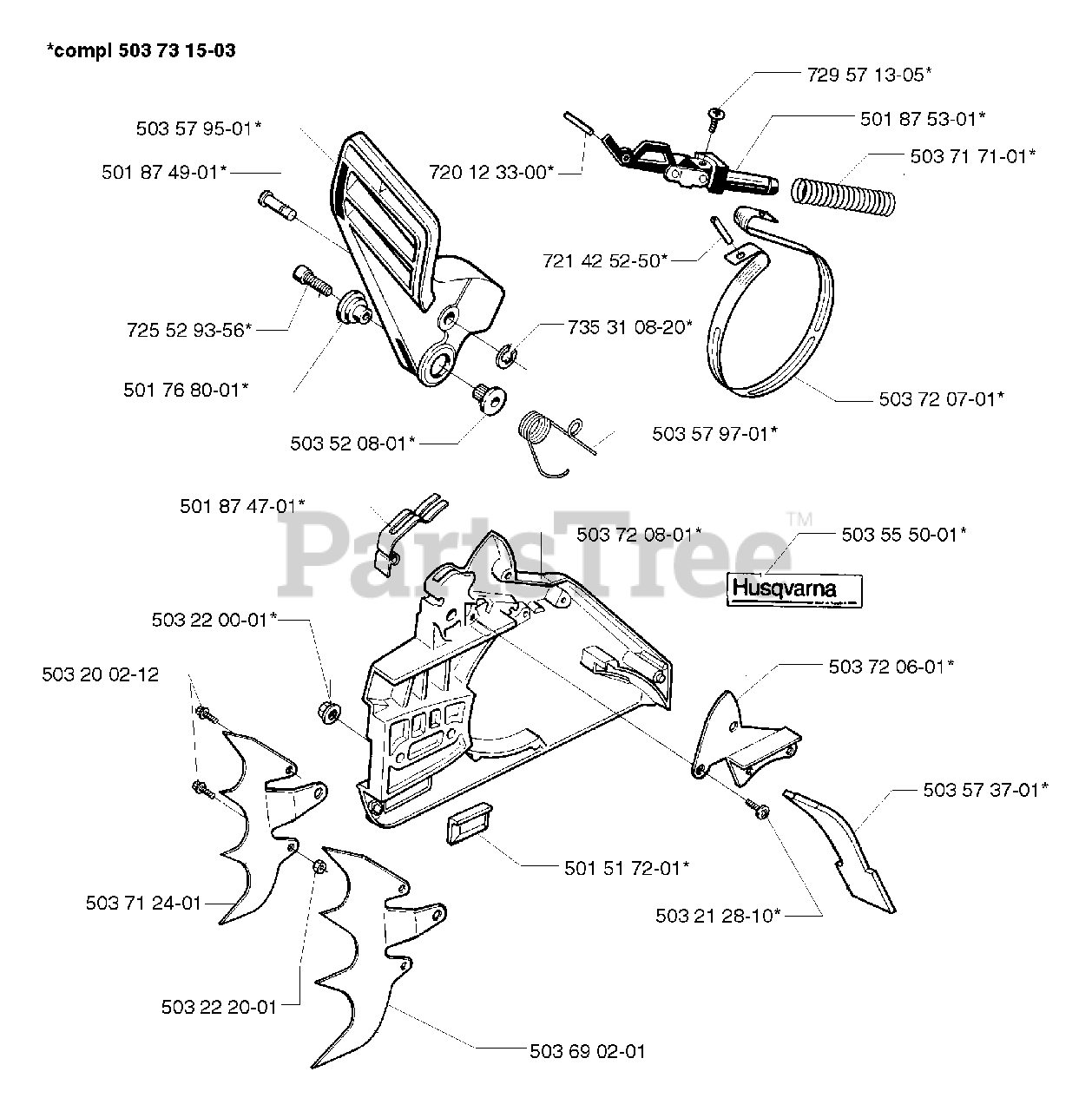

394 EPA - Husqvarna Chainsaw (1998-03) Chain Brake Assembly Parts Diagram

Chainsaw

Chain Brake Assembly Parts Diagram

  • Title

503731503

Husqvarna 503731503

CHAIN BRAKE COMPLETE
(Superseded to 503731506)

$136.99

$

In Stock, only 3 left!

0

503579501

Husqvarna 503579501

HAND GUARD CPL
(Superseded to 503760801)

$50.99

$

In Stock, only 2 left!

0

501874901

Husqvarna 501874901

PIVOT PIN
(Superseded to 503802701)

$9.49

$

In Stock, only 1 left!

0

720123300

Husqvarna 720123300

PIN 3X10

$5.99

$

In Stock, Qty 6

0

721425250

Husqvarna 721425250

SPIRAL PIN 4X12

$5.99

$

In Stock, Qty 7

0

725529356

Husqvarna 725529356

SCREW MC6S 4X16

$5.99

$

In Stock, Qty 5

0

501768001

Husqvarna 501768001

PIVOT SLEEVE R

$9.99

$

In Stock, Qty 13

0

503520801

Husqvarna 503520801

PIVOT SLEEVE L

$12.99

$

Usually ships in 3-10 days

0

501874701

Husqvarna 501874701

SPRING

$7.99

$

In Stock, Qty 14

0

503220001

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

503200212

Husqvarna 503200212

SCREW
(Superseded to 503200712)

$7.49

$

In Stock, Qty 20+

0

503712401

Husqvarna 503712401

FELLING DOG

$31.99

$

In Stock, only 1 left!

0

503222001

Husqvarna 503222001

STOVER NUT M5
(Superseded to 503222302)

$

$

Not available

503690201

Husqvarna 503690201

FELLING DOG

$44.99

$

Usually ships in 3-10 days

0

501517201

Husqvarna 501517201

CHAIN GUIDE

$8.99

$

In Stock, Qty 18

0

503212810

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

503573701

Husqvarna 503573701

PROTECTOR

$11.99

$

In Stock, only 1 left!

0

503720601

Husqvarna 503720601

LID

$13.99

$

Usually ships in 3-10 days

0

503555001

Husqvarna 503555001

STICKER
(Superseded to 537329501)

$5.99

$

In Stock, only 4 left!

0

503720801

Husqvarna 503720801

CLUTCH COVER
(Superseded to 503731506)

$136.99

$

In Stock, only 3 left!

0

503579701

Husqvarna 503579701

SPRING

$9.49

$

Usually ships in 3-10 days

0

503720701

Husqvarna 503720701

BRAKE BAND
(Superseded to 503720702)

$22.99

$

Usually ships in 3-10 days

0

735310820

Husqvarna 735310820

E-RING 4

$4.99

$

In Stock, Qty 20+

0

503717101

Husqvarna 503717101

BRAKE SPRING

$10.99

$

Usually ships in 3-10 days

0

729571305

Husqvarna 729571305

SCREW
(Superseded to 503212810)

$3.99

$

In Stock, Qty 20+

0

501875301

Husqvarna 501875301

KNEE-JOINT

$37.99

$

Usually ships in 3-10 days

0
