394 - Husqvarna Chainsaw (1992-01) Clutch Assembly Parts Diagram

Chainsaw

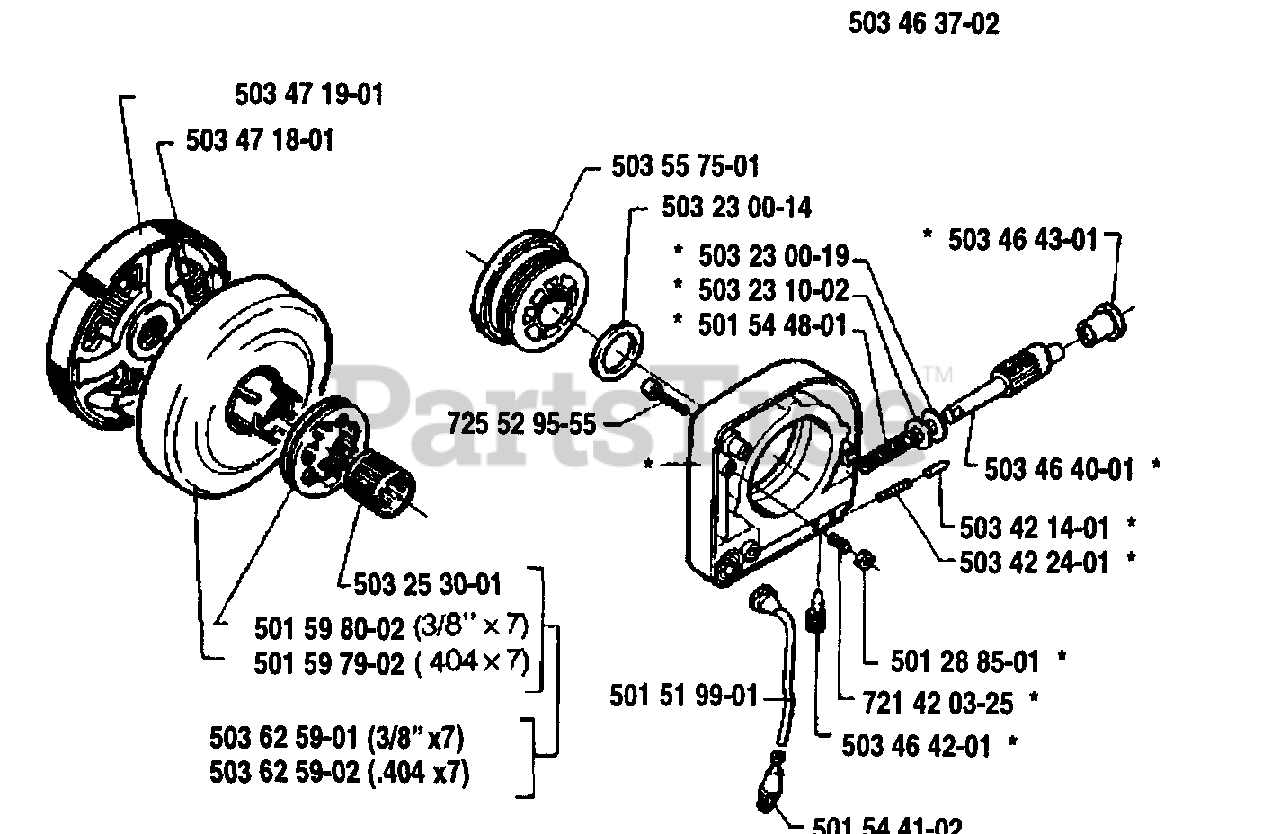

Clutch Assembly Parts Diagram

  • Title

503471901

Husqvarna 503471901

CLUTCH CPL
(Superseded to 503701501)

$102.99

$

Usually ships in 3-10 days

0

503471801

Husqvarna 503471801

SPRING

$8.99

$

In Stock, Qty 9

0

503463702

Husqvarna 503463702

OIL PUMP

$170.99

$

Usually ships in 3-10 days

0

503557501

Husqvarna 503557501

WORM GEAR

$17.99

$

In Stock, only 3 left!

0

503230014

Husqvarna 503230014

WASHER 15X24
(Superseded to 503230058)

$6.99

$

In Stock, Qty 12

0

503230019

Husqvarna 503230019

WASHER 6.6X11

$4.99

$

Usually ships in 3-10 days

0

503231002

Husqvarna 503231002

WASHER 6.6X11

$4.99

$

Usually ships in 3-10 days

0

503464301

Husqvarna 503464301

CAP

$6.99

$

Usually ships in 3-10 days

0

501544801

Husqvarna 501544801

SPRING

$5.99

$

Usually ships in 3-10 days

0

503464001

Husqvarna 503464001

PUMP PISTON

$22.99

$

Usually ships in 3-10 days

0

503421401

Husqvarna 503421401

PIN

$7.49

$

Usually ships in 3-10 days

0

503422401

Husqvarna 503422401

SPRING

$5.99

$

Usually ships in 3-10 days

0

501288501

Husqvarna 501288501

X-RING

$8.99

$

In Stock, only 1 left!

0

721420325

Husqvarna 721420325

SPRING PIN 3X6

$

$

Not available

503464201

Husqvarna 503464201

SCREW

$34.99

$

Usually ships in 3-10 days

0

501544102

Husqvarna 501544102

OIL SCREEN

$17.99

$

In Stock, Qty 5

0

501519901

Husqvarna 501519901

OIL HOSE

$17.99

$

In Stock, Qty 6

0

725529555

Husqvarna 725529555

SCREW MC6S 4X20
(Superseded to 725529556)

$5.99

$

In Stock, only 1 left!

0

503253001

Husqvarna 503253001

SUPPORT BUSHING

$22.99

$

In Stock, only 1 left!

0

501598002

Husqvarna 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

$8.49

$

In Stock, Qty 20+

0

501597902

Husqvarna 501597902

22270 RIMSPROCKET

$12.99

$

In Stock, only 4 left!

0

503625901

Husqvarna 503625901

CLUTCH DRUM CPL 3/8 7T
(Superseded to 503625903)

$75.99

$

In Stock, only 1 left!

0

503625902

Husqvarna 503625902

CLUTCH DRUM CPL .404 7T
(Superseded to 503625904)

$

$

Not available
