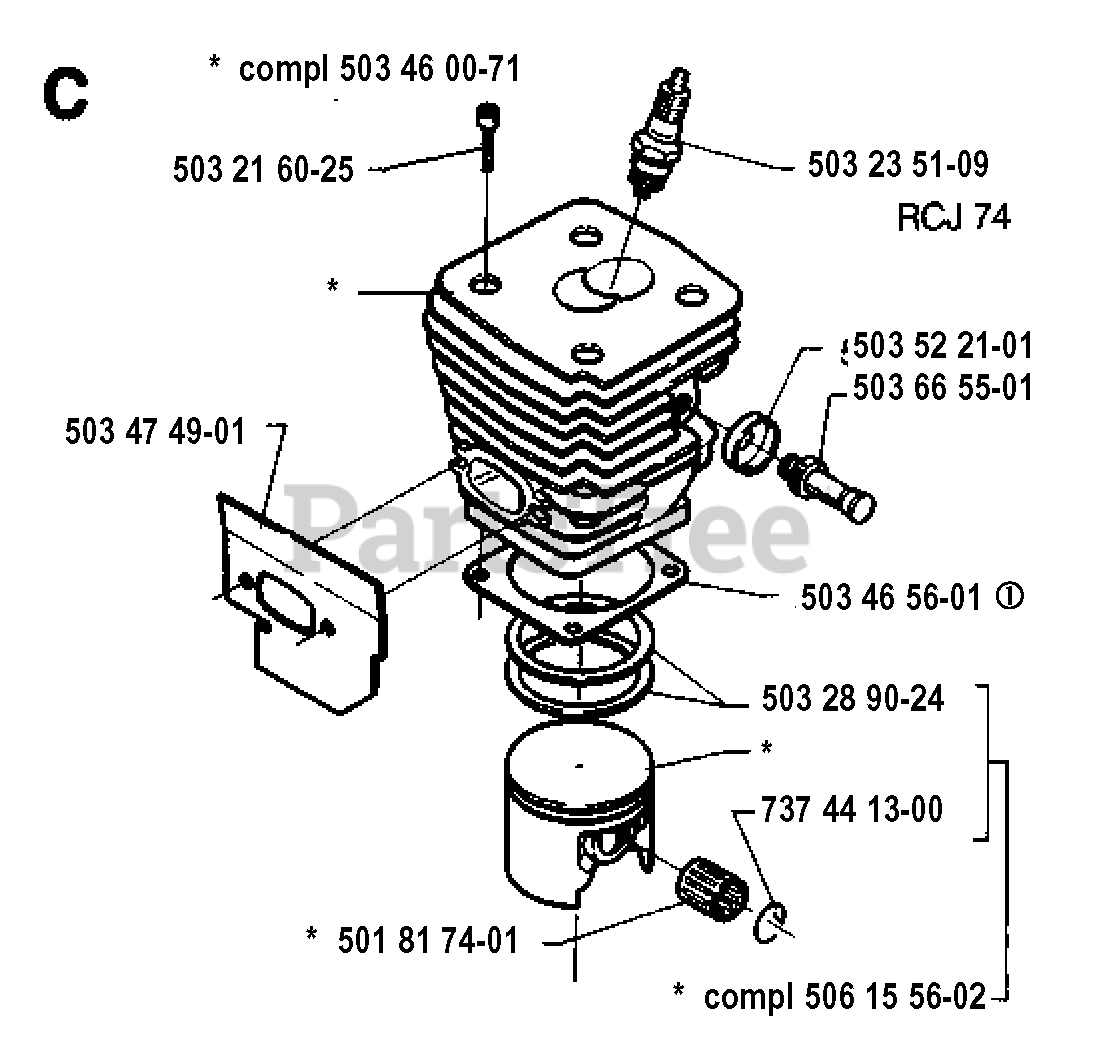

394 XP - Husqvarna Chainsaw (SN: 19924000001 - 19940100000) CYLINDER PISTON Parts Diagram

Chainsaw

CYLINDER PISTON Parts Diagram

  • Title

503 28 90-24

Husqvarna 503289024

PISTON RING

$36.99

$

In Stock, only 1 left!

0

503 47 20-01

Husqvarna 503472001

VALVE DECOMPR. 394
(Superseded to 503715301)

$37.99

$

In Stock, only 3 left!

0

503 23 51-09

Husqvarna 503235109

SPARK PLUG RCJ6Y NLA
(Superseded to 530030179)

Note: RCJ 74

$4.49

$

Usually ships in 3-10 days

0

503 46 56-01

Husqvarna 503465601

GASKET

$6.99

$

In Stock, only 2 left!

0

501 81 74-01

Husqvarna 501817401

NEEDLE BEARING
(Superseded to 503256101)

$32.99

$

Usually ships in 3-10 days

0

503 21 60-25

Husqvarna 503216025

SCREW

$4.99

$

In Stock, only 2 left!

0

737 44 13-00

Husqvarna 737441300

CLIP

$3.49

$

In Stock, only 2 left!

0

503 52 21-01

Husqvarna 503522101

WASHER

$

$

Not available

503 46 00-71

Husqvarna 503460071

Cylinder

$

$

Not available

506 15 56-02

Husqvarna 506155602

PISTON CPL 394
(Superseded to 503460202)

$171.93

$

Usually ships in 3-10 days

0

503 47 49-01

Husqvarna 503474901

EXHAUST GASKET

$11.99

$

Usually ships in 3-10 days

0
