394 XP - Husqvarna Chainsaw (SN: 19980900001 & Above) CLUTCH & OIL PUMP Parts Diagram

Chainsaw

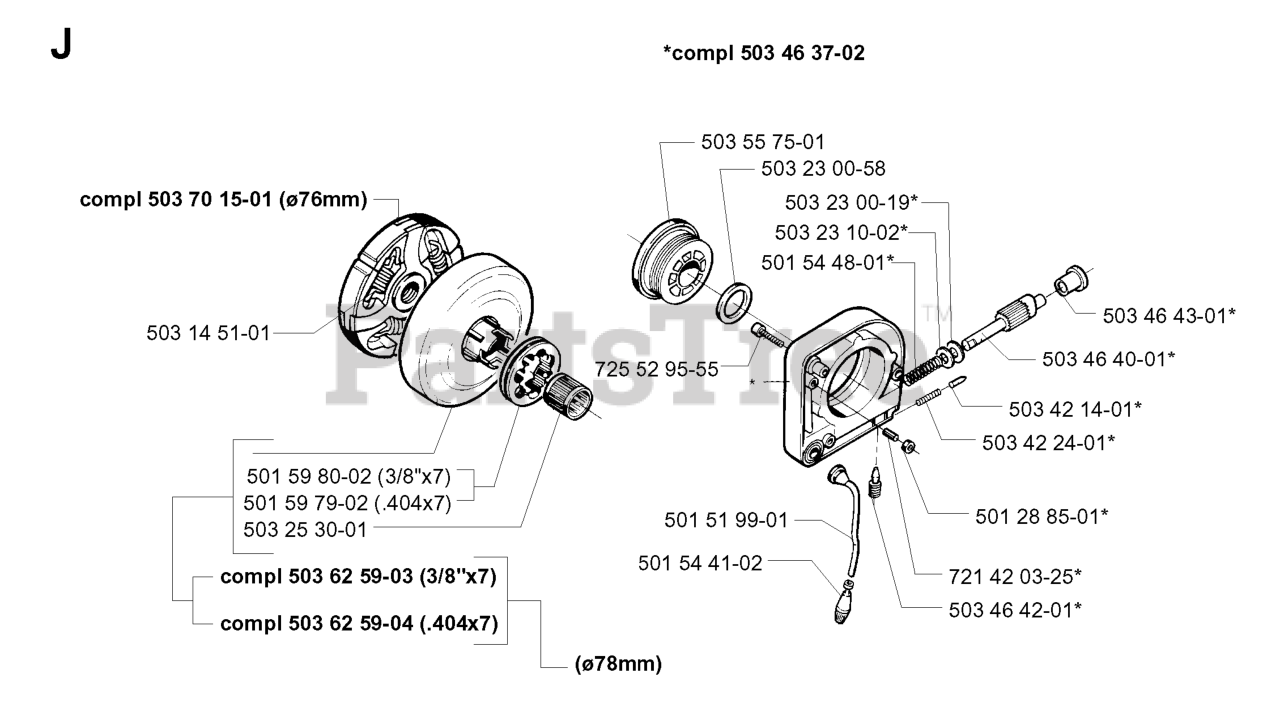

CLUTCH & OIL PUMP Parts Diagram

  • Title

503 46 40-01

Husqvarna 503464001

PUMP PISTON

$20.99

$

Usually ships in 3-10 days

0

503 70 15-01

Husqvarna 503701501

CLUTCH COMPLETE
(Superseded to 503701503)

Note: DIA.76MM

$

$

Not available

503 23 00-58

Husqvarna 503230058

WASHER

$3.49

$

In Stock, Qty 12

0

503 42 24-01

Husqvarna 503422401

SPRING

$3.49

$

In Stock, only 1 left!

0

503 62 59-03

Husqvarna 503625903

CLUTCH DRUM

Note: 3/8X7 DIA.78MM

$62.99

$

In Stock, only 2 left!

0

503 46 43-01

Husqvarna 503464301

CAP

$3.49

$

Usually ships in 3-10 days

0

503 25 30-01

Husqvarna 503253001

SUPPORT BUSHING

$13.99

$

In Stock, only 2 left!

0

503 62 59-04

Husqvarna 503625904

CLUTCH DRUM

Note: .404X7 DIA.78MM

$62.99

$

Usually ships in 3-10 days

0

501 54 41-02

Husqvarna 501544102

OIL SCREEN

$20.99

$

In Stock, Qty 10

0

503 23 00-19

Husqvarna 503230019

WASHER 6.6X11

$3.49

$

In Stock, only 1 left!

0

501 51 99-01

Husqvarna 501519901

OIL HOSE

$11.99

$

In Stock, Qty 12

0

503 23 10-02

Husqvarna 503231002

WASHER 6.6X11

$3.49

$

In Stock, only 1 left!

0

501 59 80-02

Husqvarna 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

Note: 3/8X7

$9.49

$

In Stock, only 2 left!

0

503 14 51-01

Husqvarna 503145101

CLUTCH SPRING

$11.99

$

In Stock, Qty 9

0

721 42 03-25

Husqvarna 721420325

SPRING PIN 3X6

$7.99

$

In Stock, Qty 9

0

501 54 48-01

Husqvarna 501544801

SPRING

$3.49

$

Usually ships in 3-10 days

0

725 52 95-55

Husqvarna 725529555

SCREW MC6S 4X20
(Superseded to 503202620)

$3.49

$

In Stock, only 2 left!

0

503 42 14-01

Husqvarna 503421401

PIN

$4.99

$

Usually ships in 3-10 days

0

503 46 42-01

Husqvarna 503464201

SCREW

$37.99

$

Usually ships in 3-10 days

0

503 46 37-02

Husqvarna 503463702

OIL PUMP

$193.99

$

Usually ships in 3-10 days

0

503 55 75-01

Husqvarna 503557501

WORM GEAR

$11.99

$

In Stock, only 2 left!

0

501 59 79-02

Husqvarna 501597902

22270 RIMSPROCKET

Note: .404X7

$13.99

$

In Stock, only 1 left!

0

501 28 85-01

Husqvarna 501288501

X-RING

$5.99

$

In Stock, Qty 12

0
