39514 - Toro 24" Stand-On Aerator (SN: 413000000 - 415299999) Electrical Assembly Parts Diagram

24" Stand-On Aerator

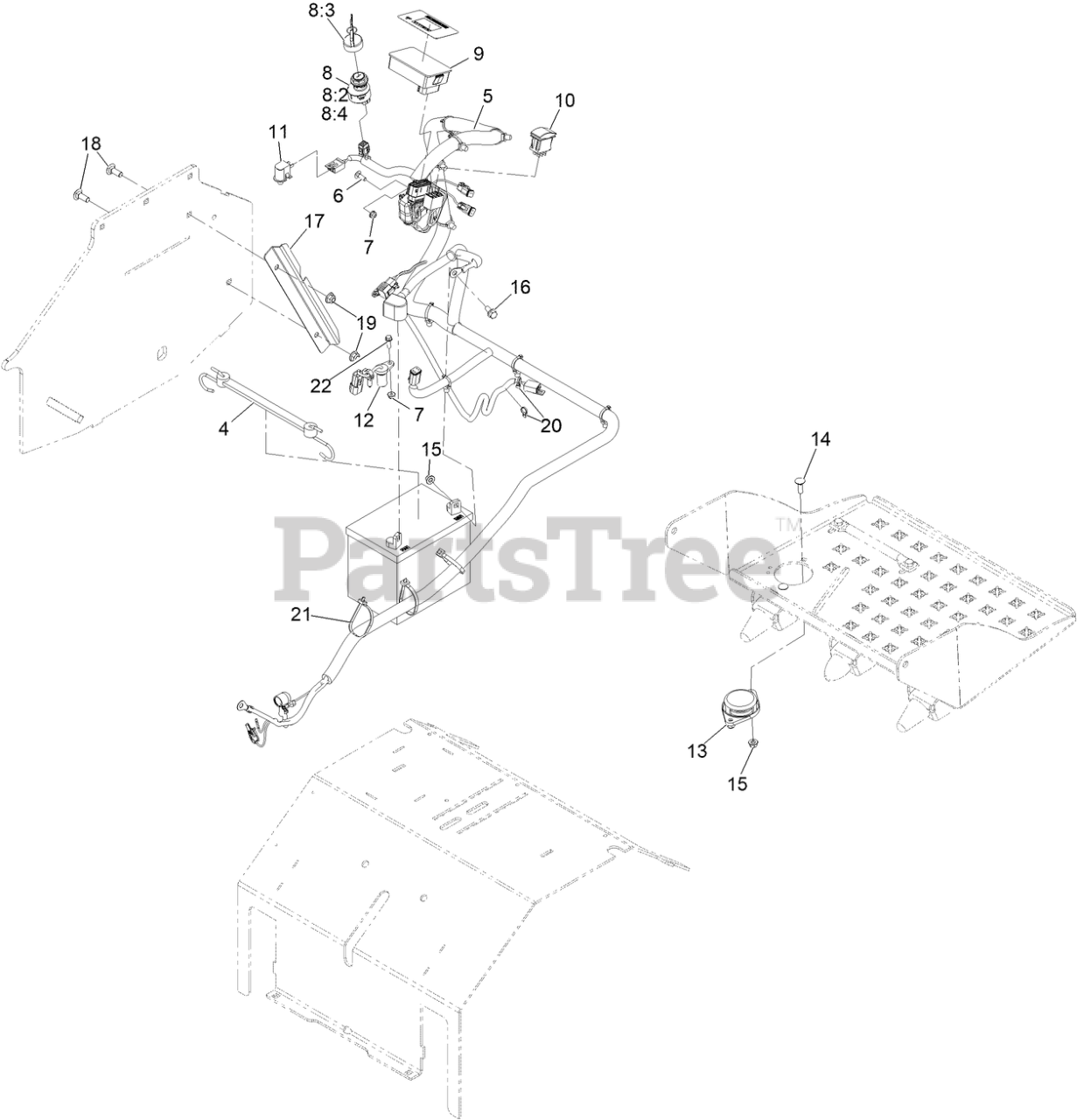

Electrical Assembly Parts Diagram

  • Title

4

Toro 104-2466

HOLDDOWN-BATTERY

$25.99

$

In Stock, only 2 left!

0

5

Toro 126-9535

HARNESS-WIRE

$458.99

$

In Stock, only 1 left!

0

6

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

7

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 126-6285

IGNITION SWITCH ASM

$58.99

$

In Stock, Qty 15

0

8:2

Toro 108-8660

NUT-MOUNTING

$37.99

$

In Stock, only 2 left!

0

8:3

Toro 106-5270

IGNITION KEY SET

$23.99

$

In Stock, Qty 14

0

8:4

Toro 108-8659

WASHER-BACKUP

$15.99

$

Usually ships in 3-6 days

0

9

Toro 135-2500

HOUR METER ASM

$289.99

$

In Stock, only 1 left!

0

10

Toro 100-1535

SWITCH

$95.99

$

In Stock, only 3 left!

0

11

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 6

0

12

Toro 135-0101

SENSOR-QUADRATURE

$226.99

$

Usually ships in 3-6 days

0

13

Toro 92-6282

SWITCH-SEAT

$36.99

$

In Stock, only 1 left!

0

14

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, only 1 left!

0

15

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 11

0

16

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

17

Toro 126-9701-03

GUARD-HARNESS

$16.99

$

Usually ships in 3-6 days

0

18

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

19

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

21

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

22

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0
