39901 - Toro Flex-Force Power System 60V MAX Snow Thrower (SN: 319000001 - 319999999) (2019) Electrical Assembly Parts Diagram

Flex-Force Power System 60V MAX Snow Thrower

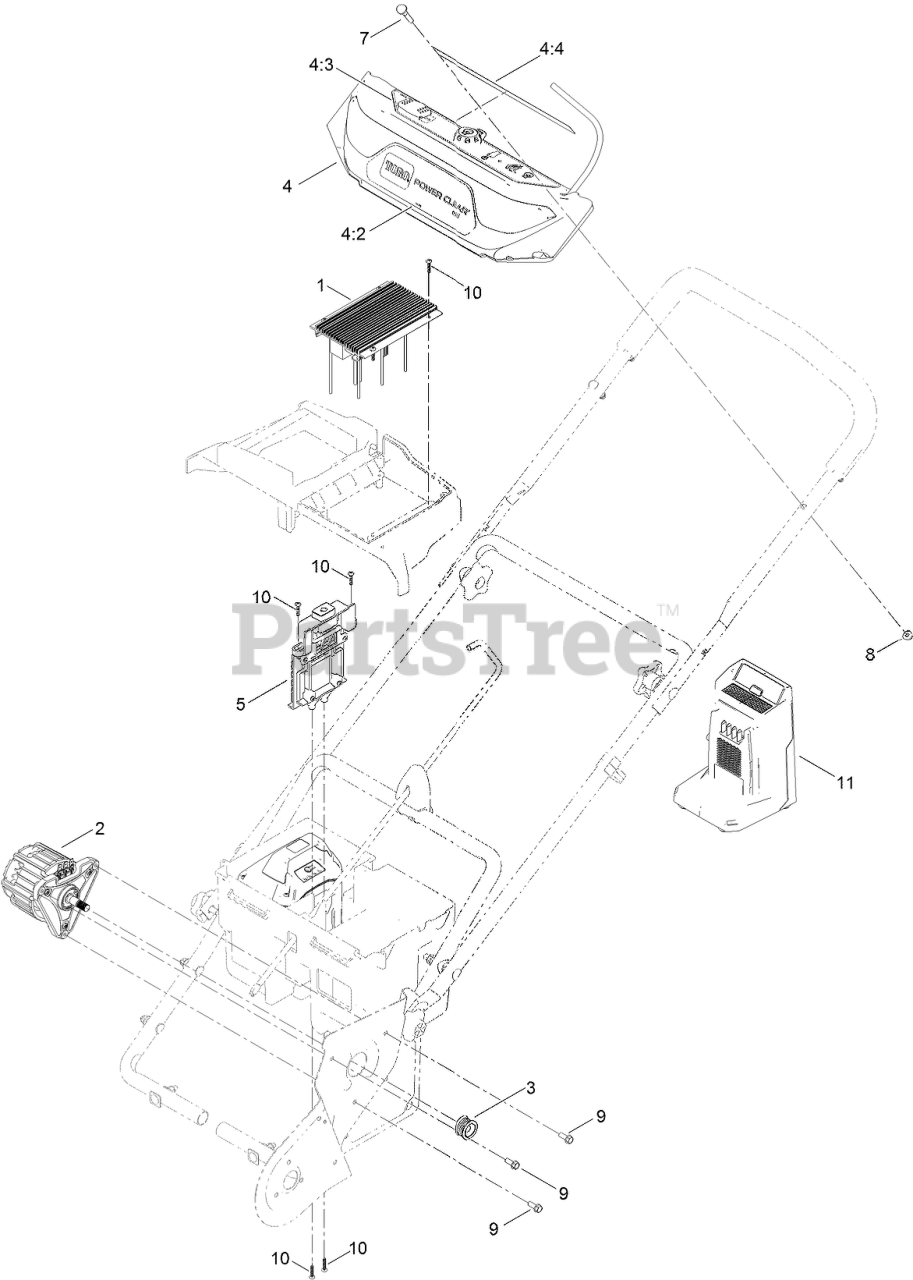

Electrical Assembly Parts Diagram

  • Title

1

Toro 137-9424

MOTOR-DRIVER, SNOW (60V)

$306.99

$

Usually ships in 3-6 days

0

2

Toro 137-9423

MOTOR-60V SNOWBLOWER

$

$

Currently unavailable

3

Toro 137-9433

PULLEY-MOTOR

$

$

Currently unavailable

4

Toro 137-2347

DASH PANEL ASM W/DECALS

$344.99

$

Usually ships in 3-6 days

0

4:2

Toro 137-2259

DECAL-POWER CLEAR

$9.99

$

In Stock, only 1 left!

0

4:3

Toro 137-2258

DECAL-OPERATION

$9.49

$

Usually ships in 3-6 days

0

4:4

Toro 137-2257

DECAL-CAUTION

$3.99

$

Usually ships in 3-6 days

0

5

Toro 137-9404

BATTERY TRACK ASM

$43.77

$

Usually ships in 5-8 days

0

6

Toro 137-9449

60V BATTERY, 3P 7.5AH

Note: Not illustrated

$

$

Currently unavailable

7

Toro 117-7737

SCREW-HANDLE

$2.49

$

In Stock, Qty 13

0

8

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

10

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

11

Toro 137-9439

CHARGER-60V (2A)
(Superseded to 88602)

$121.81

$

Usually ships in 5-8 days

0
