Toro 39915 T (e 24) - Toro 24" SnowMaster 60V Snow Thrower (SN: 400000000 - 999999999) Handles and Control Assembly Parts Lookup with Diagrams

1

Toro 120-2334-03

HANDLE-LOWER

$82.99

$

Usually ships in 3-6 days

2

Toro 120-2333-03

HANDLE-UPPER

$77.99

$

Usually ships in 3-6 days

3

Toro 120-2343

SLEEVE HANDLE

$5.49

$

Usually ships in 3-6 days

4

Toro 147-9402

HANDLE PP ASM W/ DECAL

$69.99

$

Usually ships in 3-6 days

5

Toro 120-2336

HANDLE-BOTTOM, LH

$5.49

$

Usually ships in 3-6 days

6

Toro 131-1770

HANDLE-BOTTOM, RH

$5.49

$

Usually ships in 3-6 days

7

Toro 131-5903

CABLE-GUIDE

$3.99

$

Usually ships in 3-6 days

8

Toro 120-2349

SCREW

$1.49

$

Usually ships in 3-6 days

9

Toro 131-5924

CABLE-TRANSMISSION

$25.99

$

In Stock, only 2 left!

10

Toro 120-2342-03

BRACKET-CHUTE, CONTROL

$34.99

$

Usually ships in 3-6 days

11

Toro 136-7150

BAR-CONTROL, TRACTION

$18.99

$

In Stock, only 2 left!

12

Toro 105-9987

SUPPORT-ROD

$9.49

$

In Stock, only 4 left!

13

Toro 131-5917

LEVER-TRACTION

$4.49

$

Usually ships in 3-6 days

14

Toro 131-1771

PIN-DOWEL

$0.99

$

Usually ships in 3-6 days

15

Toro 136-7130

LOCK-HANDLE

$5.99

$

In Stock, only 2 left!

16

Toro 130-2343

SPACER

$1.49

$

In Stock, Qty 7

17

Toro 136-7166

SPRING-TORSION

$3.99

$

In Stock, Qty 20+

18

Toro 137-3009

WASHER-CUP

$0.99

$

In Stock, Qty 8

19

Toro 106-4161

KNOB-HANDLE

$5.99

$

In Stock, Qty 20+

20

Toro 117-7737

SCREW-HANDLE

$2.49

$

In Stock, Qty 7

21

Toro 147-7523

ASM-BAIL

$45.99

$

Usually ships in 3-6 days

22

Toro 131-5901

BAIL-MOUNT

$4.49

$

Usually ships in 3-6 days

24

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 20+

25

Toro 120-2338

CABLE-ROTOR, UPPER

$28.99

$

In Stock, only 2 left!

26

Toro 92-7729

ANCHOR-CABLE, UPPER

$5.49

$

In Stock, Qty 19

27

Toro 131-1753

CABLE-ROTOR, LOWER

$28.99

$

In Stock, only 2 left!

28

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

29

Toro 147-9404

DECAL-CONTROL, PANEL

$5.49

$

Usually ships in 3-6 days

30

Toro 137-3109

BOLT-CARR

$1.99

$

Usually ships in 3-6 days

31

Toro 139-1699

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

32

Toro 137-3067

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

33

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

34

Toro 137-3108

SCREW-HANDLE

$4.99

$

In Stock, only 2 left!

35

Toro 137-3101

SCREW-PLASTIC,HWH

$1.49

$

In Stock, Qty 8

36

Toro 147-9400

HEADLIGHT-SNOWMASTER

$146.99

$

Usually ships in 3-6 days

40

Toro 147-7530

LEVER

$11.99

$

Usually ships in 3-6 days

41

Toro 147-7532

SPRING-TORSION

$1.99

$

Usually ships in 3-6 days

42

Toro 112-8884

KNOB

$7.49

$

In Stock, Qty 9

43

Toro 139-1709

SCREW-SHOULDER

$2.49

$

In Stock, only 2 left!

44

Toro 139-1712

NUT-HEX FLANGE

$0.99

$

Usually ships in 3-6 days

45

Toro 147-9403

DECAL-DISPLAY

$7.49

$

Usually ships in 3-6 days

46

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

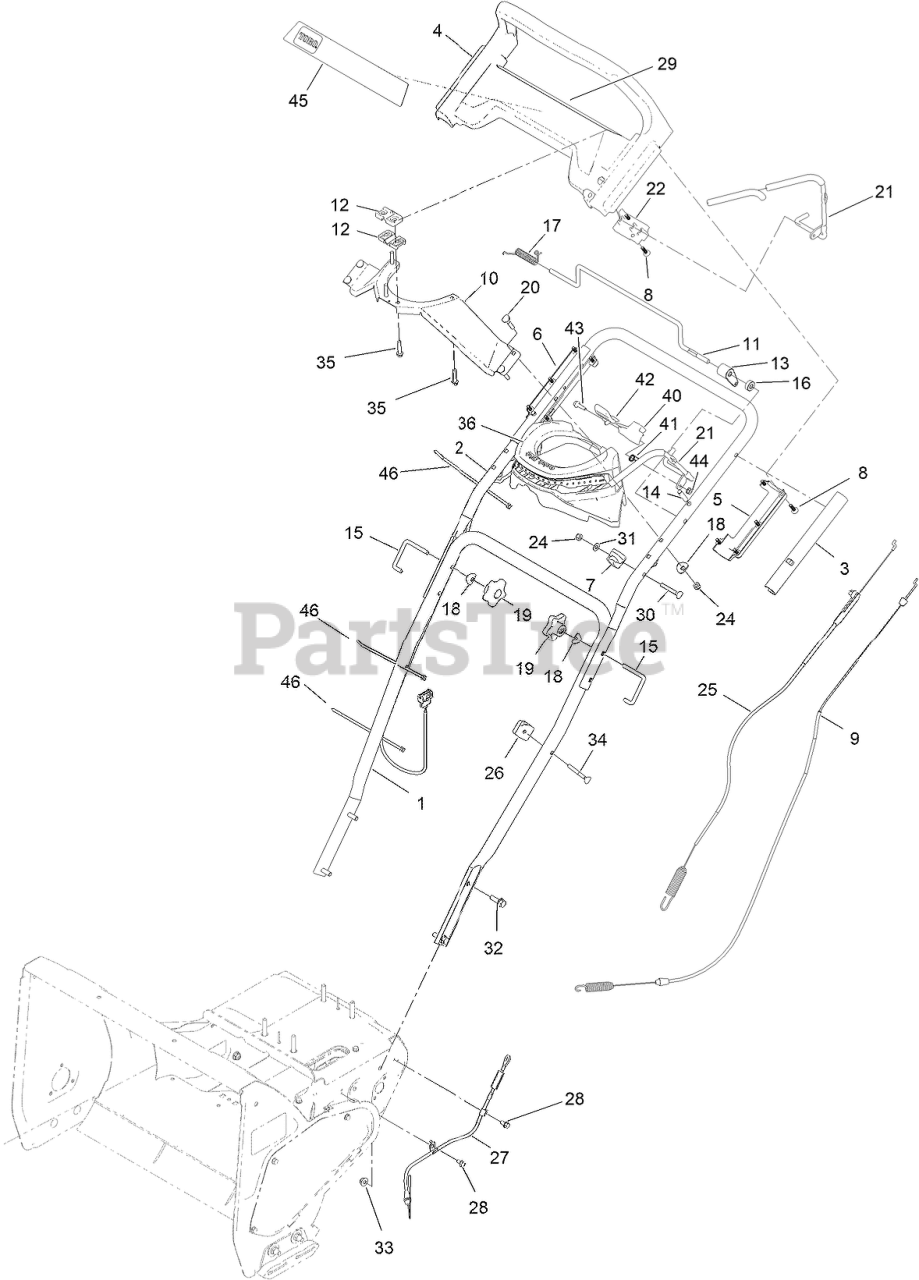

39915 T (e 24) - Toro 24" SnowMaster 60V Snow Thrower (SN: 400000000 - 999999999) Handles and Control Assembly Parts Diagram

Handles and Control Assembly Parts Diagram
