39921 T - Toro 21" Power Clear Flex-Force 60V MAX Snowthrower (SN: 415000000 - 999999999) Frame Assembly Parts Diagram

21" Power Clear Flex-Force 60V MAX Snowthrower

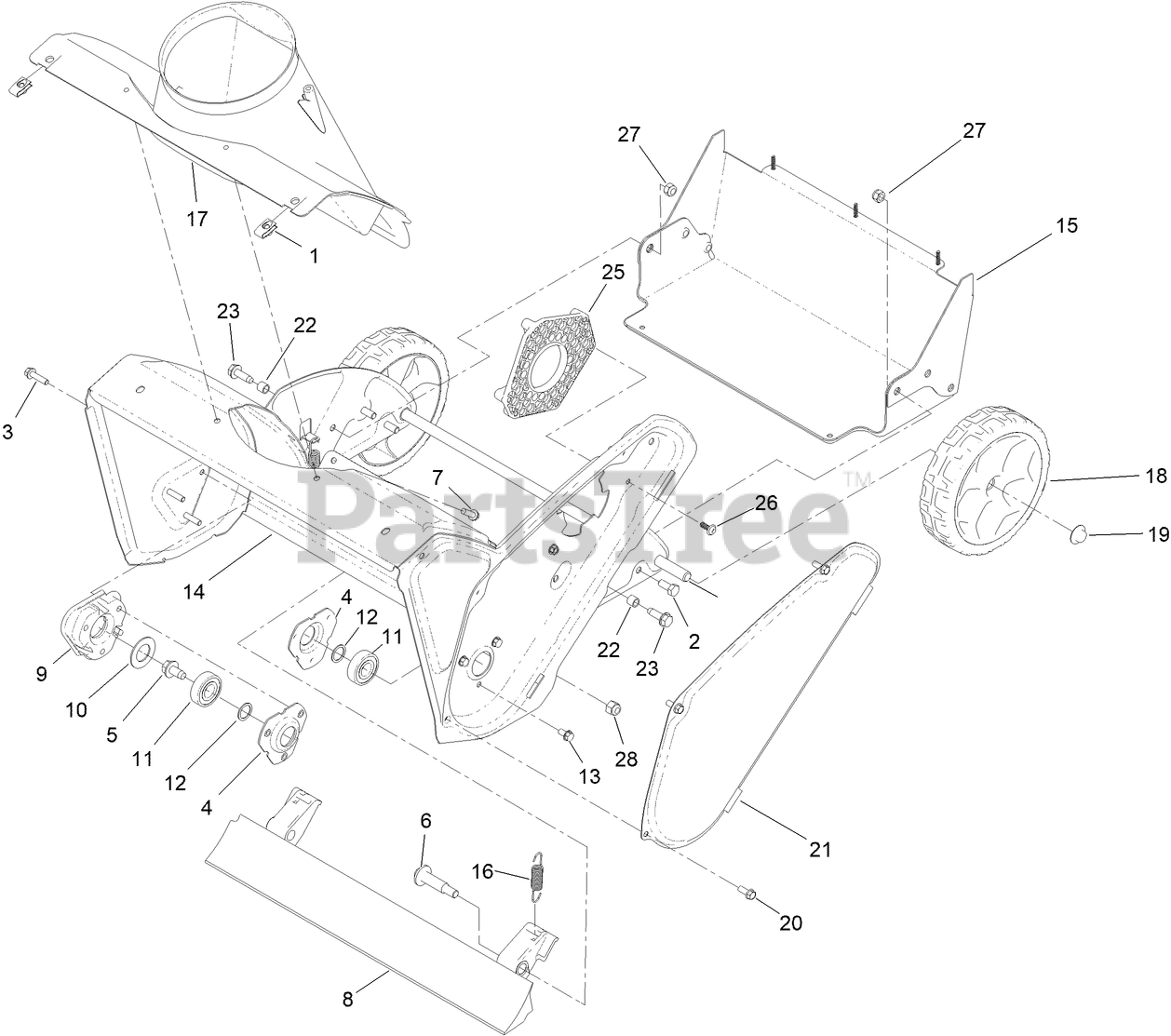

Frame Assembly Parts Diagram

  • Title

1

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

2

Toro 137-3052

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

3

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

4

Toro 136-7134

FLANGE-BEARING

$3.99

$

In Stock, only 2 left!

0

5

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 12

0

6

Toro 136-7198

BOLT-SHOULDER

$1.99

$

In Stock, Qty 20+

0

7

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

8

Toro 161-0963

BLADE-SCRAPER, PC21

$36.99

$

In Stock, only 2 left!

0

9

Toro 114-3781

SPACER-BEARING, RH

$8.99

$

In Stock, only 2 left!

0

10

Toro 110-9353

WASHER-RUBBER

$1.49

$

In Stock, Qty 15

0

11

Toro 38-7820

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

12

Toro 52-7280

WASHER-THRUST

$5.49

$

In Stock, Qty 20+

0

13

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

14

Toro 144-5865-03

HOUSING ROTOR, ASM [BLACK]

$277.99

$

Usually ships in 0 days

0

15

Toro 144-5855

support, large

$79.99

$

Usually ships in 0 days

0

16

Toro 147-9464

SPRING-EXTENSION

$2.49

$

In Stock, only 2 left!

0

17

Toro 108-4871

CHUTE-LOWER

$80.99

$

Usually ships in 3-6 days

0

18

Toro 138-8783

WHEEL ASM, 7 INCH

$25.99

$

In Stock, only 2 left!

0

19

Toro 32112-14

NUT-PUSH

$2.99

$

In Stock, Qty 8

0

20

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

21

Toro 108-4893-03

COVER-BELT

$23.99

$

In Stock, Qty 5

0

22

Toro 136-7148

SPACER-GROMMET

$1.49

$

In Stock, Qty 8

0

23

Toro 130-9795

SCREW-HWHTF

$1.49

$

Usually ships in 3-6 days

0

25

Toro 147-6555

MOUNT - MOTOR

$17.99

$

Usually ships in 3-6 days

0

26

Toro 138-5775

SCREW-DELTA POINT

$5.99

$

Usually ships in 0 days

0

27

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

28

Toro 137-3087

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0
