39921 T - Toro 21" Power Clear Flex-Force 60V MAX Snowthrower (SN: 415000000 - 999999999) Rotor and Rotor Drive Assembly Parts Diagram

21" Power Clear Flex-Force 60V MAX Snowthrower

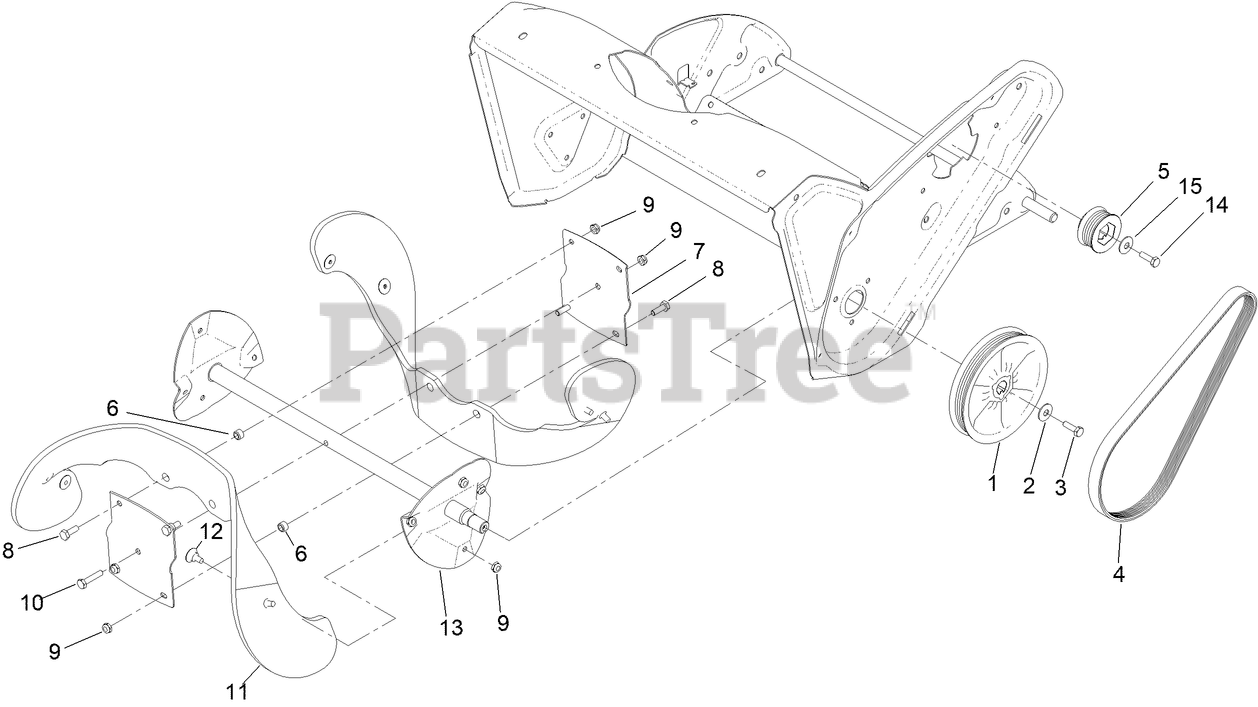

Rotor and Rotor Drive Assembly Parts Diagram

  • Title

1

Toro 138-8720

PULLEY-ROTOR

$22.99

$

In Stock, Qty 10

0

2

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

3

Toro 140-1002

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

4

Toro 147-1769

BELT-V, RIBBED STRETCH

$

$

Not available

5

Toro 147-1760

PULLEY-DRIVER (MACH)

$19.99

$

Usually ships in 0 days

0

6

Toro 55-9370

SPACER-BLADE, ROTOR

$2.99

$

In Stock, Qty 16

0

7

Toro 66-6600-03

HALF-ROTOR

$9.99

$

In Stock, Qty 5

0

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 321-8

SCREW-HH

$4.49

$

In Stock, Qty 15

0

11

Toro 161-2170

BLADE-ROTOR

$37.99

$

In Stock, Qty 10

0

12

Toro 84-1971

SCREW
(Superseded to 136-7182)

$0.99

$

In Stock, Qty 20+

0

13

Toro 131-6488-03

ROTOR

$

$

Currently unavailable

14

Toro 3211-4

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

15

Toro 108-1438

WASHER-HARDENED

$2.99

$

Usually ships in 3-6 days

0
