39926 (e 26) - Toro 26" Power Max 60V Snow Thrower (SN: 416500000 - 999999999) Main Frame and Auger Housing Assembly Parts Diagram

26" Power Max 60V Snow Thrower

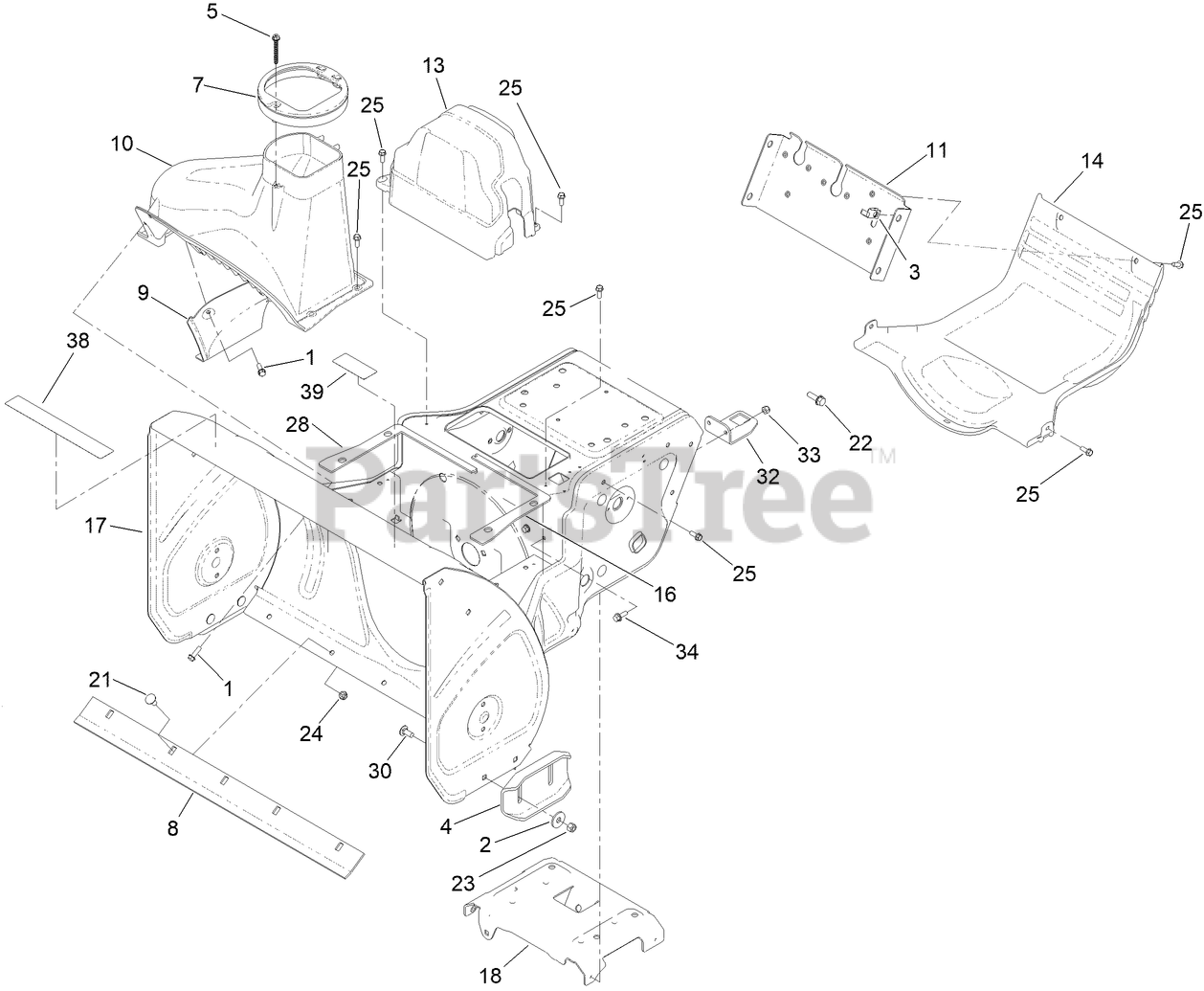

Main Frame and Auger Housing Assembly Parts Diagram

  • Title

1

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

2

Toro 52-2861

WASHER

$1.99

$

In Stock, only 1 left!

0

3

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 11

0

4

Toro 106-4588-01

SKID

$25.99

$

In Stock, Qty 19

0

5

Toro 114-3751

SCREW-HWH, PLASTITE

$1.99

$

In Stock, Qty 6

0

7

Toro 138-3608

GUIDE-CHUTE

$5.99

$

Usually ships in 3-6 days

0

8

Toro 120-3872-01

SCRAPER-26 INCH

$34.99

$

In Stock, Qty 5

0

9

Toro 120-7158-01

COVER-LINER

$12.99

$

In Stock, only 2 left!

0

10

Toro 120-7159

COVER

$112.99

$

In Stock, only 2 left!

0

11

Toro 120-7161-01

BRACE-FRAME

$17.99

$

Usually ships in 3-6 days

0

13

Toro 120-7177

COVER-BELT

$15.99

$

Usually ships in 3-6 days

0

14

Toro 120-7178

COVER-LOWER

$29.99

$

In Stock, only 1 left!

0

16

Toro 120-7181

SEAL-HOUSING, LH

$2.99

$

Usually ships in 3-6 days

0

17

Toro 147-9471

FRAME ASM

$676.99

$

Usually ships in 3-6 days

0

18

Toro 139-5270

BRACE-FRAME

$43.99

$

Usually ships in 3-6 days

0

21

Toro 3230-18

SCREW-CARR

$5.99

$

In Stock, Qty 8

0

22

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

23

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

25

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

28

Toro 121-6841

SEAL-HOUSING, RH

$2.99

$

In Stock, only 2 left!

0

30

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

32

Toro 137-3410-03

BRACKET-POST, CHUTE

$5.49

$

Usually ships in 3-6 days

0

33

Toro 120-9678

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

34

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

38

Toro 161-6032

DECAL - HARDENED GEARS
(Superseded to 161-6048)

$4.49

$

Usually ships in 3-6 days

0

39

Toro 161-6037

DECAL - COMPACT 26

$6.49

$

Usually ships in 3-6 days

0
