39984 - Toro 36" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Drive (SN: 280000001 - 280999999) (2008) DRIVE ASSEMBLY Parts Diagram

36" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Drive

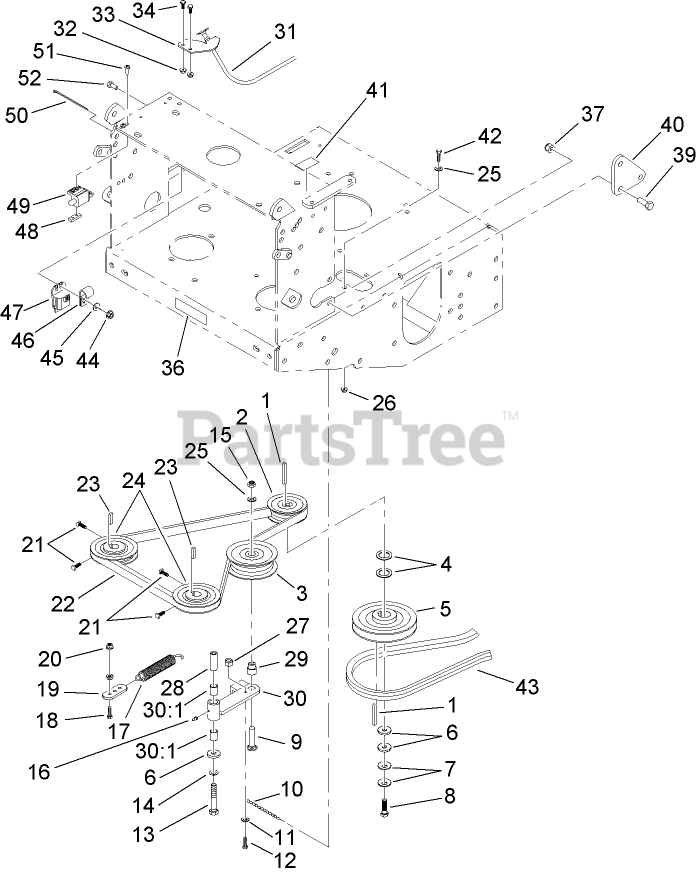

DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

2

Toro 1-653035

PULLEY

$72.99

$

Usually ships in 3-6 days

0

3

Toro 1-603843

PULLEY-IDLER
(Superseded to 132-4718)

$35.99

$

In Stock, Qty 20+

0

4

Toro 1-523157

WASHER-SPACER

$1.99

$

In Stock, Qty 20+

0

5

Toro 110-4891

PULLEY

$190.99

$

Usually ships in 3-6 days

0

6

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

7

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

8

Toro 3212-6

SCREW-HH

$2.49

$

In Stock, Qty 9

0

9

Toro 3231-29

SCREW-CARR

$7.99

$

In Stock, only 2 left!

0

10

Toro 1-323365

Chain-Link, Twist

$18.99

$

In Stock, only 1 left!

0

11

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 1-809069

SCREW-HSH

$3.49

$

In Stock, only 1 left!

0

13

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

15

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

16

Toro 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

17

Toro 1-603402

SPRING-EXTENSION

$8.49

$

In Stock, Qty 20+

0

18

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 1-603801

Anchor-Spring

$22.99

$

Usually ships in 3-6 days

0

20

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

21

Toro 1-803050

SCREW-SET

$2.99

$

In Stock, Qty 9

0

22

Toro 106-2740

V-BELT

$64.99

$

In Stock, Qty 7

0

23

Toro 1-807272

KEY

$6.49

$

In Stock, Qty 17

0

24

Toro 1-413010

SHEAVE ASM

$53.99

$

In Stock, Qty 12

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

27

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

0

29

Toro 1-603496

BUSHING-IDLER

$7.99

$

In Stock, Qty 20+

0

30

Toro 1-602521

Idler Arm ASM

$121.99

$

Usually ships in 3-6 days

0

30:1

Toro 103-4681

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

31

Toro 103-1796

Cable-Choke

$46.99

$

Usually ships in 3-6 days

0

32

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

33

Toro 103-1797-01

Bracket-Cable, Choke

$9.99

$

In Stock, only 1 left!

0

34

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 98-0776

DECAL-CAUTION

$

$

Not available

37

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

39

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

40

Toro 1-413497

Bellcrank

$37.99

$

Usually ships in 3-6 days

0

41

Toro 95-2814

DECAL-SHUT OFF, FUEL

$

$

Not available

42

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

43

Toro 108-6644

BELT-V

$116.99

$

In Stock, Qty 5

0

44

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

45

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Toro 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

47

Toro 1-323430

MODULE-INTERLOCK

$148.99

$

In Stock, Qty 5

0

48

Toro 1-633181

PLATE-TAPPED

$6.99

$

In Stock, Qty 17

0

49

Toro 1-513051

SWITCH-OPEN, NORMALLY

$20.99

$

In Stock, Qty 20+

0

50

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

51

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

52

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+
