39A70024 (39A70024100) - Cub Cadet Utility Vehicle 72" Manual Snow Blade att Snow Blade Parts Diagram

Utility Vehicle 72" Manual Snow Blade

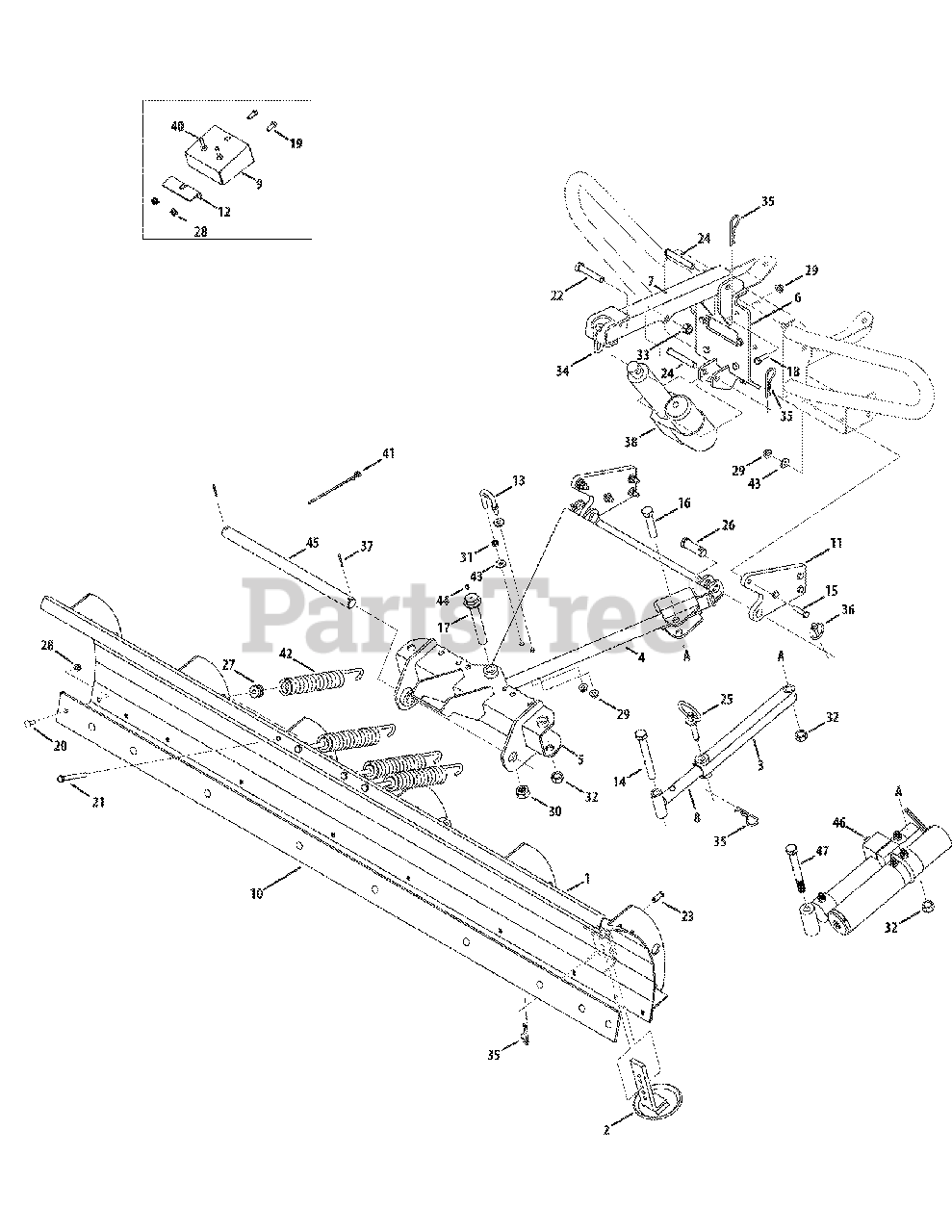

Snow Blade Parts Diagram

  • Title

1

Cub Cadet 603-04379-0637

Blade Assembly, 72"

$1486.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0810A-0637

Skid Shoe

$84.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 607-04251-0637

Adjustable Arm Assembly

$225.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 607-04317A

Plow Arm Assembly

Variations

Cub Cadet 607-04317A-0637

ARM ASSY-PLOW - POWDER BLACK (0637)

$553.99

$

Usually ships in 3-6 days

0

$553.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 607-04318A-0637

Snow Blade Mounting Assembly

$384.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 607-04320

Plow Lift Assembly
(Superseded to 607-04320-0637)

Variations

Cub Cadet 607-04320-0637

LIFT ASSY-PLOW - POWDER BLACK (0637)

$148.99

$

Usually ships in 3-6 days

0

$148.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 607-04323

Plow Lift Arm Assembly

$127.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 607-04324

Blade Adjustment Arm Assembly
(Superseded to 607Z04324)

$114.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 607-04332

Bracket Mount Assembly

Variations

Cub Cadet 607-04332-0637

BRACKET-SWITCH MTG - POWDER BLACK (0637)

$77.99

$

Usually ships in 3-6 days

0

$77.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-05971A-0637

Blade Scraper, 72"

$183.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 707-05232

Frame Mount

Variations

Cub Cadet 707-05232-0637

MOUNT-UV PLOW FRAM - POWDER BLACK (0637)

$98.99

$

Usually ships in 3-6 days

0

$91.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 707-05243

Strap Bracket

Variations

Cub Cadet 707-05243-0637

BRACKET-STRAP - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-04811

U-Bolt, 3/8-16

$11.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-04834

Hex Head Screw, 5/8-18 x 5.50

$9.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-0520

Hex Head Screw, 3/8-16 x 1.50

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0923

Hex Head Screw, 5/8-18 x 3.00

$10.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-1852

Spindle Bolt, 3/4-16 x 5.37

$30.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-3005

Hex Head Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3008

Hex Head Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3105

Carriage Bolt, 5/16-18 x .875

$6.49

$

In Stock, only 4 left!

0

21

Cub Cadet 710-3198

Hex Head Screw, 3/8-16 x 3.50

$9.99

$

In Stock, only 1 left!

0

22

Cub Cadet 710-3230

Hex Head Screw, 1/2-13 x 2.75

$12.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 711-0173

Clevis Pin, .375 dia. x .969
(Superseded to 711-04722)

$7.49

$

In Stock, only 3 left!

0

24

Cub Cadet 911-04067

Clevis Pin, .50 x 3.25
(Superseded to 711-06472)

$6.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 711-04678

Hitch Pin, .50 x 2.5

$21.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 711-05088

Clevis Pin, .750 Od. x 2.00 Lg.

$29.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 711-0635

Insert Spring

$47.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-1329

Hex Lock Nut, 3/4-16

$13.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 912-3008

Jam Nut, 3/8-16

$4.99

$

In Stock, Qty 12

0

32

Cub Cadet 712-3063

Hex Lock Nut, 5/8-18

$8.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 712-3083

Hex Lock Nut, 1/2-13

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 913-04060

Plow Lift Chain, No. 30

$3.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 714-0117

Internal Cotter Pin

$4.49

$

In Stock, Qty 15

0

36

Cub Cadet 714-0143A

Klick Pin

$6.99

$

In Stock, only 2 left!

0

37

Cub Cadet 914-0470

Cotter Pin
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 14

0

38

Cub Cadet 725-04500

Plow Lift Actuator

$1561.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 925-1053

On-Off-On Toggle Switch

Note: (2 used with optional Electric Angle

$111.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 732-04419

Adjustable Blade Spring

$39.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 736-3072

Flat Washer, .38 x .93 x .110

$4.99

$

In Stock, Qty 20+

0

44

Cub Cadet 737-04345

Grease Fitting, 1/4-28

$4.99

$

In Stock, only 4 left!

0

45

Cub Cadet 750-04784

Blade Pivot Rod

$67.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 39A70020100

Angle Actuator Complete

Note: (Optional - Electric Angle)

$

$

Not available

47

Cub Cadet 710-1627

Hex Head Screw, 5/8-18.5 x 5.25

$

$

Not available

Cub Cadet 753-04070

Lynch Pin, .1875

Note: Not Shown

$10.99

$

In Stock, Qty 16

0

Cub Cadet 731-06598

Convoluted Conduit

Note: Not Shown

$

$

Not available

Cub Cadet 725-04825

Plow 4-way Harness

Note: Not Shown, Optional parts shown

$305.99

$

Usually ships in 3-6 days

0
