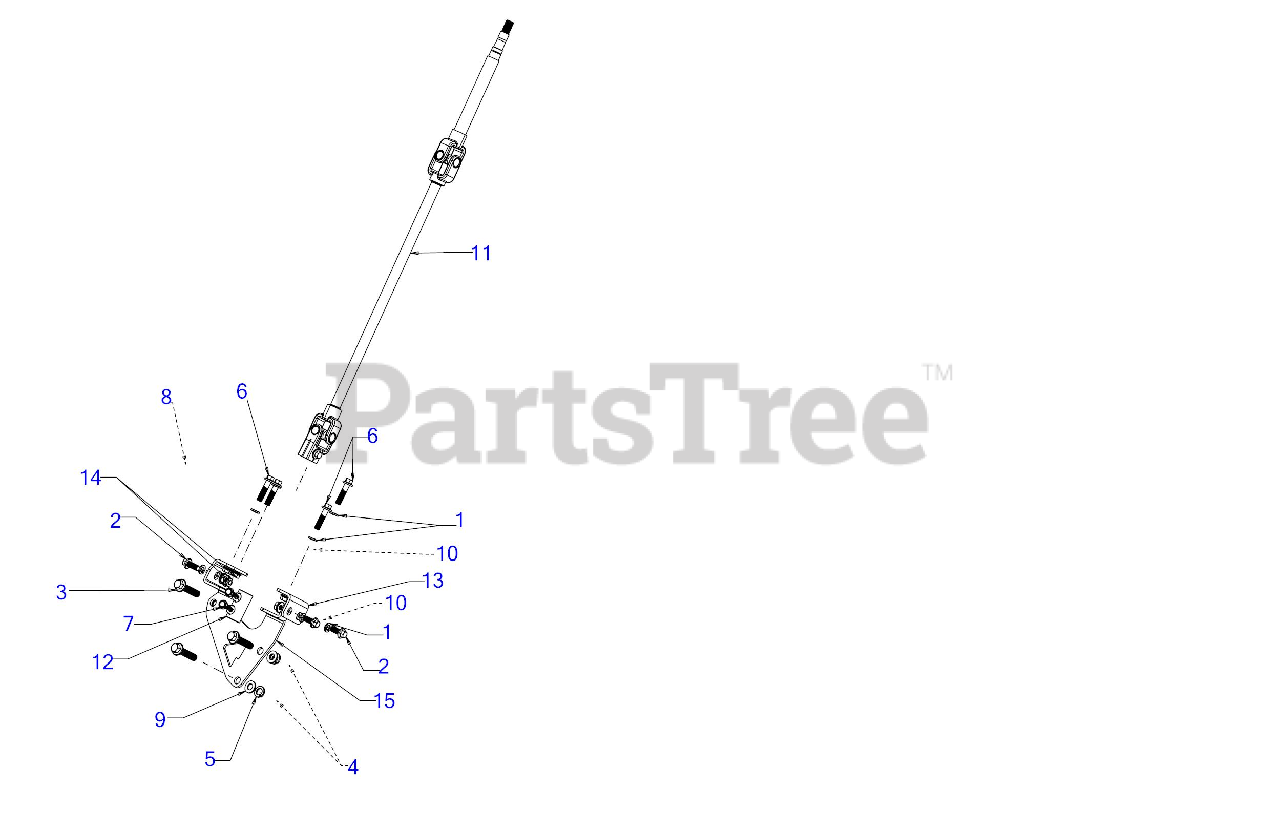

39A70102 (39A70102100) - Cub Cadet Utility Vehicle EPS Kit Replacement Parts Parts Diagram

Utility Vehicle EPS Kit

Replacement Parts Parts Diagram

  • Title

1

Cub Cadet 503-00005

SPRING WASHER-8

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-00042

HEXAGON FLANGE BOLT M8X20

$7.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-00044

HEX FLANGE BOLT M10X1.25X45

$8.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-00045

HEX FLANGE SELF LOCK NUT

$6.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-00064

SPRING WASHER

$6.49

$

In Stock, only 3 left!

0

6

Cub Cadet 503-00166

HEXAGON FLANGE BOLTS M8X35

$5.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-00045

HEXAGON FLANGE BOLT M6X40

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-00902

ELECTRICAL POWER STEERING COMP

$1763.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-01395

WASHER 10

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-01411

WASHER 8

$4.99

$

In Stock, only 4 left!

0

11

n/a

STEERING WHEEL SHAFT

$

$

Not available

12

n/a

SHAFT COUPLING

$

$

Not available

13

n/a

EPS BRACKET

$

$

Not available

14

n/a

NUT M8-1.25

$

$

Not available

15

n/a

EPS MOUNT BRACKET

$

$

Not available

Cub Cadet 936-0208

WASHER .51 x 1.5 x .07
(Superseded to 736-0208)

$

$

Not available

Cub Cadet 750-06152

SPACER .792 x 1.060 x 1.782

$6.99

$

In Stock, only 2 left!

0

Cub Cadet 503-01919

EPS CABLE

$294.99

$

Usually ships in 3-6 days

0

Cub Cadet 503-01862

ECU EPS

$946.99

$

Usually ships in 3-6 days

0
