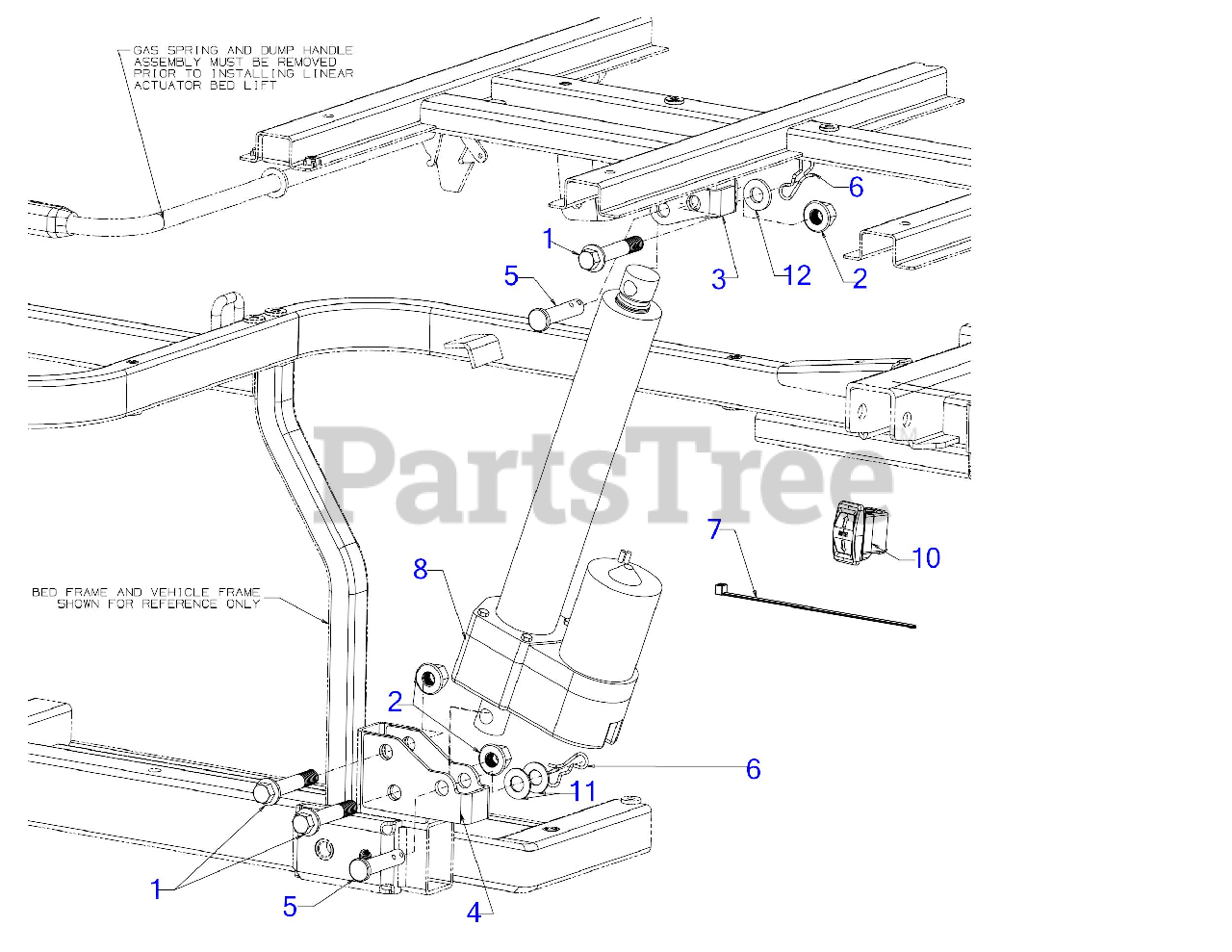

39A70107 (39A70107100) - Cub Cadet Utility Vehicle Electric Bed Lift General Assembly Parts Diagram

Utility Vehicle Electric Bed Lift

General Assembly Parts Diagram

  • Title

1

Cub Cadet 503-01571

HEX HEAD BOLT M12X1.25-65

$3.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-01572

LOCK NUT M12-1.25

$5.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 707-06787

UPPER ACTUATOR BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

707-06787-0637

Cub Cadet 707-06787-0637

BLACK UPPER ACTUATOR - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 707-06789

LOWER ACTUATOR BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

707-06789-0637

Cub Cadet 707-06789-0637

BLACK LOWER ACTUATOR - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 711-0510A

CLEVIS PIN .50 x 2.0

$11.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 714-05005

BOW TIE COTTER PIN

$5.49

$

In Stock, Qty 20+

0

7

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 925-07159

ELECTRIC ACTUATOR

$885.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 725-07248

ROCKER SWITCH

$39.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 936-0272

FLAT WASHER .510 x 1.00 x .060
(Superseded to 736-0272)

$5.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 936-0326

FLAT WASHER .510 x 1.000 x .125
(Superseded to 736-0326)

$4.99

$

In Stock, Qty 8

0

Cub Cadet 925-07232

WIRING HARNESS
(Superseded to 925-07232A)

Note: (Not Shown)

$116.99

$

Usually ships in 3-6 days

0

Cub Cadet 925-1381

FUSE-20A

Note: (Not Shown)

$6.99

$

In Stock, Qty 10

0
