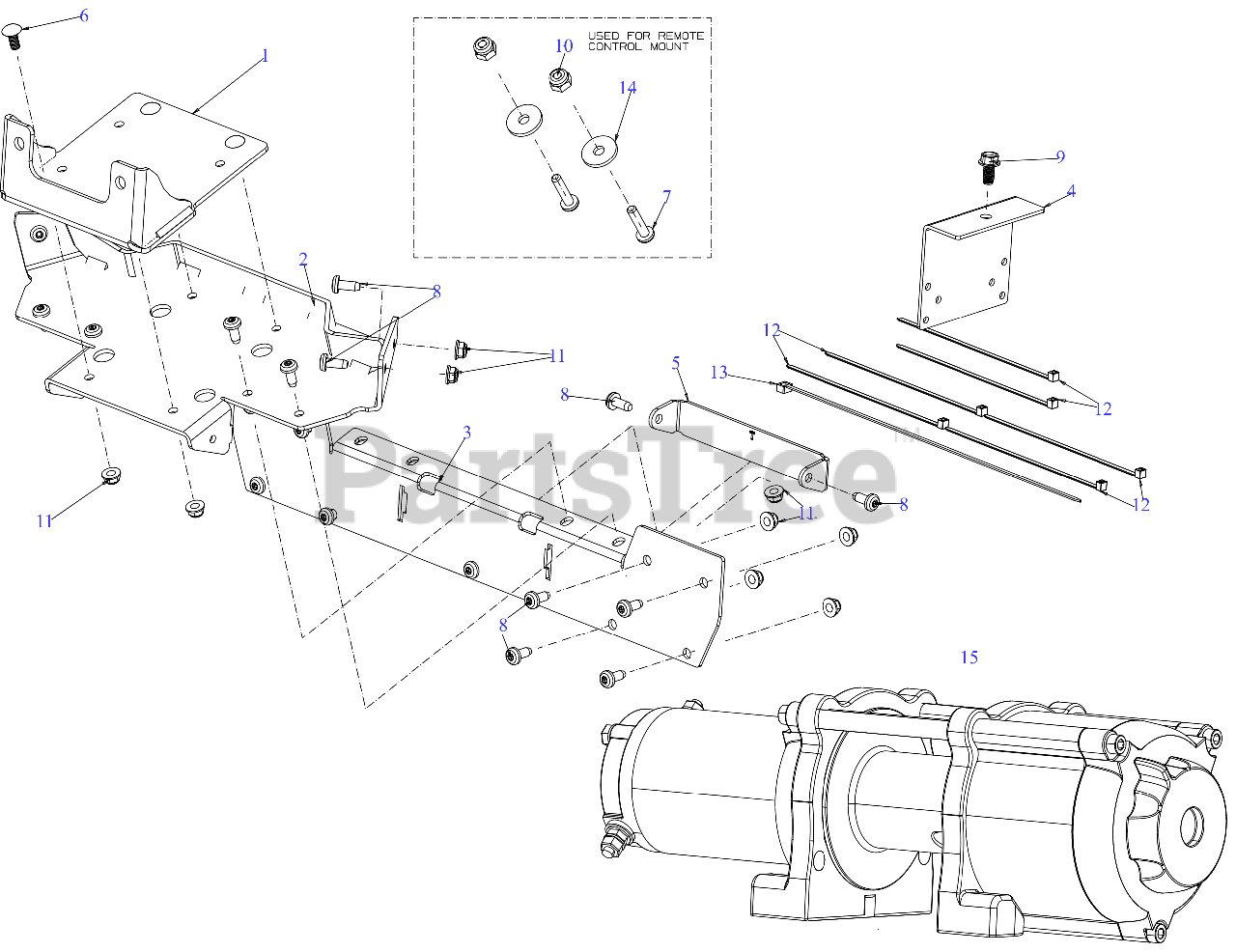

39A70120 (39A70120100) - Cub Cadet Utility Vehicle 3500LB Winch Kit General Assembly Parts Diagram

Utility Vehicle 3500LB Winch Kit

General Assembly Parts Diagram

  • Title

1

FAIRLEAD MOUNT

Note: (Order Complete Winch Kit)

$

$

Not available

2

WINCH MOUNT

Note: (Order Complete Winch Kit)

$

$

Not available

3

FRONT MOUNT BRACKET

Note: (Order Complete Winch Kit)

$

$

Not available

4

RELAY MOUNT BRACKET

Note: (Order Complete Winch Kit)

$

$

Not available

5

SUPPORT BRACKET

Note: (Order Complete Winch Kit)

$

$

Not available

6

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-04879

SCREW #8-32 x .750

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-06096

SCREW 5/16-18 X.75

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0623

SCREW 3/8-16 x 3/4

$3.99

$

In Stock, Qty 10

0

10

Cub Cadet 712-04035

NUT

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 725-0157

7" CABLE TIE

$3.49

$

In Stock, only 4 left!

0

13

TIE:CBL:14.5" LONG

$

$

Not available

14

Cub Cadet 736-0400

FLAT WASHER .194x.620x.063

Note: 936-0400

$4.99

$

In Stock, Qty 16

0

15

WINCH

Note: (Order Complete Winch Kit)

$

$

Not available

Cub Cadet 39A70120100

WINCH KIT 3500 #

$206.99

$

Usually ships in 3-6 days

0
