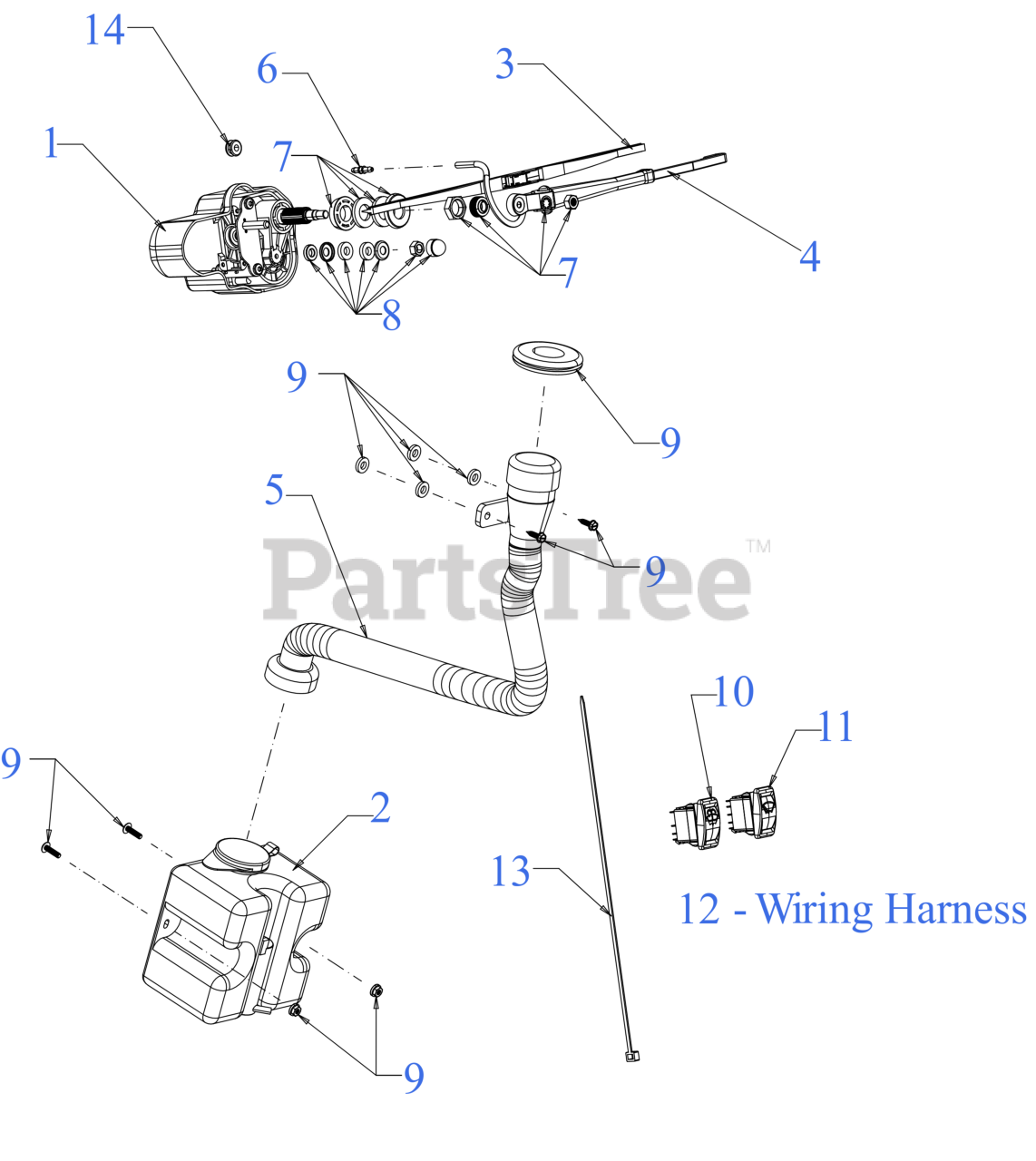

39A70128 (39A70128100) - Cub Cadet Utility Vehicle MXC Windshield Wiper Kit General Assembly Parts Diagram

Utility Vehicle MXC Windshield Wiper Kit

General Assembly Parts Diagram

  • Title

1

Cub Cadet 689-01339

WINDSHIELD WIPER MOTOR

$320.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 689-01379

WIPER FLUID TANK (1.2L)

$119.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 689-01620

WIPER BLADE (400MM)

$72.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 689-01639

WIPER ARM (290MM)

$73.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 689-01679

WIPER FLUID REMOTE FILLER

$152.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 689-01939

WIPER FLUID CHECK VALVE

$10.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 689-01959

WIPER SPINDLE HARDWARE KIT

$22.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 689-01960

WIPER STUD HARDWARE KIT

$20.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 689-02179

TANK HARDWARE KIT

$

$

Currently unavailable

10

Cub Cadet 725-08865

FLUID PUMP DASH SWITCH

$

$

Currently unavailable

11

Cub Cadet 725-08965

WIPER MOTOR DASH SWITCH

$

$

Currently unavailable

12

Cub Cadet 725-08985

WIPER WIRE HARNESS

$327.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 726-0145

TIE:CBL:14.5" LONG

$5.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 735-05758

RUBBER GROMMET (.25 ID x .436 OD)

$5.49

$

Usually ships in 3-6 days

0

Cub Cadet 39A70128100

MXC WINDSHIELD WIPER KIT

$759.99

$

Usually ships in 3-6 days

0
