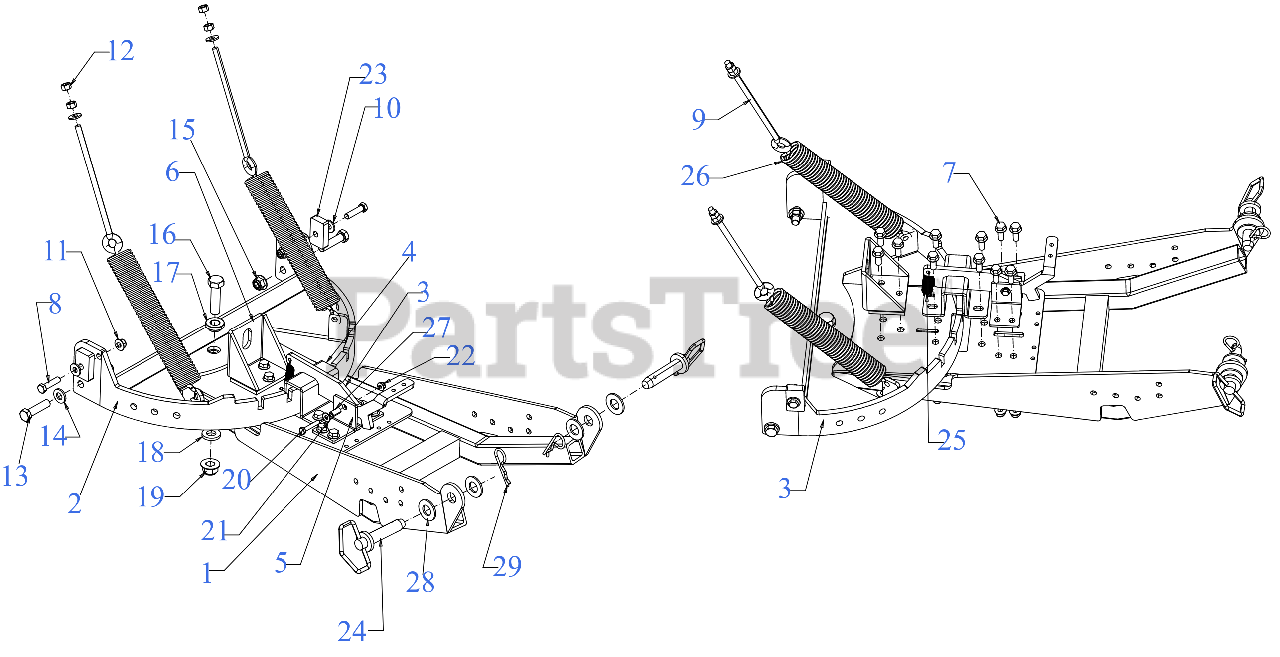

39B70084 (39B70084100) - Cub Cadet Utility Vehicle 72" Snow Blade Blade Mount Parts Diagram

Utility Vehicle 72" Snow Blade

Blade Mount Parts Diagram

  • Title

1

LIFT ARM

$

$

Not available

2

SWIVEL PLATE

$

$

Not available

3

PIVOT LOCK LEVER

$

$

Not available

4

PIVOT LEVER SUPPORT BRACKET

$

$

Not available

5

PIVOT LEVER RISER

$

$

Not available

6

WINCH ATTACHMENT BRACKET

$

$

Not available

7

Cub Cadet 710-04042

HEX SCREW 3/8-16

$4.99

$

In Stock, only 4 left!

0

8

Cub Cadet 710-0520

SCREW 3/8-16 x 1.50

$4.49

$

In Stock, Qty 20+

0

9

3/8"-16 X 8" EYE BOLT

$

$

Not available

10

Cub Cadet 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 912-3017

HEX NUT
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0489

SCREW 1/2-13 x 2 GR5

$7.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 936-0326

FLAT WASHER
(Superseded to 736-0326)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-05000

SCREW 5/8-11 x 2.25 GR5

$3.49

$

In Stock, only 2 left!

0

17

5/8" PIVOT RING

$

$

Not available

18

Cub Cadet 936-04088

FLAT WASHER .635X1.24X.181
(Superseded to 736-04088)

$4.49

$

In Stock, Qty 11

0

19

Cub Cadet 712-04151

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 9

0

20

Cub Cadet 710-0606

SCREW 1/4-20 x 1.50 GR.5

$5.49

$

In Stock, Qty 13

0

21

Cub Cadet 936-0463

FLAT WASHER
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

22

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

23

STOP BLOCK

$

$

Not available

24

QUICK RELEASE PIN

$

$

Not available

25

LOCK LEVER SPRING

$

$

Not available

26

10" EXTENSION SPRING

$

$

Not available

27

1/4" ALUMINUM SPACER

$

$

Not available

28

Cub Cadet 736-0315

FLAT WASHER

$6.99

$

In Stock, Qty 6

0

29

Cub Cadet 714-04101

5/8" COTTER PIN

$

$

Currently unavailable
