3H302 B - Electrolux/AYP Walk-Behind Mower

Walk-Behind Mower

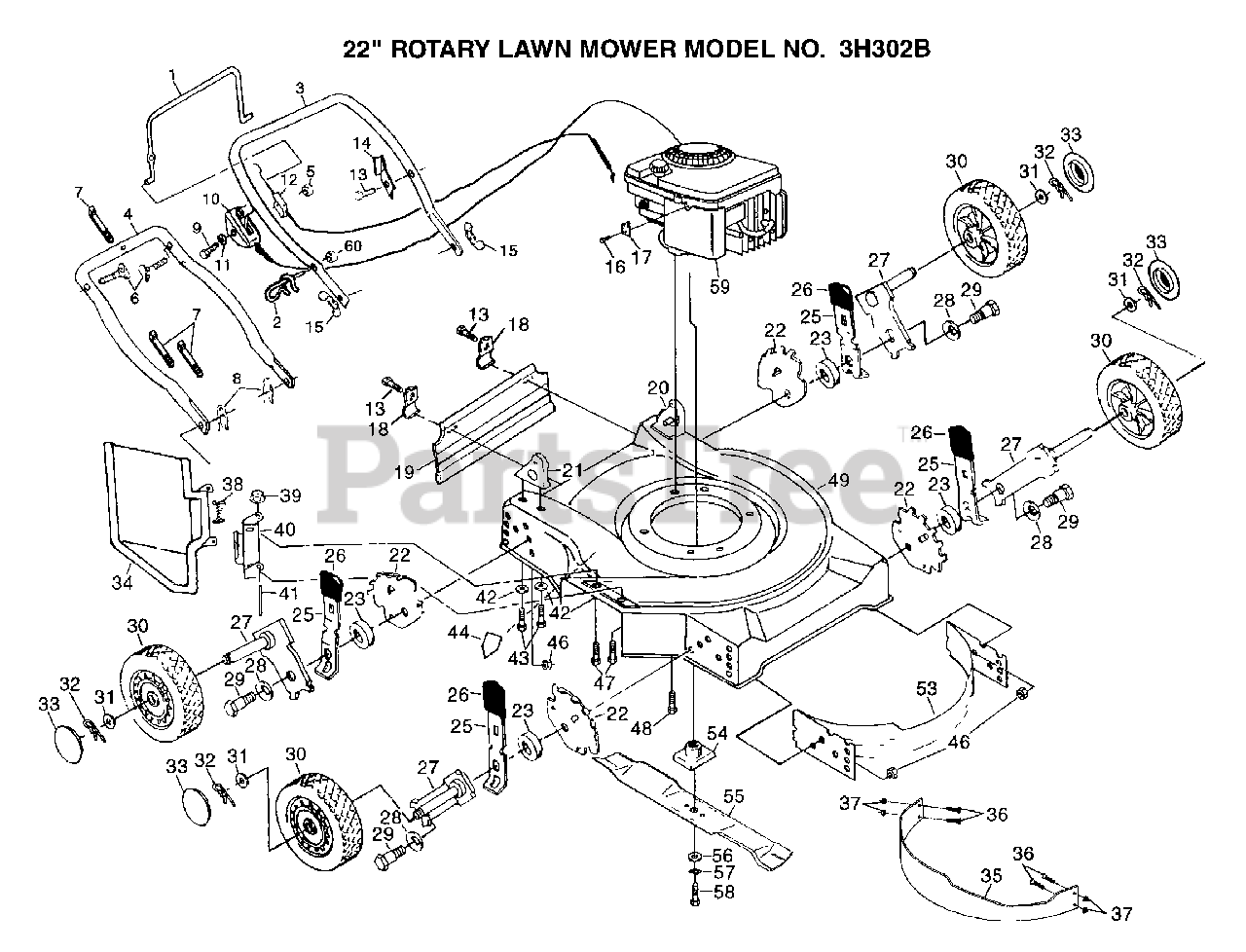

3H302 B - Electrolux/AYP Walk-Behind Mower > Parts Diagrams (1) > 22" ROTARY MOWER

  • Title
131696

1

CONTROL BAR

Part# 131696

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $22.35

132001

2

ROPE GUIDE

Part# 132001

OEM Warranty Repair Part for Electrolux/AYP

Not available

131697X479

3

SUB= 154480X479

Part# 131697X479

OEM Warranty Repair Part for Electrolux/AYP

Not available

132813X479

4

SUB= 151721X479

Part# 132813X479

OEM Warranty Repair Part for Electrolux/AYP

Not available

63601

5

SUB= 73800400

Part# 63601

OEM Warranty Repair Part for Electrolux/AYP

Not available

131959

6

BOLT.HANDLE.LM

Part# 131959

OEM Warranty Repair Part for Electrolux/AYP

Not available

66426

7

SUB= 7192J

Part# 66426 (Superseded to 532007192)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

51793

8

HAIRPIN COTTER

Part# 51793 (Superseded to 532051793)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

86055

9

SUB= 144929

Part# 86055

OEM Warranty Repair Part for Electrolux/AYP

Not available

700417

10

"CONTROL, THROTTLE"

Part# 700417

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $14.52

85723

11

WASHER PM

Part# 85723

OEM Warranty Repair Part for Electrolux/AYP

Not available

130861

12

"CABLE,ENG ZONE CO"

Part# 130861

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $13.22

750097

13

TAPPING SCREW

Part# 750097 (Superseded to 532750097)

OEM Warranty Repair Part for Electrolux/AYP

Not available

850733X004

14

"BRKT,UPSTOP"

Part# 850733X004

OEM Warranty Repair Part for Electrolux/AYP

Not available

128638

15

"NUT,WING PM"

Part# 128638 (Superseded to 532128638)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

83816

16

SCREW PM

Part# 83816

OEM Warranty Repair Part for Electrolux/AYP

Not available

213146

17

CABLE CLAMP

Part# 213146

OEM Warranty Repair Part for Electrolux/AYP

Not available

87584X004

18

"BRKT,DEFL PM"

Part# 87584X004

OEM Warranty Repair Part for Electrolux/AYP

Not available

128797

19

SUB= 140540

Part# 128797

OEM Warranty Repair Part for Electrolux/AYP

Not available

701971X479

20

SUB= 150959

Part# 701971X479

OEM Warranty Repair Part for Electrolux/AYP

Not available

701969X479

21

SUB= 150959

Part# 701969X479

OEM Warranty Repair Part for Electrolux/AYP

Not available

700325X007

22

BRACKET.ADJ.9POS.

Part# 700325X007

OEM Warranty Repair Part for Electrolux/AYP

Not available

84920

23

SUB= 146630

Part# 84920

OEM Warranty Repair Part for Electrolux/AYP

Not available

700331X004

25

SPRING SELECTOR

Part# 700331X004

OEM Warranty Repair Part for Electrolux/AYP

Not available

87877

26

KNOB PM

Part# 87877 (Superseded to 532087877)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

85021X004

27

AXLE ARM

Part# 85021X004

OEM Warranty Repair Part for Electrolux/AYP

Not available

62335

28

"WASHER, BELLEVIL."

Part# 62335

OEM Warranty Repair Part for Electrolux/AYP

Not available

84921

29

SUB= 142748

Part# 84921

OEM Warranty Repair Part for Electrolux/AYP

Not available

800390

30

SUB= 146247

Part# 800390

OEM Warranty Repair Part for Electrolux/AYP

Not available

52160

31

WASHER

Part# 52160 (Superseded to 532052160)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

85179

32

RETAINER CLIP PM

Part# 85179 (Superseded to 532085179)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

77400

33

HUB CAP

Part# 77400

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

851750

34

SUB= 532851750

Part# 851750

OEM Warranty Repair Part for Electrolux/AYP

Not available

700930X479

35

BAFFLE.MULCH.22SD

Part# 700930X479

OEM Warranty Repair Part for Electrolux/AYP

Not available

74961008

36

SCREW WS

Part# 74961008

OEM Warranty Repair Part for Electrolux/AYP

Not available

69180

37

LOCKNUT

Part# 69180 (Superseded to 532069180)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.01

851855

38

"SPRING,TORSION"

Part# 851855

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $3.02

83731

39

PUSH ON SPEED NUT

Part# 83731

OEM Warranty Repair Part for Electrolux/AYP

Not available

851852X004

40

"BRKT,HSG"

Part# 851852X004

OEM Warranty Repair Part for Electrolux/AYP

Not available

851854

41

"ROD,HINGE "

Part# 851854

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $2.17

59289

42

STEEL WASHER

Part# 59289 (Superseded to 532059289)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

55187

43

SCREW

Part# 55187

OEM Warranty Repair Part for Electrolux/AYP

Not available

107339X

44

DECAL HYT

Part# 107339X (Superseded to 532107339)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $20.11

751592

46

LOCKNUT PM

Part# 751592

OEM Warranty Repair Part for Electrolux/AYP

Not available

851856

47

SCREW

Part# 851856

OEM Warranty Repair Part for Electrolux/AYP

Not available

850998

48

SCREW

Part# 850998

OEM Warranty Repair Part for Electrolux/AYP

Not available

702208

49

KIT.HSG.22SD.PUSH

Part# 702208

OEM Warranty Repair Part for Electrolux/AYP

Not available

700929X479

53

BAFFLE.FRT/REAR

Part# 700929X479

OEM Warranty Repair Part for Electrolux/AYP

Not available

850977

54

BLADE ADAPTOR

Part# 850977 (Superseded to 532850977)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $13.41

134768

55

SUB= 141114

Part# 134768

OEM Warranty Repair Part for Electrolux/AYP

Not available

851074

56

"WASHER,HARDEN"

Part# 851074 (Superseded to 532851074)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.78

850263

57

LOCKWASHER

Part# 850263 (Superseded to 532850263)

OEM Warranty Repair Part for Electrolux/AYP

Not available

851084

58

SCREW

Part# 851084 (Superseded to 532851084)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.01

59

REFER TO IMAGE

Part#

Not available

73510400

60

NUT

Part# 73510400

OEM Warranty Repair Part for Murray

Not available

140753

MANUAL OP GEN PUS

Part# 140753

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $2.56

140888

MANUAL PARTS ENG

Part# 140888

OEM Warranty Repair Part for Electrolux/AYP

Not available
