3TNV82A-BDCB - Cub Cadet Yanmar Engine Camshaft & Driving Gear Parts Diagram

Engine

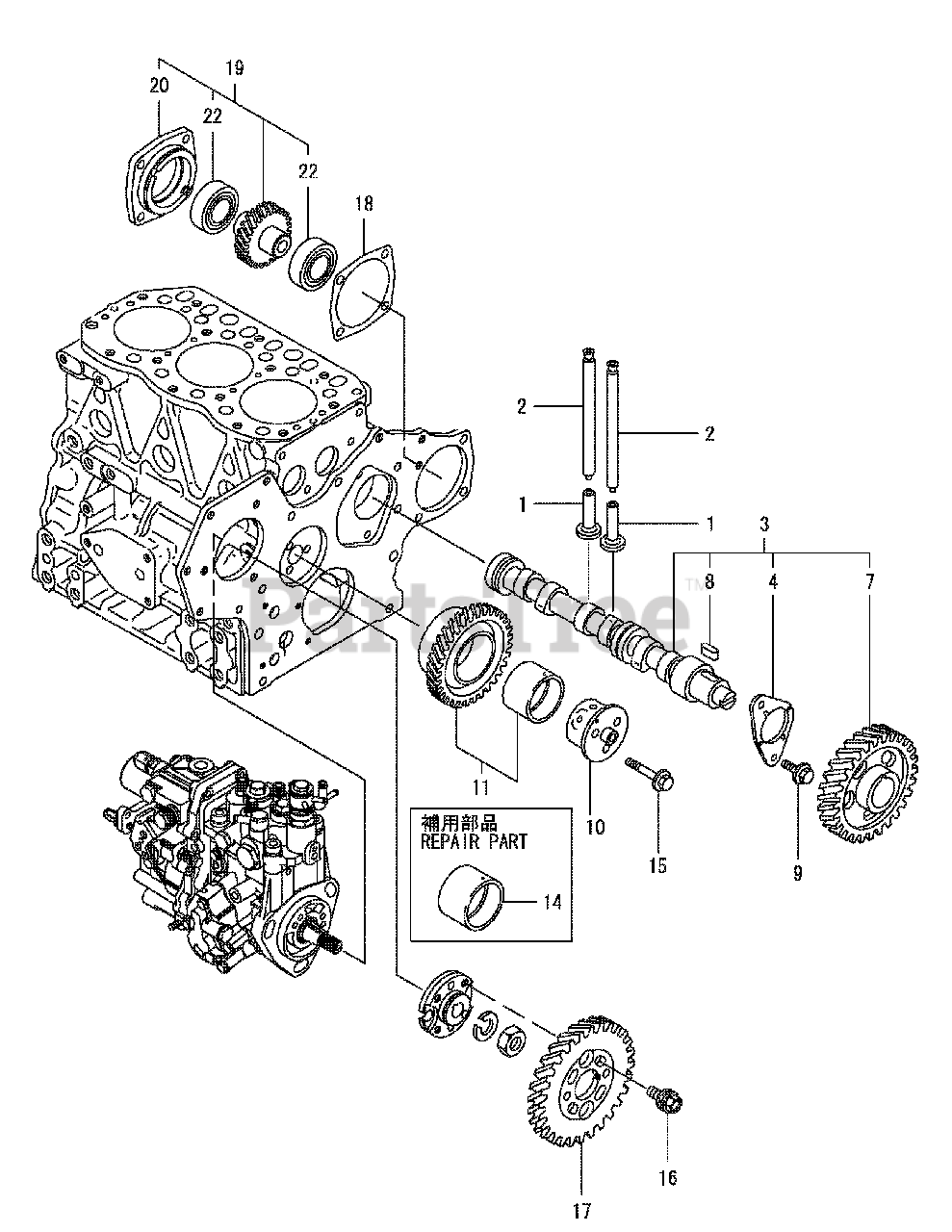

Camshaft & Driving Gear Parts Diagram

  • Title

1

Cub Cadet YA-129150-14200

Tappet

$

$

Not available

2

Cub Cadet YA-119810-14400

Push Rod

$6.99

$

In Stock, only 2 left!

0

3

Cub Cadet YA-119802-14580

Camshaft Assembly

$

$

Not available

4

Cub Cadet YA-129150-02450

Thrust Metal

$29.99

$

Usually ships in 3-6 days

0

7

Cub Cadet YA-129150-14101

Camshaft Gear

$

$

Not available

8

Cub Cadet YA-22512-070140

Key, 7 x 14

$2.99

$

Usually ships in 3-6 days

0

9

Cub Cadet YA-26106-080142

Bolt, 8 x 14

$

$

Not available

10

Cub Cadet YA-119803-25050

Idler Shaft

$

$

Not available

11

Cub Cadet YA-119802-25101

Idle Gear Assembly

$

$

Not available

14

Cub Cadet YA-119802-25071

Idle Gear Bushing

$

$

Not available

15

Cub Cadet YA-26106-080402

Bolt, M8 x 40

$1.49

$

Usually ships in 3-6 days

0

16

Cub Cadet YA-129150-25301

Pump Bolt

$7.99

$

Usually ships in 3-6 days

0

17

Cub Cadet YA-119802-25901

Pump gear

$

$

Not available

18

Cub Cadet YA-129150-01881

Gasket

$

$

Not available

19

Cub Cadet YA-129150-26000

Pump Drive Assembly

$

$

Not available

20

Cub Cadet YA-129150-26050

Pump Bracket

$

$

Not available

22

Cub Cadet YA-24105-060064

Ball Bearing

$

$

Not available
