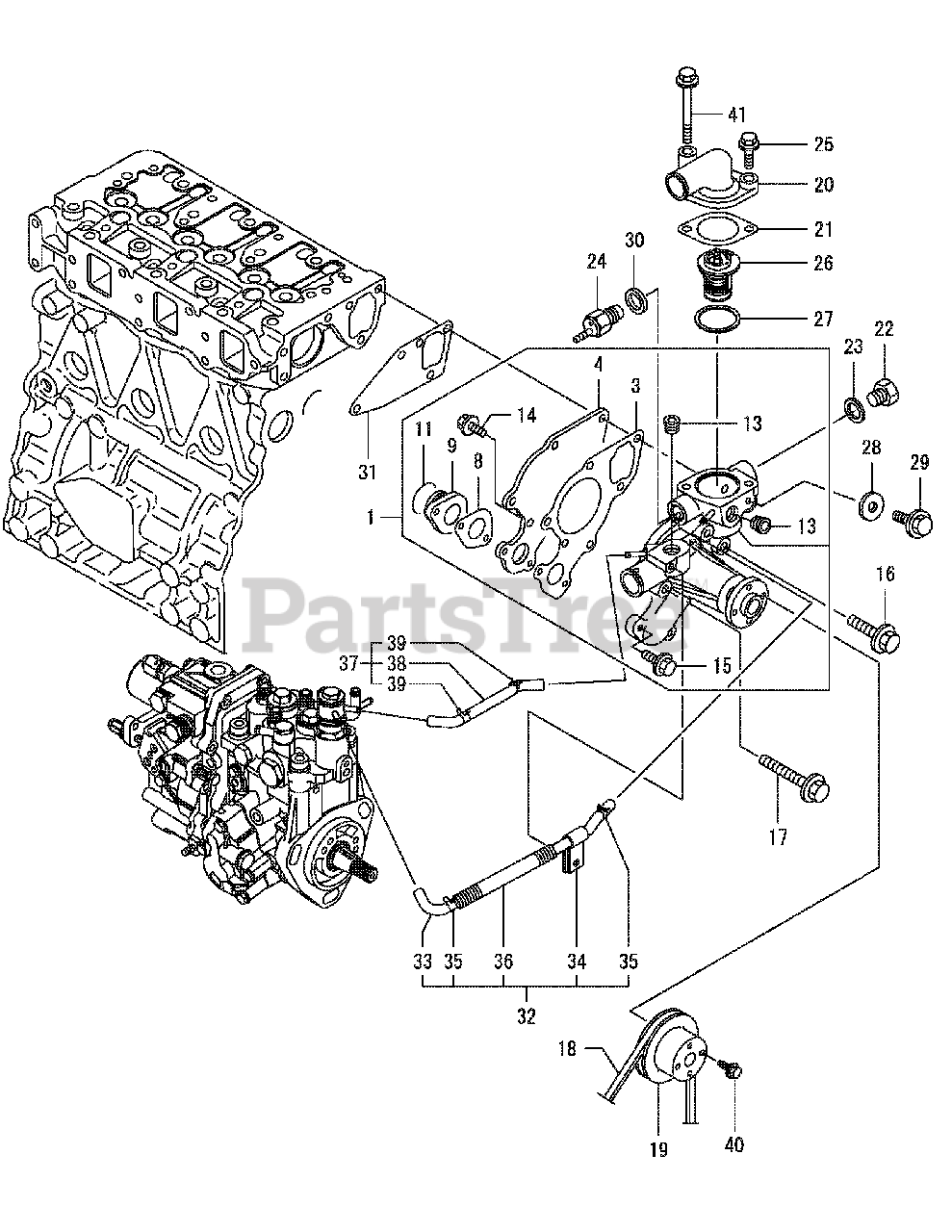

3TNV82A-BDCB - Cub Cadet Yanmar Engine Cooling Water System Parts Diagram

Engine

Cooling Water System Parts Diagram

  • Title

1

Cub Cadet YA-119802-42001

Water Pump Assembly

$

$

Not available

3

Cub Cadet YA-119810-42051

Water Pump Gasket

$

$

Not available

4

Cub Cadet YA-119810-42120

Plate

$

$

Not available

8

Cub Cadet YA-119810-42281

Water Pump Gasket

$

$

Not available

9

Cub Cadet YA-119810-42290

Pump Pipe

$

$

Not available

11

Cub Cadet YA-129054-42320

O-Ring

$

$

Not available

13

Cub Cadet YA-23876-030000

Screw Plug, PT 3.8

$5.49

$

Usually ships in 3-6 days

0

14

Cub Cadet YA-26106-060142

Bolt, M6 x 14

$0.99

$

Usually ships in 3-6 days

0

15

Cub Cadet YA-26106-060202

Bolt, M6 x 20

$

$

Not available

16

Cub Cadet YA-26106-080352

Bolt, M8 x 35

$

$

Not available

17

Cub Cadet YA-26106-080552

Bolt, M8 x 55

$

$

Not available

18

Cub Cadet YA-119865-42290

V-Belt, A36.5

$23.99

$

Usually ships in 3-6 days

0

19

Cub Cadet YA-129155-42350

Pump V-Pulley

$

$

Not available

20

Cub Cadet YA-124101-49531

Thermostat Cover

$83.99

$

Usually ships in 3-6 days

0

21

Cub Cadet YA-129795-49551

Cover Gasket

$

$

Not available

22

Cub Cadet YA-121450-42450

Plug, M16

$6.99

$

Usually ships in 3-6 days

0

23

Cub Cadet YA-124465-44950

Gasket, 16

$2.49

$

In Stock, only 1 left!

0

24

Cub Cadet YA-121250-44901

Thermostat Switch

$29.99

$

In Stock, only 2 left!

0

25

Cub Cadet YA-26106-080252

Bolt, M8 x 25

$1.49

$

Usually ships in 3-6 days

0

26

Cub Cadet YA-129155-49801

Thermostat

$42.99

$

Usually ships in 3-6 days

0

27

Cub Cadet YA-129150-49811

Thermostat Gasket

$

$

Not available

28

Cub Cadet YA-23414-080000

Round Gasket, 8

$0.99

$

Usually ships in 3-6 days

0

29

Cub Cadet YA-26106-080122

Bolt, M8 x 12

$0.99

$

Usually ships in 3-6 days

0

30

Cub Cadet YA-124465-44950

Gasket, 16

$2.49

$

In Stock, only 1 left!

0

31

Cub Cadet YA-129486-42050

Water Pump Gasket

$

$

Not available

32

Cub Cadet YA-119802-49610

Water Pipe, MP2 A

$

$

Not available

33

Cub Cadet YA-119802-49711

Water Pipe, MP2 A

$

$

Not available

34

Cub Cadet YA-119802-49730

Pipe Clamp

$

$

Not available

35

Cub Cadet YA-124722-59050

Hose Clip

$

$

Not available

36

Cub Cadet YA-119802-59320

Corrugated Tube

$

$

Not available

37

Cub Cadet YA-119802-49620

Water Pipe, MP2 B

$

$

Not available

38

Cub Cadet YA-119802-49721

Water Pipe, MP2 B

$

$

Not available

39

Cub Cadet YA-124722-59050

Hose Clip

$

$

Not available

40

Cub Cadet YA-26106-060122

Bolt, M6 x 12

$0.99

$

Usually ships in 3-6 days

0

41

Cub Cadet YA-26106-080652

Bolt, M8 x 65

$1.49

$

Usually ships in 3-6 days

0
