3TNV82A-BDCB - Cub Cadet Yanmar Engine Cylinder Head & Bonnet Parts Diagram

Engine

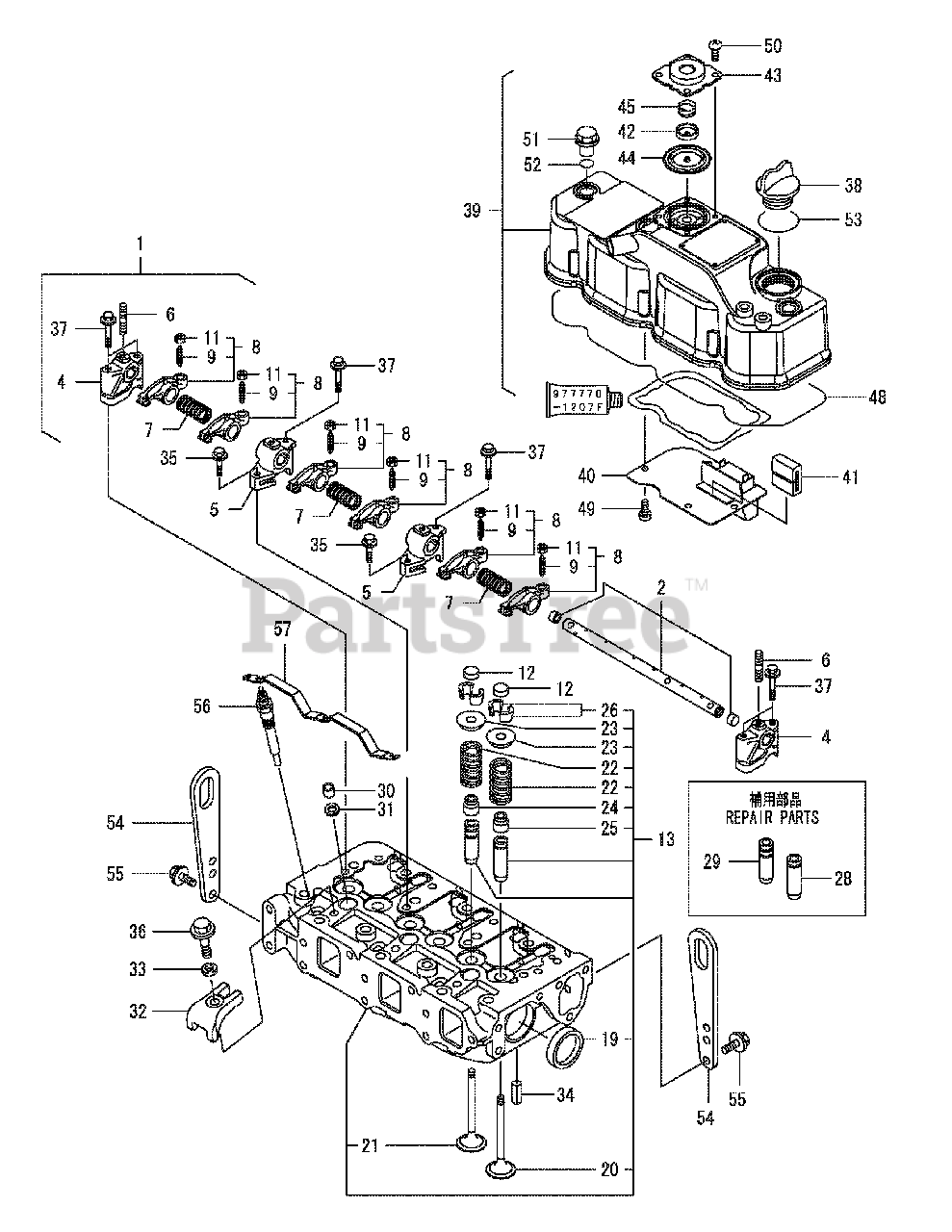

Cylinder Head & Bonnet Parts Diagram

  • Title

1

Cub Cadet YA-119802-11241

Rocker Shaft Assembly

$

$

Not available

2

Cub Cadet YA-119802-11251

Rocker Arm Shaft

$

$

Not available

4

Cub Cadet YA-119802-11260

Arm Support A

$

$

Not available

5

Cub Cadet YA-119802-11270

Arm Support B

$

$

Not available

6

Cub Cadet YA-26226-080182

Stud

$

$

Not available

7

Cub Cadet YA-129150-11280

Shaft Spring

$

$

Not available

8

Cub Cadet YA-119802-11650

Rocker Arm Assembly

$

$

Not available

9

Cub Cadet YA-129150-11230

Valve Adjust Screw

$8.99

$

Usually ships in 3-6 days

0

11

Cub Cadet YA-129150-11750

Nut, M8

$1.99

$

Usually ships in 3-6 days

0

12

Cub Cadet YA-104211-11370

Valve Cap

$

$

Not available

13

Cub Cadet YA-119803-11700

Cylinder Head Assembly

$

$

Not available

19

Cub Cadet YA-27241-400000

Plug, 40

$

$

Not available

20

Cub Cadet YA-119802-11100

Intake Valve

$

$

Not available

21

Cub Cadet YA-119802-11110

Exhaust Valve

$

$

Not available

22

Cub Cadet YA-119810-11120

Valve Spring

$

$

Not available

23

Cub Cadet YA-104211-11180

Spring Retainer

$

$

Not available

24

Cub Cadet YA-119803-11340

Valve Stem Seal

$

$

Not available

25

Cub Cadet YA-124160-11340

Valve Stem Seal

$

$

Not available

26

Cub Cadet YA-27310-070001

Cotter, 7

$

$

Not available

28

Cub Cadet YA-124060-11800

Intake Valve Guide

$

$

Not available

29

Cub Cadet YA-119802-11810

Exhaust Valve Guide

$

$

Not available

30

Cub Cadet YA-119802-11870

Nozzle Protector

$

$

Not available

31

Cub Cadet YA-119625-11880

Nozzle Seat

$

$

Not available

32

Cub Cadet YA-119802-11900

Nozzle Retainer

$

$

Not available

33

Cub Cadet YA-120270-54410

Injector Washer

$

$

Not available

34

Cub Cadet YA-22351-060012

Spring Pin, 6 x 12

$0.99

$

Usually ships in 3-6 days

0

35

Cub Cadet YA-26106-080252

Bolt, M8 x 25

$1.49

$

Usually ships in 3-6 days

0

36

Cub Cadet YA-26106-080452

Bolt, M8 x 45

$

$

Not available

37

Cub Cadet YA-26106-080502

Bolt, M8 x 50

$1.49

$

Usually ships in 3-6 days

0

38

Cub Cadet YA-124160-01751

Filler Cover

$10.99

$

Usually ships in 3-6 days

0

39

Cub Cadet YA-119802-11350

Head Bonnet Assembly

$

$

Not available

40

Cub Cadet YA-119802-03010

Baffle Plate

$

$

Not available

41

Cub Cadet YA-129150-03070

Breather Baffle

$

$

Not available

42

Cub Cadet YA-119802-03110

Center Plate

$5.99

$

Usually ships in 3-6 days

0

43

Cub Cadet YA-119802-03121

Diaphragm Cover

$

$

Not available

44

Cub Cadet YA-119802-03130

Diaphragm

$

$

Not available

45

Cub Cadet YA-119802-03141

Diaphragm Spring

$1.99

$

Usually ships in 3-6 days

0

48

Cub Cadet YA-119802-11310

Bonnet Gasket

$45.99

$

Usually ships in 3-6 days

0

49

Cub Cadet YA-22857-500100

Screw, M5 x 10

$0.99

$

Usually ships in 3-6 days

0

50

Cub Cadet YA-22857-500100

Screw, M5 x 10

$0.99

$

Usually ships in 3-6 days

0

51

Cub Cadet YA-124160-11360

Knob

$

$

Not available

52

Cub Cadet YA-24311-000120

O-Ring, 1A P-12.0

$2.99

$

Usually ships in 3-6 days

0

53

Cub Cadet YA-24311-000320

O-Ring, 1A P-32.0

$2.49

$

Usually ships in 3-6 days

0

54

Cub Cadet YA-129900-07900

Engine Lifter

$

$

Not available

55

Cub Cadet YA-26106-080162

Bolt, M8 x 16

$

$

Not available

56

Cub Cadet YA-129008-77800

Glow Plug

$

$

Not available

57

Cub Cadet YA-119803-77821

Glow Plug Connector

$

$

Not available

Cub Cadet CY-977770-1207F

SEALANT-GASKET
(Superseded to YA-977770-1207F)

$61.99

$

Usually ships in 3-6 days

0
