3TNV82A-BDCB - Cub Cadet Yanmar Engine Fuel Injection Valve Parts Diagram

Engine

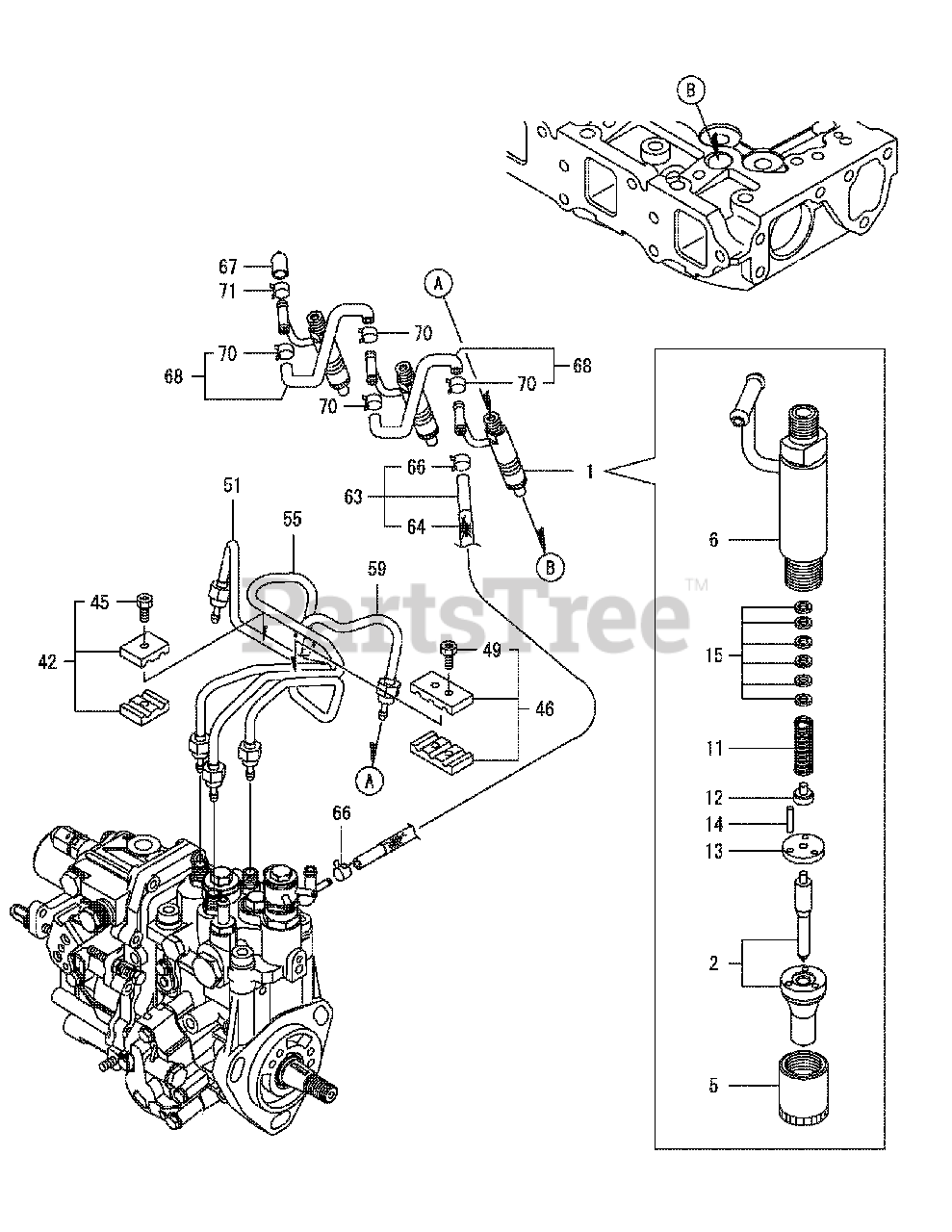

Fuel Injection Valve Parts Diagram

  • Title

1

Cub Cadet YA-729008-53100

Injection Valve Assembly

$

$

Not available

2

Cub Cadet YA-129008-53000

Injection Valve Assembly

$

$

Not available

5

Cub Cadet YA-114250-53080

Case Nut

$

$

Not available

6

Cub Cadet YA-119802-53100

Nozzle Holder Assembly

$

$

Not available

11

Cub Cadet YA-114250-53120

Nozzle Spring

$

$

Not available

12

Cub Cadet YA-114250-53130

Spring Seat

$

$

Not available

13

Cub Cadet YA-114250-53140

Stop Plate

$

$

Not available

14

Cub Cadet YA-114250-53210

Pin

$

$

Not available

15

Cub Cadet YA-119803-53800

Shim Set

$

$

Not available

42

Cub Cadet YA-119305-59120

Retainer

$

$

Not available

45

Cub Cadet YA-129150-59131

Hex Socket Bolt, M4 x 14

$1.49

$

Usually ships in 3-6 days

0

46

Cub Cadet YA-129150-59120

Pipe Retainer

$5.49

$

Usually ships in 3-6 days

0

49

Cub Cadet YA-129150-59131

Hex Socket Bolt, M4 x 14

$1.49

$

Usually ships in 3-6 days

0

51

Cub Cadet YA-119802-59960

Injection Pipe Assembly

$

$

Not available

55

Cub Cadet YA-119802-59970

Injection Pipe Assembly

$

$

Not available

59

Cub Cadet YA-119802-59980

Injection Pipe Assembly

$

$

Not available

63

Cub Cadet YA-129268-59551

Return Pipe Assembly

$

$

Not available

64

Cub Cadet YA-129237-59120

Hose Protector

$

$

Not available

66

Cub Cadet YA-23080-010000

Clamp, 10

$

$

Not available

67

Cub Cadet YA-119593-59581

Cap

$

$

Not available

68

Cub Cadet YA-129486-59581

Fuel Return Hose

$

$

Not available

70

Cub Cadet YA-23080-010000

Clamp, 10

$

$

Not available

71

Cub Cadet YA-23080-010000

Clamp, 10

$

$

Not available
