3W953 (9540-0) - Generac 3,500 Watt Portable Generator GN-190 Engine Long Block (10/95) Parts Diagram

3,500 Watt Portable Generator

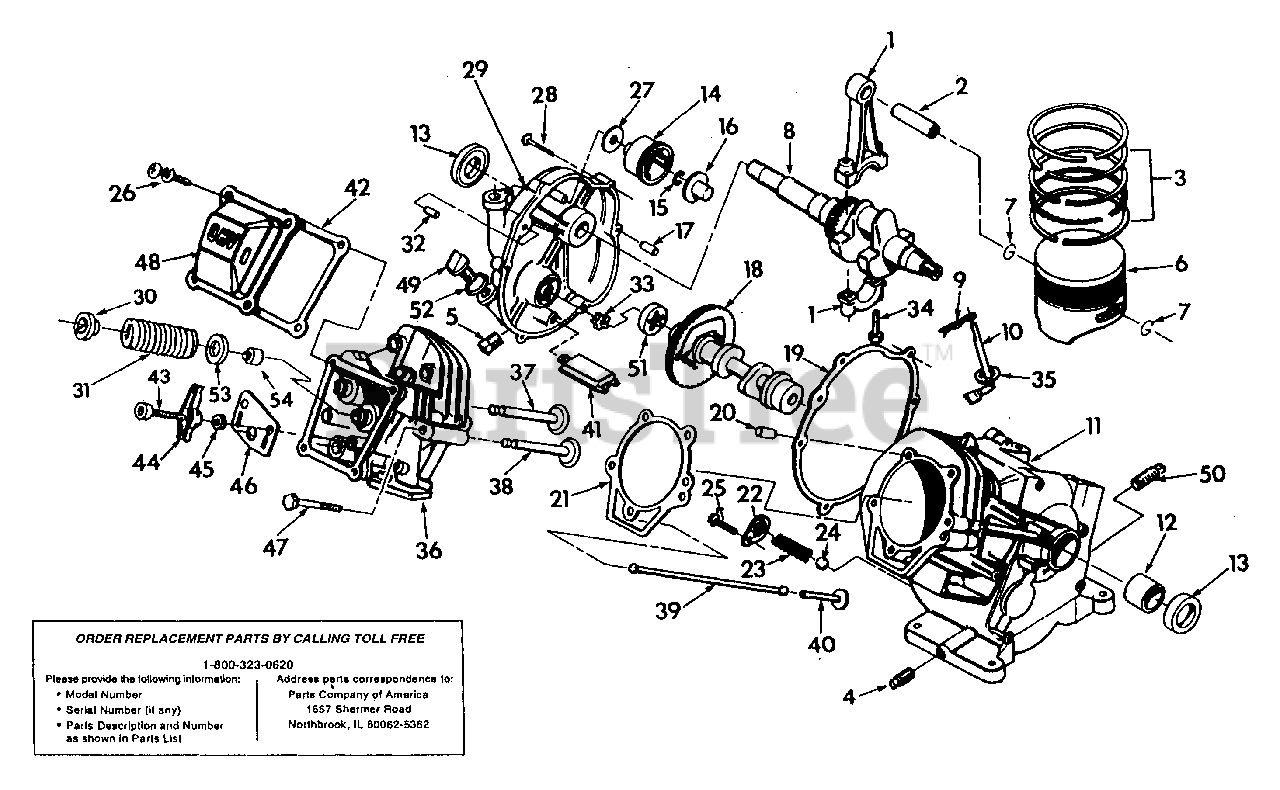

GN-190 Engine Long Block (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 78621

Connecting rod with cap and bolt

$

$

Currently unavailable

2

Briggs & Stratton 76389

Piston pin

$

$

Currently unavailable

3

Briggs & Stratton 78660

Piston ring set

$

$

Currently unavailable

4

Briggs & Stratton 81694

1/4" Magnetic pipe plug

$

$

Currently unavailable

5

Briggs & Stratton 72683

1/8" NPTF pipe plug

$

$

Currently unavailable

6

Briggs & Stratton 76386

Piston

$

$

Not available

7

Briggs & Stratton 76390

Piston pin retainer
(Superseded to 7047947YP)

$27.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 83337

Crankshaft assm. w/gear

$

$

Not available

9

Briggs & Stratton 78658

Governor arm "R" pin

$

$

Not available

10

Briggs & Stratton 76354

Governor arm

$

$

Currently unavailable

11

Briggs & Stratton 83136

Crankcase

$

$

Currently unavailable

12

Briggs & Stratton 76349

Sleeve bearing

$

$

Currently unavailable

13

Briggs & Stratton 81695

Crankshaft seal

$

$

Currently unavailable

14

Briggs & Stratton 76359

Governor gear assembly

$

$

Currently unavailable

15

Briggs & Stratton 78645

Governor retainer ("C" ring)

$

$

Not available

16

Briggs & Stratton 76365

Governor spool

$

$

Currently unavailable

17

Briggs & Stratton 78699A

Sleeve dowel (10" dia.)

$

$

Currently unavailable

18

Briggs & Stratton 83335

Camshaft assembly

$

$

Currently unavailable

19

Briggs & Stratton 76350

Crankcase gasket

$

$

Currently unavailable

20

Briggs & Stratton 78699B

Sleeve dowel (12" dia.)

$

$

Currently unavailable

21

Briggs & Stratton 77165B

Cylinder head gasket

$

$

Currently unavailable

22

Briggs & Stratton 78691

Oil pressure spring retainer

$

$

Not available

23

Briggs & Stratton 76367

Oil pressure spring

$

$

Currently unavailable

24

Briggs & Stratton 76362

Pressure relief ball

$

$

Currently unavailable

25

Briggs & Stratton 78692

M5-0.8 x 8mm Screw

$

$

Currently unavailable

26

Briggs & Stratton 78606

M6-1.0 x 12mm Screw

$

$

Currently unavailable

27

Briggs & Stratton 76361

Thrust washer

$

$

Not available

28

Briggs & Stratton 78661

Flanged hex capscrew

$

$

Currently unavailable

29

Briggs & Stratton 83138B

Crankcase cover

$

$

Currently unavailable

30

Briggs & Stratton 77157

Valve spring retainer

$

$

Currently unavailable

31

Briggs & Stratton 76398

Valve spring

$

$

Currently unavailable

32

Briggs & Stratton 78633

10" dia. x 20" dowel pin

$

$

Currently unavailable

33

Briggs & Stratton 83152

Inner gerotor

$

$

Currently unavailable

34

Briggs & Stratton 76381

Connecting rod

$

$

Currently unavailable

35

Briggs & Stratton 78659

Governor arm washer

$

$

Not available

36

Briggs & Stratton 78623

Cylinder head with valve seats and guides

$

$

Currently unavailable

37

Briggs & Stratton 73121

Exhaust valve

$

$

Currently unavailable

38

Briggs & Stratton 73120

Intake valve

$17.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 76392

Push rod

$

$

Currently unavailable

40

Briggs & Stratton 83235

Tappet

$

$

Currently unavailable

41

Briggs & Stratton 80336

Oil pickup assembly

$

$

Not available

42

Briggs & Stratton 77167

Rocker cover gasket

$

$

Currently unavailable

43

Briggs & Stratton 77161

Pivot ball stud

$

$

Currently unavailable

44

Briggs & Stratton 77160

Rocker arm

$

$

Currently unavailable

45

Briggs & Stratton 76307

Jam nut

Note: (Rocker arm)

$

$

Currently unavailable

46

Briggs & Stratton 77162

Push rod guide plate

$

$

Currently unavailable

47

Briggs & Stratton 77168

M8 x 50mm Head bolt

$

$

Currently unavailable

48

Briggs & Stratton 81690

Rocker cover breather assm.

$

$

Currently unavailable

49

Briggs & Stratton 76329

Oil fill plug

$

$

Not available

50

Briggs & Stratton 72657

1/4" NPT Pipe plug
(Superseded to 7072657YP)

$64.99

$

In Stock, only 3 left!

0

51

Briggs & Stratton 83153

Outer gerotor - 6/5

$

$

Currently unavailable

52

Briggs & Stratton 83238

Oil fill plug gasket

$

$

Currently unavailable

53

Briggs & Stratton 84186

Valve spring washer

$

$

Currently unavailable

54

Briggs & Stratton 88155

Valve stem seal

$

$

Currently unavailable
